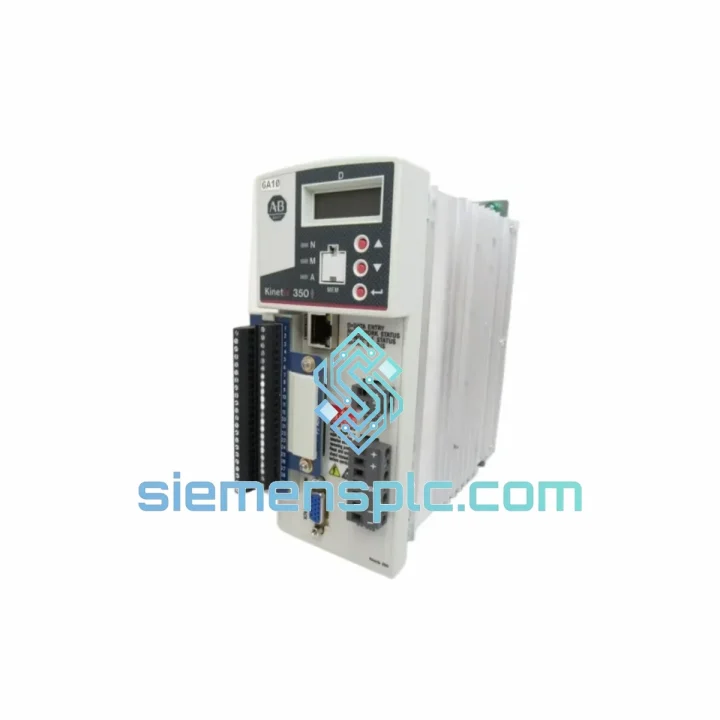

Allen-Bradley 2097-V33PR1 Indexing Servo Drive

2097-V33PR1 Down? Every Minute Costs You — Get It Back Online Fast

A failed Kinetix 300 indexing drive doesn’t just stop one axis — it halts the entire machine, backs up the line, and starts burning through your OEE budget in real time. The 2097-V33PR1 is a single-phase, standalone indexing servo drive. When it fails, there is no workaround. You need an exact replacement, configured correctly, on your floor today.

We stock the Allen-Bradley 2097-V33PR1 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and arrive at your facility within 3–5 business days. For Asia-Pacific destinations, next-day delivery is achievable.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 2097-V33PR1 has a well-documented failure pattern in the field. Before you pull the drive, confirm the fault is actually in the drive and not upstream. Here is the sequence I run on every Kinetix 300 callout:

Step 1 — Read the fault code first. The seven-segment display on the front panel cycles through a two-digit fault code. The most common codes in the field:

• F01 / F02 — Overcurrent or short circuit. Check motor power cable insulation resistance to ground before installing the replacement. A shorted cable will kill a new drive within seconds of enabling.
• F05 — DC bus overvoltage. Usually caused by a high-inertia load decelerating too fast with no external shunt. If the original drive failed during decel, add a 2097-R6 shunt resistor to the replacement installation — otherwise you will be back here in three months.
• F07 — Motor feedback loss. Before condemning the drive, swap the feedback cable and check the encoder connector pins for corrosion or bent contacts. A bad cable kills the feedback signal and throws this fault on a perfectly healthy drive.
• F13 — Drive overtemperature. Inspect the cabinet ventilation. The 2097-V33PR1 requires 50 mm clearance above and below. Blocked airflow in a sealed enclosure during summer will push junction temperatures past the limit.
• F21 — EtherNet/IP communication loss. This is a network fault, not a drive fault. Check the IP address assignment and subnet mask in Kinetix 300 Motion Control Workbench before replacing hardware.

Step 2 — Replacement procedure. Power down and lock out the cabinet. Wait a minimum of 5 minutes after power removal before touching the DC bus terminals — the internal capacitors hold lethal voltage. Photograph the existing wiring before disconnecting anything. The 2097-V33PR1 uses a plug-in terminal block design; the motor power, feedback, and I/O connectors all pull out cleanly. Label each connector with tape before removal.

Step 3 — Configuration after swap. The 2097-V33PR1 does not store motion profiles on a removable memory card. All 32 indexing profiles live in the drive’s internal non-volatile memory. This means a replacement drive arrives blank — you must reload your motion profiles via Kinetix 300 Motion Control Workbench before the machine will run. If your maintenance team does not have the project file backed up, you will need to re-enter every profile manually. Keep a USB backup of your Workbench project file on the machine’s documentation panel — this is non-negotiable.

Step 4 — Motor matching check. Verify the replacement drive’s continuous current rating (3.0 A RMS) matches or exceeds your motor’s nameplate continuous stall current. Running an undersized drive on an oversized motor is the single most common cause of repeat drive failures in indexing applications.

Step 5 — First enable. Before enabling the drive under load, jog the axis slowly in both directions and confirm the position feedback is incrementing in the correct direction. A reversed feedback polarity causes the drive to run away at full speed — a dangerous condition on any machine with mechanical hard stops.

Reliability in Harsh Conditions

The Kinetix 300 platform was engineered for industrial panel environments, not laboratory conditions. The 2097-V33PR1 is routinely deployed in applications where ambient conditions would disqualify lesser drives:

Vibration. The drive’s internal PCB assemblies are conformally coated and mechanically secured to withstand the continuous vibration present in press rooms, stamping lines, and mobile equipment. Connector retention is designed to IEC 60068-2-6 vibration test standards. In high-vibration installations, apply thread-locking compound to the DIN rail mounting screws and inspect connector seating annually.

Temperature cycling. Packaging and food processing lines often see wide temperature swings between production runs and washdown periods. The 2097-V33PR1’s 0–50 °C operating range covers most panel environments, but the real enemy is condensation during rapid cooldown. If your cabinet is subject to temperature cycling, install a cabinet heater with thermostat to keep the internal temperature above the dew point during idle periods. A failed drive caused by condensation corrosion is not a warranty claim — it is a preventable maintenance failure.

Electrical noise. Servo drives are both generators and victims of electrical noise. The 2097-V33PR1 requires the 2097-F3 AC line filter on the input side for CE compliance and for practical noise immunity in environments with VFDs, contactors, and welding equipment on the same bus. Skipping the line filter to save panel space is a false economy — the resulting nuisance faults and premature drive failures cost far more than the filter.

Humidity. The IP20 enclosure rating means the drive relies entirely on the panel enclosure for protection against moisture. In coastal, tropical, or high-humidity environments, specify a minimum IP54 panel enclosure and install desiccant packs. Inspect the panel door gasket annually — a degraded gasket is the most common entry point for moisture in field installations.

Global Express Logistics

Our Xiamen warehouse operates Monday through Saturday. Orders confirmed before 14:00 CST ship same day. Here is the standard logistics flow for an urgent 2097-V33PR1 replacement:

• Order confirmation — You contact us via email or WhatsApp with your shipping address and required delivery date. We confirm stock availability and provide a proforma invoice within 2 hours during business hours.
• Payment & export documentation — We prepare the commercial invoice, packing list, and certificate of origin. HS code 8537.10 applies to this product for most jurisdictions. We handle all export customs clearance from China.
• DHL Express / FedEx International Priority — Typical transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 4–5 days, Middle East 3–4 days, Australia 3–4 days. We provide the tracking number within 4 hours of shipment.
• Import customs — We provide all required documentation for import clearance. For customers in the EU, we can declare under DAP (Delivered At Place) terms so your local customs broker handles import duties. For customers in the US, we recommend using your own customs broker for fastest clearance.
• Packaging — The 2097-V33PR1 ships in anti-static bag, foam-lined inner box, and double-wall corrugated outer carton. Gross shipping weight approximately 2.0 kg. Dimensions suitable for express courier without dimensional weight surcharge.

We have shipped Kinetix 300 drives to automotive plants in Germany, food processing facilities in Australia, semiconductor fabs in Taiwan, and oil & gas installations in the Middle East. Customs documentation is handled correctly every time — no delays, no surprises.
