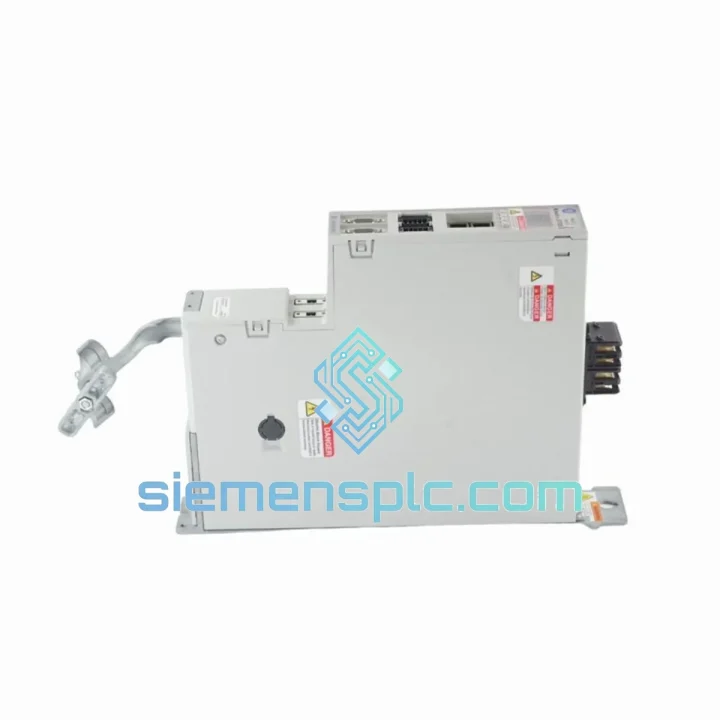

Allen-Bradley 2198-D006-ERS3 Servo Drive Module

2198-D006-ERS3 Down? Every Minute of Downtime Costs You — We Ship Today

A failed dual-axis servo drive doesn’t just stop one machine — it halts an entire production cell. The Allen-Bradley 2198-D006-ERS3 is a shared-DC-bus dual-axis module; when it trips and won’t recover, your CNC line, packaging machine, or robotic cell goes dark. We stock this unit in Xiamen and dispatch same-day via DHL Express or FedEx International Priority. Most customers in Southeast Asia, Europe, and the Middle East receive their replacement within 48–72 hours of order confirmation.

Stop calculating lost output. Get the part moving now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Kinetix 5700 systems, these are the failure patterns and swap pitfalls that actually matter:

Common Fault Codes Before Module Failure

• Fault 13 — DC Bus Undervoltage: Often the first sign the module’s internal bus capacitors are degrading. If the power supply checks out and the fault persists across a cold restart, the drive itself is the culprit.
• Fault 71 / 72 — Axis 1 / Axis 2 Overcurrent: Can indicate a shorted motor winding, but if both axes fault simultaneously with no motor-side anomaly, suspect the drive’s output stage. Swap the motor cables to a known-good drive to isolate.
• Fault 33 — Feedback Loss: Before condemning the drive, reseat the Hiperface DSL connector and check the cable shield continuity. If the fault follows the module to a test bench, the feedback receiver circuit is gone.
• Fault 16 — Drive Overtemperature: Check the cabinet cooling first. If ambient is within spec and the module still overtemps within minutes of energization, the internal thermal sensor or power stage is failing.
• Non-recoverable E-Stop / STO Latch: ERS3 safety functions are hardware-latched. A module that won’t release STO after a confirmed safe state at the controller is a sign the safety ASIC has faulted internally — replace the module.

Replacement Procedure — Field Checklist

• De-energize the DC bus and wait a minimum of 5 minutes for bus capacitors to discharge below 50 VDC. Verify with a meter — do not rely on the indicator LED alone.
• Record the existing module’s firmware revision from Studio 5000 before removal. The replacement unit must run the same firmware or a compatible later revision. Mismatched firmware between the drive and the controller’s motion database causes Fault 77 (Drive Incompatible) on first connection.
• Note the axis address assignment. In a shared-bus system, the 2198-D006-ERS3 uses automatic node addressing based on physical slot position on the bus rail. Confirm the replacement occupies the identical slot — do not rearrange modules during a hot swap.
• After mechanical installation, perform a Drive Self-Test from the Axis Properties dialog in Studio 5000 before enabling motion. This validates the output bridge and feedback receiver without spinning the motor.
• Re-run the Motor Feedback Test (MFT) for both axes. Absolute encoder battery-backed position data is stored in the motor, not the drive — but the drive must re-establish the feedback handshake after replacement.
• If the system uses integrated safety (STO/SS1 over EtherNet/IP), re-validate the safety signature in the GuardLogix project after the drive swap. A changed safety device triggers a signature mismatch that prevents the safety task from running.

Reliability in Harsh Conditions

Industrial environments don’t forgive weak hardware. The 2198-D006-ERS3 is built to operate where most electronics would fail within months:

• Vibration Resistance: Designed to IEC 60068-2-6 sinusoidal vibration profiles — the module withstands the continuous mechanical shock common in press lines, stamping cells, and mobile equipment enclosures. The bus rail connector system uses positive-locking contacts that maintain impedance under sustained vibration.
• Thermal Cycling: The power stage is rated for 0–50 °C ambient with internal thermal management that compensates for load-dependent heat generation. Units that have been in service for 5+ years in high-cycle applications typically show no derating until the electrolytic capacitors approach end-of-life — usually flagged by increasing DC bus ripple before any hard fault.
• Humidity and Contamination: IP20 enclosure rating means the module relies on the cabinet for environmental protection. In high-humidity environments (coastal plants, food processing), ensure the cabinet maintains positive pressure with filtered, conditioned air. Conformal coating on the PCB provides secondary protection against condensation.
• EMI Immunity: The ERS3 communication interface is designed to EN 61800-3 Category C2 EMC requirements. In practice, this means the drive maintains stable EtherNet/IP communication in the presence of VFD switching noise, welding equipment, and high-current bus bars — provided the cable shielding and grounding practices in the Kinetix 5700 installation manual are followed.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Here is exactly how your order moves:

• Order Confirmation → Same-Day Packing: Orders confirmed before 15:00 CST are packed, ESD-bagged, and foam-crated the same afternoon. Each unit ships with a commercial invoice, packing list, and certificate of origin for customs clearance.
• DHL Express Worldwide: Transit time 1–3 business days to most of Europe, Middle East, and Southeast Asia. Real-time tracking from Xiamen to your door.
• FedEx International Priority: Alternative carrier for North America and regions where FedEx has stronger last-mile coverage. Typical transit 2–4 business days.
• Export Classification: The 2198-D006-ERS3 ships under HS Code 8537.10 (industrial control panels/servo drives). We prepare all export documentation in-house — no delays waiting for freight forwarder paperwork.
• Packaging Standard: Anti-static ESD bag → bubble wrap → foam-lined double-wall carton. Humidity indicator card included. The module arrives in the same condition it left our warehouse.
• Emergency Freight: For critical shutdowns, contact us directly via WhatsApp for charter freight or hand-carry options to your site.
