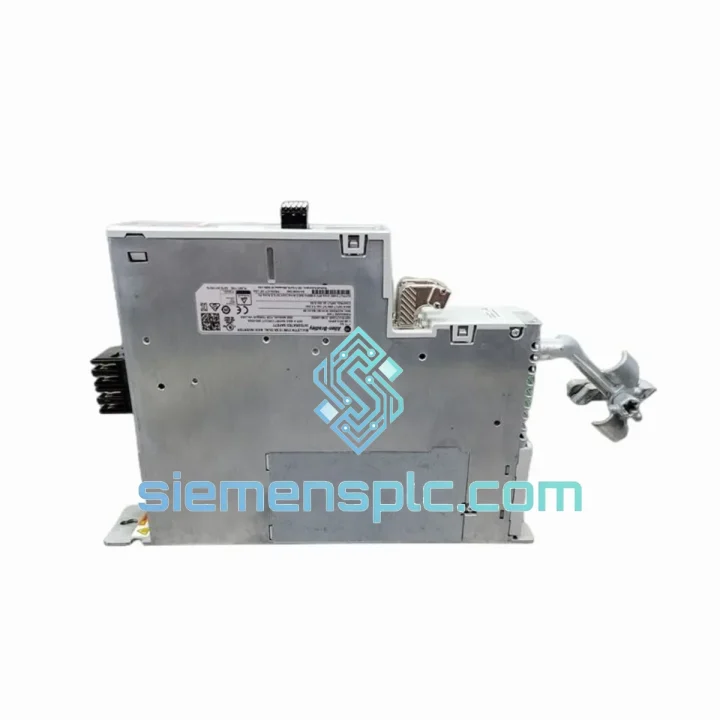

Allen-Bradley 2198-D012-ERS3 Servo Drive – Kinetix 5700

Allen-Bradley 2198-D012-ERS3: Dual-Axis Servo Drive in Shared DC Bus Architecture

The 2198-D012-ERS3 is a dual-axis inverter module within the Kinetix 5700 servo drive family, engineered by Rockwell Automation for high-density, multi-axis motion control applications. Operating on a shared DC bus topology, this module draws regulated DC power from a centralized 2198-Pxxx bus power supply rather than rectifying AC independently per axis — a design decision that directly reduces harmonic distortion on the supply network and enables kinetic energy regeneration between axes during deceleration events.

Each axis delivers a continuous output current of 12 A RMS with a peak rating suited to high-inertia load acceleration profiles. The drive accepts feedback from single-turn and multi-turn absolute encoders via the 2090-CFBM7DF-CEAFxx cable interface, eliminating the need for homing sequences on power restoration — a measurable advantage in applications where machine restart time directly impacts throughput. The ERS3 firmware variant enables integrated functional safety via the Safe Torque Off (STO) function, rated SIL 2 per IEC 62061 and PLd per ISO 13849-1, without requiring external safety contactors in the motor circuit.

Communication is handled exclusively over EtherNet/IP using the CIP Motion protocol stack. The drive synchronizes to the controller’s Coordinated System Time (CST) via IEEE 1588 Precision Time Protocol (PTP), achieving axis-to-axis synchronization jitter below 1 µs under normal network load conditions. This deterministic timing characteristic is fundamental to applications requiring electronic gearing, cam profiling, or synchronized multi-axis interpolation.

The 2198-D012-ERS3 is compatible with ControlLogix 5580 and CompactLogix 5380 controllers running Studio 5000 Logix Designer v28.011 or later. Motion configuration, axis tuning, and diagnostic data are all managed within the Logix Designer environment, with no proprietary drive-level software required. The Automatic Device Configuration (ADC) feature allows the controller to push drive parameters automatically upon detection of a replacement module, reducing commissioning time after a field swap to under five minutes in a pre-configured system.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The shared DC bus architecture of the Kinetix 5700 platform fundamentally changes the power flow model compared to standalone servo drives. In a conventional drive, each axis independently rectifies AC mains voltage, stores energy in a local DC link capacitor bank, and dissipates regenerated energy through a braking resistor. The 2198-D012-ERS3 eliminates this per-axis rectification stage entirely. The DC bus is maintained by the centralized 2198-Pxxx power supply, and regenerated energy from decelerating axes flows back onto the shared bus where it is immediately available to accelerating axes. This inter-axis energy exchange reduces net power draw from the supply and lowers thermal load on the cabinet — a measurable benefit in high-cycle applications such as packaging lines or press-feed systems.

The EMC design of the 2198-D012-ERS3 addresses conducted and radiated emissions through several hardware-level mechanisms. The PWM switching frequency is managed to minimize harmonic content in the motor cable, and the drive’s internal common-mode choke suppresses high-frequency noise propagation along the DC bus rail. The module’s grounding architecture follows a star-point topology referenced to the bus power supply chassis, which is the recommended practice for minimizing ground loop currents in multi-axis installations. Shielded motor cables terminated at both ends to the drive chassis and motor frame are required to maintain CE compliance under EN 61800-3 Category C2.

The STO circuit in the ERS3 variant is implemented as a dual-channel hardware interlock that removes gate drive signals from both output bridge transistors simultaneously. This architecture satisfies the requirement for a single-fault-tolerant safety function without relying on firmware execution — the STO state is maintained even if the drive’s main processor faults. The STO input accepts 24 VDC signals from a safety relay or safety PLC output, and the drive provides STO feedback signals for diagnostic monitoring by the safety controller.

Axis synchronization is achieved through the CIP Sync time distribution mechanism. The controller acts as the IEEE 1588 grandmaster clock, and each 2198-D012-ERS3 module operates as a slave clock, adjusting its local timebase to align with the controller’s Coordinated System Time. The resulting synchronization accuracy — typically sub-microsecond — enables the controller to issue time-stamped motion commands that all axes execute simultaneously, regardless of network propagation delay variations.

System Integration Benefits

• Unified commissioning environment: All axis parameters, tuning coefficients, and safety configurations are stored in the Logix Designer project file. A replacement drive module is automatically configured via ADC without manual parameter entry at the drive level.
• Deterministic real-time response: CIP Motion over EtherNet/IP with IEEE 1588 PTP delivers axis update rates as fast as 250 µs, supporting high-bandwidth torque and velocity loops without dedicated motion network hardware.
• Diagnostic transparency: The drive reports axis-level fault codes, bus voltage, output current, encoder status, and thermal margin directly to the controller tag database, accessible in real time via Studio 5000 or any OPC-UA client connected to the controller.
• Reduced panel footprint: Two servo axes in a single module width reduces the number of drive slots required in the Kinetix 5700 bus bar assembly, directly decreasing enclosure size and wiring density.
• Energy efficiency via bus sharing: Regenerated energy from decelerating axes is redistributed to accelerating axes on the same DC bus, reducing net energy consumption and eliminating the need for braking resistors in balanced load profiles.
• Integrated functional safety without external hardware: STO rated SIL 2 / PLd is implemented in hardware within the drive module, removing the need for external safety contactors and simplifying the safety circuit validation process.
• Absolute encoder support eliminates homing: Multi-turn absolute position data is retained across power cycles, enabling immediate production restart without axis homing routines — reducing machine downtime after planned or unplanned shutdowns.
• Scalable multi-axis architecture: Multiple 2198-D012-ERS3 modules connect to the same DC bus bar, allowing system designers to scale from 2 to 16+ axes within a single Kinetix 5700 bus assembly without changing the power supply or controller infrastructure.

Quality Assurance & Global Logistics

Every 2198-D012-ERS3 unit supplied by siemensplc.com is sourced as genuine Allen-Bradley / Rockwell Automation product through verified industrial supply channels. Units are inspected upon receipt for label authenticity, housing integrity, connector condition, and counterfeit indicators. Where stock permits, functional verification is performed prior to dispatch.

Shipments originate from our warehouse in Xiamen, China. Xiamen’s port infrastructure and proximity to major international freight hubs enables consistent transit times: DHL Express and FedEx International Priority typically deliver to Europe and North America within 3–5 business days, and to Southeast Asia within 1–3 business days. Sea freight consolidation is available for volume orders requiring cost-optimized logistics. All shipments include a commercial invoice, packing list, and certificate of origin. HS Code 8537.10 applies for customs classification. Export documentation is prepared in compliance with destination country import requirements.

A 12-month warranty covers manufacturing defects attributable to the unit. Warranty claims are processed with pre-shipment inspection records and, where applicable, functional test data provided at the time of sale. Units are packed in anti-static foam with tamper-evident outer packaging to ensure arrival condition matches dispatch condition.
