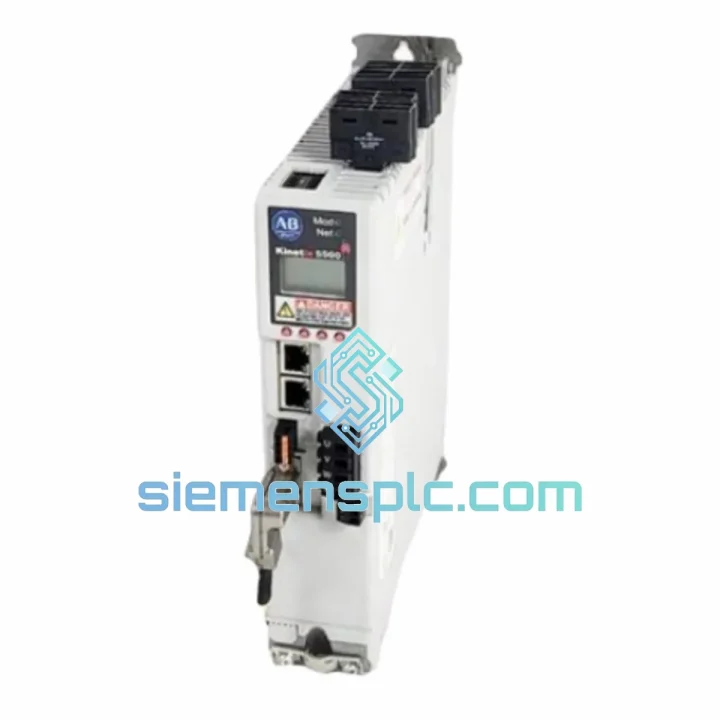

Allen-Bradley 2198-D032-ERS4 Servo Drive – Kinetix 5500

Allen-Bradley 2198-D032-ERS4 — 32 A Kinetix 5500 EtherNet/IP Servo Drive in a Single-Cable Architecture

The 2198-D032-ERS4 is a single-axis servo drive within Rockwell Automation’s Kinetix 5500 family, rated at 32 A continuous output current and designed to operate natively over EtherNet/IP using the CIP Motion protocol. Unlike legacy motion networks that require dedicated fieldbus wiring, this drive participates in the same standard Ethernet infrastructure used for supervisory data, eliminating a separate motion network layer and the associated hardware overhead. Its defining hardware feature is the ERS4 single-cable interface, which carries both motor power and HIPERFACE DSL digital feedback on a single shielded cable run — a measurable reduction in panel wiring density and connector count.

In a Kinetix 5500 shared DC bus configuration, the 2198-D032-ERS4 draws rectified DC from a common bus power supply rather than maintaining its own AC-to-DC conversion stage. This topology allows kinetic energy recovered during motor deceleration on one axis to be redistributed across the bus to axes that are simultaneously accelerating, reducing net energy drawn from the AC supply. The drive’s current loop executes at high bandwidth internally, with position and velocity references delivered from the Logix controller at the configured RPI (typically 1–4 ms), maintaining deterministic closed-loop performance across multi-axis coordinated motion sequences.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 2198-D032-ERS4 integrates several hardware design decisions that directly affect reliability and commissioning effort in industrial panel environments.

ERS4 Single-Cable Feedback Architecture: HIPERFACE DSL encodes absolute multi-turn position data digitally on the motor power cable shield, using a superimposed low-voltage differential signal. This eliminates the separate feedback cable and its associated connectors, reducing the number of potential failure points in the wiring harness. The DSL protocol operates at 9.375 Mbit/s, providing position resolution equivalent to traditional multi-turn absolute encoders without a dedicated cable pair. In high-axis-count panels, this translates to a measurable reduction in cable tray fill and termination labor.

Integrated Dual-Port Ethernet Switch: The on-board managed switch allows daisy-chain wiring between drives without external Ethernet switches. Each port operates at 100 Mbit/s full-duplex. The switch supports Device Level Ring (DLR) protocol, enabling ring topology with sub-3 ms fault recovery — the network reconfigures automatically upon a single cable break without controller intervention, maintaining motion continuity on unaffected axes.

EMC Design and Shielding: The drive’s power stage uses IGBT switching with integrated gate drive circuitry designed to minimize dV/dt on motor cable outputs. Common-mode choke filtering on the DC bus input attenuates high-frequency conducted emissions. The chassis is designed for direct bonding to the panel earth bar, with dedicated PE terminals rated for the full fault current path. This construction supports compliance with EN 61800-3 Category C2 without external line reactors in most installations when using Rockwell-specified cable assemblies.

Safe Torque Off (STO) Hardware Path: The STO circuit is implemented as a dual-channel hardwired path (STO_A, STO_B) that directly gates the IGBT driver supply, independent of the microprocessor and communication stack. Loss of either channel de-energizes the gate drive within the SIL 2 response time (≤ 20 ms), removing torque from the motor without requiring a software command. This architecture satisfies the requirements of IEC 62061 SIL 2 and ISO 13849-1 PLd Category 3 for machinery safety applications.

Shared DC Bus Energy Exchange: When multiple 2198-D032-ERS4 drives share a common DC bus, the bus capacitance acts as an energy buffer. Deceleration energy from one axis charges the bus; an accelerating axis draws from it. The bus voltage regulator in the power supply module clamps the bus within operating limits, and the dynamic brake module (2198-DBXX-F) dissipates excess energy only when the bus voltage exceeds the clamp threshold. This reduces the RMS current demand on the AC supply and lowers heat dissipation in the panel.

System Integration Benefits

• Deterministic CIP Motion Synchronization: The drive synchronizes its internal clock to the Logix controller via IEEE 1588 Precision Time Protocol (PTP), achieving axis-to-axis synchronization error below 1 µs across a multi-drive EtherNet/IP network — a prerequisite for electronic gearing and cam profiling applications.
• Native Add-On Profile (AOP) in Studio 5000: The Kinetix 5500 AOP auto-populates axis tags, drive parameters, and motion task templates upon device discovery. Engineers configure velocity limits, torque limits, and feedback scaling within the Logix environment without a separate drive configuration tool, reducing commissioning time and eliminating configuration file management across two software platforms.
• Integrated Diagnostic Transparency: Drive fault codes, axis state, actual current, bus voltage, and feedback position are all accessible as standard Logix axis tags. SCADA and HMI systems can read these values over the same EtherNet/IP network without additional instrumentation, enabling real-time condition monitoring without extra hardware.
• Scalable Axis Count: Adding axes to a Kinetix 5500 system requires only an additional drive module on the shared bus rail and a new axis object in the Logix program. No additional network hardware, motion controllers, or license keys are required for standard axis counts within the controller’s motion task capacity.
• Single-Cable Motor Wiring: The ERS4 interface reduces per-axis wiring to one power/feedback cable and one 24 V DC I/O cable. In a 10-axis panel, this eliminates 10 separate feedback cable runs and 20 feedback connector terminations compared to traditional dual-cable servo wiring.
• Ring Topology Fault Resilience: DLR ring wiring provides network redundancy without a managed Ethernet switch. A single cable fault does not interrupt communication to any drive on the ring, maintaining motion control continuity during cable maintenance or accidental damage.
• Hardwired Safety Without External Relays: The integrated STO function eliminates the external safety relay module typically required for IEC 62061 SIL 2 compliance in single-axis applications, reducing panel component count, wiring complexity, and BOM cost.
• Regenerative Energy Recovery: Shared DC bus architecture recovers deceleration energy across axes, reducing net AC power consumption in multi-axis systems with frequent acceleration/deceleration cycles — measurable in high-throughput packaging and press-feed applications running at sustained cycle rates.
• Firmware-Consistent Fleet Management: Studio 5000 tracks drive firmware versions as part of the project file. Firmware updates are applied through the Logix environment, ensuring all drives in a system run consistent firmware without manual drive-by-drive update procedures.

Quality Assurance & Global Logistics

Every 2198-D032-ERS4 unit supplied by siemensplc.com is sourced as genuine Allen-Bradley / Rockwell Automation product. Units are inspected against Rockwell’s published catalog specifications prior to dispatch, covering label authenticity, connector integrity, and housing condition. Where applicable, functional power-on verification confirms fault-free initialization before packaging.

Shipments originate from our warehouse in Xiamen, China. Standard export documentation — commercial invoice, packing list, and HS code classification — is prepared for every international order to support customs clearance in the destination country. Preferred carriers include DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to major industrial hubs in Europe, Southeast Asia, the Middle East, and the Americas. Sea freight consolidation is available for pallet-quantity orders. All units are packed in anti-static ESD bags with foam-lined cartons and humidity indicator cards for long-haul freight.

A 12-month warranty covers manufacturing defects and premature component failure under normal operating conditions as defined in Rockwell Automation’s published product warranty terms. RMA processing is handled directly through siemensplc.com with a target response time of one business day.
