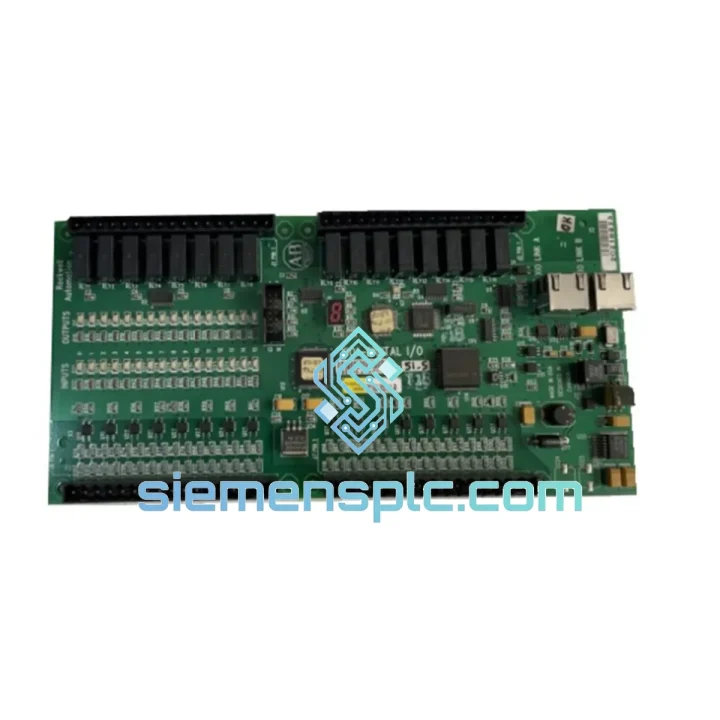

Allen-Bradley 80190-300-01-R XIO Board Assembly

Allen-Bradley 80190-300-01-R XIO Board Assembly – Stop the Clock on Your Downtime

Your line is down. The XIO board in your Rockwell Automation chassis has failed, and every minute the conveyor sits idle is money bleeding out of your operation. The Allen-Bradley 80190-300-01-R Packaged Customer XIO Board Assembly is physically in stock at our Xiamen warehouse right now. We don’t broker, we don’t drop-ship — we pull it off the shelf, run a pre-dispatch check, and hand it to DHL or FedEx the same day you confirm. That’s the difference between a 4-hour fix and a 4-day wait.

The 80190-300-01-R is a factory-packaged XIO (eXtended I/O) board assembly within the Rockwell Automation control ecosystem. It sits at the backplane interface layer, handling deterministic I/O signal arbitration between the controller CPU and field-level devices. The “-R” engineering revision suffix is not cosmetic — it locks the board into a specific qualified component list (QCL) revision, which matters when your system integrator or OEM has a controlled BOM. Swapping in the wrong revision can trigger firmware handshake errors or cause the chassis to reject the module entirely. We stock the correct revision. Confirm your system’s QCL before ordering if you’re unsure — our engineers will cross-check it for you at no charge.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 80190-300-01-R fails in predictable ways. Here’s what you’ll see on the floor and how to deal with it fast:

Symptom 1 — Chassis Fault / Module Not Recognized: The controller’s I/O tree shows the XIO slot as faulted or absent. Before pulling the board, cycle chassis power and check the backplane connector pins for corrosion or bent contacts. If the fault persists after reseating, the board’s backplane transceiver circuit has likely failed — common after sustained vibration or a voltage spike on the I/O bus.

Symptom 2 — Intermittent I/O Loss: Field signals drop out randomly, especially during high-cycle operations. This points to solder joint fatigue on the board’s edge connector or a failing decoupling capacitor on the I/O power rail. Intermittent faults are harder to catch but easier to confirm: swap the board and monitor for 30 minutes under load. If the fault disappears, the original board is the culprit.

Symptom 3 — Revision Mismatch Error: After installing a replacement, the controller logs a configuration mismatch fault. This happens when the replacement board’s revision doesn’t match the project’s I/O configuration file. Resolution: open RSLogix 5000 / Studio 5000, navigate to the I/O tree, right-click the faulted module, and select Change Module to update the revision reference. Save and download the updated project. Always back up the existing project file before making changes.

Replacement Procedure (field-verified):

1. Place the controller in Program mode. Confirm all field outputs are in a safe state before proceeding.
2. De-energize the chassis. Lock out / tag out per your site LOTO procedure.
3. Photograph the existing wiring and module position before removal.
4. Remove the faulted 80190-300-01-R by releasing the top and bottom locking tabs and pulling straight out from the backplane slot.
5. Inspect the backplane connector on the chassis for damage. Clean with isopropyl alcohol if contaminated.
6. Insert the replacement board firmly until both locking tabs click. Do not force — misalignment will damage the backplane connector.
7. Re-energize the chassis. Confirm the module LED status: solid green = healthy, flashing red = configuration fault (see Symptom 3 above).
8. Return the controller to Run mode. Verify all I/O points in the HMI or SCADA system before releasing the line.

Reliability in Harsh Conditions

Industrial environments don’t forgive weak hardware. The 80190-300-01-R is built to the same mechanical and electrical standards as the broader Rockwell Automation XIO platform, which means it’s been validated against the conditions that kill lesser boards.

Vibration: The board assembly uses through-hole and surface-mount components selected for mechanical resilience. In high-vibration environments — press lines, compressor rooms, mobile equipment — the factory-packaged assembly maintains connector integrity where hand-assembled boards fail at solder joints within months.

Thermal Cycling: Industrial control cabinets routinely swing between cold startup temperatures and sustained operating heat. The PCB substrate and component selection on the 80190-300-01-R are rated for the thermal expansion cycles inherent to 24/7 manufacturing operations. Conformal coating on the PCB surface provides an additional barrier against condensation during cold startups in humid climates.

Electrical Noise: XIO backplane environments carry mixed-voltage signals in close proximity. The board’s onboard filtering and isolation circuitry suppresses common-mode noise from adjacent high-current I/O modules, preventing false triggering of digital inputs — a failure mode that’s notoriously difficult to diagnose without an oscilloscope.

Storage Integrity: Our warehouse maintains ESD-controlled, climate-stable storage conditions. Every unit is sealed in anti-static packaging with desiccant. Boards that have been stored improperly — even in original packaging — can develop oxide layers on connector contacts that cause intermittent faults from day one. Ours don’t.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Here’s exactly how your order moves:

Day 0 (Order Confirmed): Payment confirmed before 15:00 CST triggers same-day pre-dispatch inspection. The board is pulled from ESD storage, visually inspected, photographed, and packed in double-wall carton with foam cushioning and anti-static inner bag.

Day 0–1 (Export Documentation): Commercial invoice, packing list, and certificate of origin are prepared. For customers requiring additional customs documentation (EUR.1, Form A, or specific HS code declarations), these are prepared in parallel — no delays.

Day 1 (Carrier Handoff): Shipment handed to DHL Express or FedEx International Priority, depending on destination and customer preference. Tracking number issued to customer within 2 hours of carrier pickup.

Transit Times (estimated):

• Southeast Asia: 2–3 business days
• Europe (major hubs): 3–5 business days
• North America: 3–5 business days
• Middle East / South Asia: 4–6 business days
• South America / Africa: 5–8 business days

For genuine emergencies — line-down situations where hours matter — contact us directly on WhatsApp before placing the order. We can coordinate with the carrier for priority handling and provide a realistic delivery commitment based on your specific location and the current flight schedule out of Xiamen.
