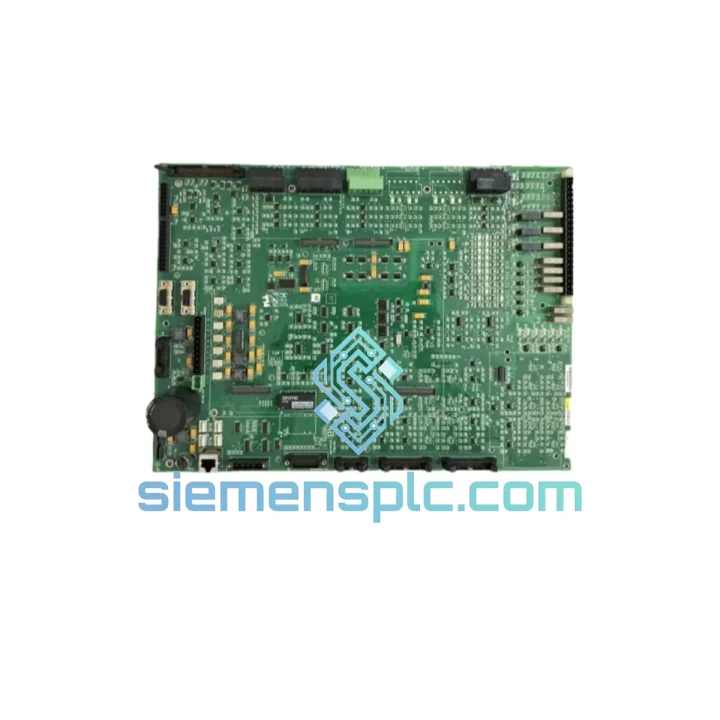

Allen-Bradley 80190-440-02-R Interface Board – 80190 Series

Allen-Bradley 80190-440-02-R: Backplane Interface Board for 80190 Series PLC Control Architectures

The Allen-Bradley 80190-440-02-R is a dedicated interface board engineered for signal routing and I/O communication within the 80190 Series chassis environment. Positioned between field-side wiring terminations and the controller backplane, this board performs the critical function of translating discrete and analog field signals into backplane-compatible logic levels, maintaining electrical isolation boundaries and ensuring deterministic data transfer across the control loop. Its role is not peripheral — in any 80190 Series rack assembly, the interface board defines the integrity of every I/O transaction between the PLC processor and the physical process.

Unlike generic adapter boards, the 80190-440-02-R carries a revision-specific PCB layout (“-02-R”) that aligns with a defined firmware baseline in the 80190 chassis. Substituting an incorrect revision can introduce timing mismatches at the backplane bus level, resulting in I/O scan faults or intermittent communication errors that are difficult to diagnose without oscilloscope-level analysis. This makes sourcing the exact revision essential for MRO and spare-parts management in regulated or high-availability environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 80190-440-02-R employs a layered hardware architecture that addresses three primary engineering concerns in industrial I/O design: galvanic isolation, signal conditioning, and backplane timing integrity.

Optocoupler Isolation Architecture: Each discrete input channel passes through a dedicated optocoupler stage, providing a minimum 500V galvanic isolation barrier between field wiring and the logic-side PCB traces. This prevents ground loop currents — common in large industrial installations where field devices may share grounding with high-current motor drives — from corrupting logic-level signals or damaging the backplane bus. The optocoupler response time is matched to the backplane scan cycle, ensuring that signal propagation delay does not introduce false state transitions during high-frequency I/O polling.

EMC Design and Shielding: The PCB layout follows a split-plane strategy: the field-side ground plane is physically separated from the logic-side ground plane, with the isolation boundary running through the optocoupler row. Decoupling capacitors (100nF ceramic, X7R dielectric) are placed at each power entry point to suppress high-frequency conducted emissions from the backplane power rail. The board’s edge connector includes ground guard traces that reduce capacitive coupling between adjacent signal lines, a design measure that becomes significant in high-density I/O racks where crosstalk between channels can cause spurious input reads.

Revision -02-R Backplane Bus Timing: The “-02-R” revision designation reflects a specific set of bus driver timing parameters programmed into the onboard logic. The backplane of the 80190 Series operates as a synchronous parallel bus, where each slot’s interface board must assert data within a defined setup and hold time window relative to the bus clock edge. The -02-R revision’s bus drivers are characterized for this timing window, and the PCB trace lengths from the backplane connector to the bus driver ICs are length-matched to minimize skew. Using a -01-R or -03-R revision in a system configured for -02-R can shift the setup time margin, increasing the probability of metastability events in the backplane arbitration logic under thermal stress conditions.

Conformal Coating and Environmental Hardening: The PCB receives a full conformal coating pass (acrylic or polyurethane, per manufacturing lot) that provides protection against moisture ingress, industrial particulates, and mild chemical vapors. This is particularly relevant in process industry installations where the control cabinet may be located in proximity to chemical dosing equipment or in high-humidity environments such as water treatment facilities.

System Integration Benefits

• Deterministic I/O scan performance: The board’s bus timing compliance ensures that I/O data is presented to the processor within the guaranteed scan window, supporting deterministic ladder logic execution without scan overruns caused by interface latency.
• Zero-modification installation: The keyed backplane edge connector and revision-matched PCB dimensions allow direct slot insertion without mechanical modification, reducing installation time and eliminating the risk of connector damage from forced fitment.
• Fault isolation transparency: The optocoupler isolation stage provides a clear electrical boundary for fault diagnosis. A field-side wiring fault (short circuit, overvoltage) is contained to the field side of the isolation barrier, protecting the backplane bus and processor from damage and simplifying fault localization during maintenance.
• Reduced diagnostic ambiguity: Because the -02-R revision is firmware-matched to the 80190 chassis, the processor’s self-diagnostic routines can accurately interpret module status registers. Revision mismatches can cause the processor to misread module health bits, generating false fault alarms or masking real faults.
• Long-term spare parts alignment: Maintaining the exact revision in the spare parts inventory ensures that replacement modules are functionally identical to installed units, eliminating the need for re-commissioning or firmware update procedures during emergency maintenance.
• Compatibility with RSLogix 5 / RSLogix 500 environments: The module’s I/O addressing structure is recognized natively by RSLogix 5 and RSLogix 500 programming environments, allowing engineers to configure I/O maps without custom driver development or address remapping.
• Support for regulated industry traceability requirements: The module carries manufacturer lot codes and date codes that support full component traceability, a requirement in pharmaceutical, food and beverage, and energy sector installations subject to 21 CFR Part 11 or IEC 61511 compliance audits.
• Conformal coating extends MTBF in harsh environments: The environmental hardening of the PCB directly extends the mean time between failures in installations subject to temperature cycling, humidity, and airborne contaminants, reducing unplanned downtime and maintenance intervention frequency.

Quality Assurance & Global Logistics

Every Allen-Bradley 80190-440-02-R unit supplied by siemensplc.com undergoes a structured incoming inspection protocol before dispatch. Each board is visually inspected for PCB damage, connector pin integrity, and conformal coating coverage. Functional verification is performed using a backplane-compatible test fixture that exercises the I/O channels and confirms bus driver timing compliance. Serial number and date code are cross-referenced against manufacturer records to verify authenticity and exclude counterfeit units — a critical step given the prevalence of remarked components in the secondary market for legacy Allen-Bradley hardware.

Units are packaged in anti-static bags with humidity indicator cards, placed in foam-lined cartons rated for international air freight handling. Export documentation — including commercial invoice, packing list, and certificate of conformance — is prepared for each shipment. Customs HS code classification is handled by our logistics team to minimize clearance delays at destination ports.

Shipments originate from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, and SF Express international services. Standard transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments carry full cargo insurance. A 12-month warranty against manufacturing defects is included with every unit.
