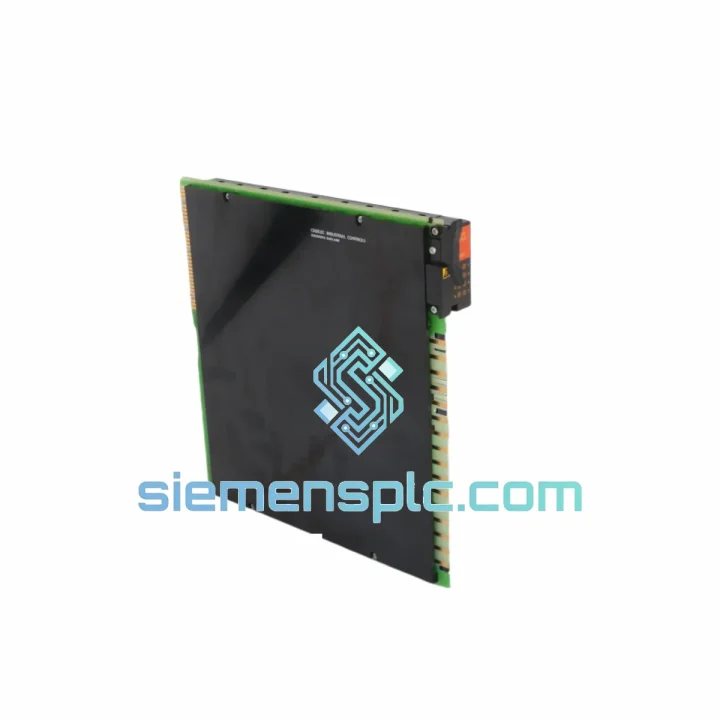

ALSTOM 8143-4002 Digital Output Module

ALSTOM 8143-4002 Digital Output Module — Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. Whether it’s a tripped output channel, a corrupted firmware handshake, or a board-level failure after years of thermal cycling — the ALSTOM 8143-4002 is the exact card you need, and we have it on the shelf right now in Xiamen. No lead-time games, no “check back in 6–8 weeks.” You call, we ship — same day if your order lands before 15:00 CST.

This is a genuine ALSTOM 8143 Series Digital Output Module, the workhorse of legacy DCS and process control racks across power generation, rail traction, and heavy industrial installations worldwide. If your system is throwing DO channel faults or your rack diagnostics are flagging a dead slot, this card is your fastest path back to production.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of 8143 Series field replacements, here are the failure patterns that actually show up on site — and what to watch for when you swap this card:

Common Fault Signatures:

• DO Channel Stuck OFF / No Output: Most frequent cause is internal transistor failure on individual output channels, often triggered by inductive load spikes without adequate suppression. Check your flyback diodes on field-side actuators before installing the replacement — a shorted field device will kill the new card within hours.
• Rack Diagnostics Flagging Slot as “Module Fault”: This usually means the card has lost communication with the backplane controller. Before condemning the module, reseat the card firmly — the 8143 Series edge connectors are notorious for fretting corrosion after years of thermal cycling. If reseating doesn’t clear it, the card is genuinely failed.
• Intermittent Output Chatter: Typically caused by power supply ripple exceeding the module’s tolerance threshold. Measure your 24 VDC rail under load before swapping the card. A marginal PSU will cause the same symptom on the new module.
• Firmware / Configuration Mismatch After Swap: The 8143-4002 uses backplane-based auto-addressing — the slot position determines the logical address. No DIP switch configuration is required for address assignment. However, confirm your DCS controller firmware version supports the 8143-4002 revision level. If you’re running an older controller firmware, a card with a newer hardware revision may require a firmware update on the controller side before the module is recognized correctly.
• Output Channels Energized at Power-Up (Unsafe State): Verify your DCS application logic includes a proper output initialization sequence. The 8143-4002 defaults to all outputs de-energized at power-up, but a misconfigured startup routine in the controller can force outputs high before the safety interlock logic executes.

Replacement Procedure (Field Summary):

1. Isolate the rack slot — confirm field-side loads are de-energized and locked out per your site LOTO procedure.
2. Note the slot number before extraction — this is your logical DO address in the DCS configuration.
3. Extract the failed 8143-4002 by releasing the front-panel locking lever and pulling straight out. Do not rock the card — the backplane connector is fragile on aged racks.
4. Inspect the backplane connector pins for bent contacts or corrosion. Clean with IPA if needed before inserting the replacement.
5. Insert the new 8143-4002 firmly until the locking lever clicks. The card should seat flush with the rack face.
6. Power up the rack and monitor the DCS diagnostic display. The controller should recognize the new module within 10–30 seconds and perform an automatic self-test.
7. Force-test each output channel from the DCS engineering workstation before returning the loop to automatic control.

Reliability in Harsh Conditions

The ALSTOM 8143 Series was engineered for environments that would destroy consumer-grade electronics. The 8143-4002 is built to operate continuously in conditions that most engineers would consider extreme:

• Thermal Endurance: Rated for continuous operation across a wide industrial temperature range. The PCB substrate and component selection account for differential thermal expansion across thousands of heat cycles — the kind of stress that delaminates cheaper boards within two years.
• Vibration Resistance: Designed to IEC 60068-2-6 vibration profiles, making it suitable for installation near rotating machinery, compressors, and turbine control panels where structural vibration is a constant background condition.
• Humidity & Condensation: Conformal coating on the PCB assembly provides protection against humidity ingress and condensation events — critical in coastal industrial facilities, offshore platforms, and tropical climates where humidity swings are severe.
• EMI Immunity: The module’s shielded backplane interface and filtered I/O lines provide inherent immunity to the high-frequency electrical noise generated by VFDs, contactors, and high-current switching equipment sharing the same panel.
• Long-Term Component Stability: ALSTOM specified industrial-grade capacitors and resistors with extended MTBF ratings. Units that have been in service for 15+ years are still failing gracefully rather than catastrophically — a testament to the original design margin.

Every unit we ship from Xiamen is inspected for physical integrity — connector condition, label authenticity, housing integrity — before it leaves our facility. We do not ship units with damaged connectors or questionable provenance.

Global Express Logistics

Downtime doesn’t respect time zones, and neither does our shipping operation. From our Xiamen warehouse, we move parts to every major industrial hub on the planet:

• DHL Express: Xiamen → Europe (Frankfurt, Amsterdam, Rotterdam) in 2–3 business days. Xiamen → North America (Houston, Detroit, Chicago) in 3–4 business days. Xiamen → Middle East (Dubai, Dammam, Doha) in 2–3 business days.
• FedEx International Priority: Available for time-critical shipments where DHL capacity is constrained. Typical transit times match or beat DHL on most lanes.
• Packaging: Anti-static bag → foam-lined inner box → double-wall corrugated outer carton. Every shipment is packed to survive the handling abuse of international express freight.
• Documentation: Commercial invoice, packing list, certificate of origin, and MSDS (where applicable) included with every shipment. We handle export customs clearance from China — you handle import clearance at destination. We can provide HS code documentation to assist your customs broker.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your email.
• Emergency Freight: For genuine production emergencies, contact us via WhatsApp for same-day booking on the next available flight out of Xiamen Gaoqi International Airport.
