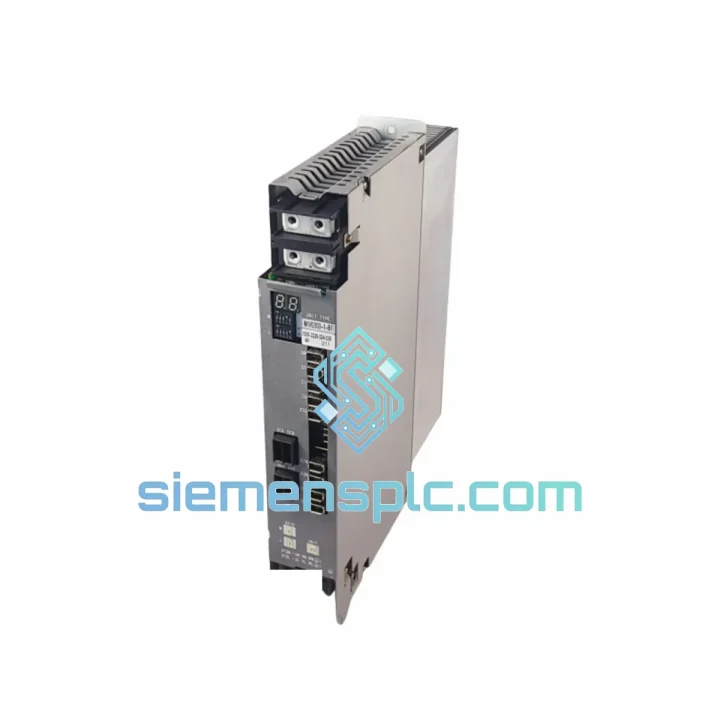

AMK AW 8/16-2 8/16 Servo Drive – AMKASYN Series

AMK AW 8/16-2 8/16 Dual-Axis Servo Drive: Precision Current Control in Modular AMKASYN Architecture

The AMK AW 8/16-2 8/16 is a dual-axis servo amplifier module within AMK’s AMKASYN modular drive system. Each axis delivers 8 A continuous output current with a 16 A peak rating, providing the transient torque headroom required for high-acceleration motion profiles in packaging, CNC, and precision handling equipment. The module occupies a single bookshelf slot in the AMKASYN DC-bus rail, sharing a common intermediate circuit with adjacent power supply units — a topology that eliminates redundant rectifier stages and reduces total cabinet heat dissipation compared to standalone drive architectures.

Unlike general-purpose inverter drives, the AW 8/16-2 8/16 is purpose-designed for closed-loop servo operation. Its internal current regulators operate at a switching frequency matched to AMK’s proprietary AMKASYN bus timing, enabling sub-millisecond torque response without external synchronization hardware. For OEMs building multi-axis gantry systems or electronic camshaft applications, this deterministic current-loop behavior is a prerequisite — not a feature.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The AW 8/16-2 8/16 integrates two independent IGBT half-bridge output stages on a shared PCB substrate, with galvanic isolation between each axis’s gate-drive circuitry and the control logic plane. This isolation architecture prevents a fault on one axis — such as a motor winding short or encoder cable failure — from propagating to the adjacent axis or corrupting the AMKASYN system bus. The gate-drive optocouplers operate with a typical propagation delay of under 500 ns, preserving PWM timing fidelity at the switching frequencies used in high-dynamic servo applications.

EMC performance is addressed at the hardware level through a multi-layer PCB design with dedicated ground planes separating power and signal layers. Differential-mode conducted emissions are attenuated by integrated LC filter networks on the DC bus input, while common-mode chokes on the motor output terminals suppress high-frequency leakage currents that would otherwise couple into cable shields and adjacent sensor wiring. This design approach allows the module to meet EN 61800-3 Category C2 conducted emission limits without requiring an external EMC filter in most standard cabinet configurations.

The module’s current measurement circuit uses closed-loop Hall-effect sensors rather than shunt resistors. Hall sensors provide galvanic isolation between the power bus and the measurement signal path, and their bandwidth — typically flat to 50 kHz — is sufficient to resolve the current ripple components at the PWM switching frequency. This data feeds directly into the digital current regulator, which executes a discrete-time PI algorithm at each PWM carrier cycle. The result is a current-loop bandwidth that supports torque bandwidths in the range of 1–2 kHz, adequate for most servo motion profiles without requiring gain scheduling.

Thermal management relies on the AMKASYN shared cooling infrastructure. The module’s power semiconductors are mounted on an aluminum heat spreader that interfaces with the system’s forced-air duct. An NTC thermistor embedded in the heat spreader provides continuous temperature telemetry to the system controller; if the junction temperature approaches the thermal derating threshold, the controller reduces the available peak current before triggering a fault — a graceful degradation strategy that avoids abrupt shutdowns on thermally marginal installations.

System Integration Benefits

• Shared DC Bus Energy Recovery: Regenerative braking energy from one axis is directly available to accelerating axes on the same DC bus rail, reducing net energy draw from the supply unit by up to 30 % in coordinated multi-axis motion profiles.
• Deterministic Torque Response: Current-loop execution synchronized to the AMKASYN bus cycle eliminates jitter in torque commands, enabling electronic gearing and camshaft applications where axis phase error must remain below ±0.1 ms.
• Reduced Cabinet Footprint: A single AW 8/16-2 8/16 slot replaces two single-axis modules, freeing rail space for additional axes or I/O components in 600 mm cabinets.
• Integrated Axis Diagnostics: Each axis reports current actual value, velocity feedback, following error, and thermal status to the AMKASYN controller in real time, enabling condition-based maintenance without external measurement hardware.
• Fault Isolation Architecture: Galvanic isolation between axis output stages and the system bus ensures a single-axis fault does not propagate to adjacent drives or the motion controller, maintaining partial machine operation during fault recovery.
• Scalable Multi-Axis Expansion: Additional AW modules can be inserted into the AMKASYN rail without modifying the power supply unit, provided the aggregate continuous current demand remains within the supply unit’s rated output — simplifying machine variants and capacity upgrades.
• Encoder Feedback Multiplexing: The module routes resolver or EnDat encoder signals through the AMKASYN system bus, eliminating point-to-point encoder cables between the drive and the motion controller and reducing wiring harness complexity by approximately 40 % in typical 4–8 axis configurations.
• Standardized Replacement Procedure: The bookshelf form factor and bus-connector interface allow module swap-out without rewiring motor power or feedback cables, reducing mean time to repair (MTTR) to under 15 minutes for trained maintenance personnel.

Quality Assurance & Global Logistics

Every AMK AW 8/16-2 8/16 unit dispatched from our Xiamen, China facility is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Visual examination covers connector pin integrity, PCB surface condition, label authenticity, and housing mechanical completeness. Part number and hardware revision are cross-referenced against AMK documentation to confirm specification compliance before packaging.

Units are packed in anti-static polyethylene foam inserts within double-wall corrugated cartons, with moisture-barrier desiccant packs included for ocean freight consignments. Each shipment is accompanied by a commercial invoice, packing list, and certificate of origin — documentation required for customs clearance in most import jurisdictions. For customers requiring additional traceability, inspection reports and photographic records are available on request.

Logistics from Xiamen port connects to major industrial hubs across Southeast Asia, Europe, and North America via established freight forwarder partnerships. Air freight options provide 3–7 business day delivery to most destinations; sea freight LCL consolidation is available for multi-unit orders where lead time permits. All shipments are tracked from dispatch to delivery, with proactive status updates provided to the buyer.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed through direct technical review — no third-party RMA intermediaries — ensuring fast resolution and minimal production disruption for the end user.
