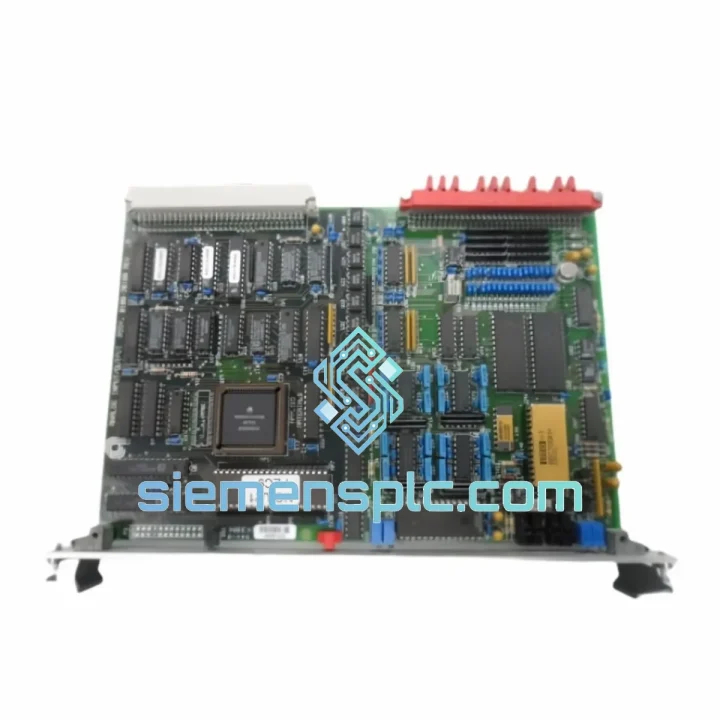

Applied Materials 0100-20100 Analog I/O PCB Board

AMAT 0100-20100 Analog I/O PCB Board: Stop the Bleed — Every Minute of Downtime Costs You

Your CVD chamber just faulted. The process line is cold. Operators are standing by. You’ve isolated the fault to the Applied Materials 0100-20100 Analog I/O PCB Board — and now you need a replacement, not a lecture. We stock this board in Xiamen, verified and ready to pull. One call, one shipment, line back up. That’s the only metric that matters right now.

The 0100-20100 is the analog signal backbone of multiple Applied Materials platforms — Centura, Producer, and legacy 200mm systems. When it fails, you lose closed-loop process control entirely. Gas flow feedback, temperature regulation, pressure sensing — all dark. There is no workaround. You replace the board or you idle the tool.

We’ve shipped this exact part to fabs in South Korea, Taiwan, Malaysia, Germany, and the US under emergency timelines. DHL International Priority from Xiamen to most major fab hubs lands in 48–72 hours. That’s the window between a recoverable incident and a missed wafer start commitment.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Fault Signatures Pointing to 0100-20100 Failure:

• Alarm Code A-1042 / A-1043 (Analog Input Out of Range): The board’s ADC channels are reading rail values (0V or full-scale) when the process is at steady state. First rule out sensor wiring and transducer faults — if sensors check out, the board’s input conditioning stage has failed.
• Erratic MFC (Mass Flow Controller) Response: If your gas flow is hunting or the MFC setpoint command is not tracking, the DAC output stage on this board is the prime suspect. Swap the board before condemning the MFC itself — MFCs are expensive and rarely the root cause in this failure mode.
• Intermittent Process Drift During Thermal Ramp: Thermal cycling causes micro-fractures in solder joints on older boards. If faults are temperature-correlated (appear after 30–45 min of operation), the board is failing thermally. No amount of reseating will fix this permanently.
• System Hangs at Recipe Step Requiring Analog Feedback: The host controller is waiting for an analog confirmation signal that never arrives. Check the board’s output connector for bent pins before assuming board failure — but if pins are clean, the board’s output driver IC has likely failed.

Replacement Procedure — Field Notes:

1. ESD Protocol First: This board contains precision analog ICs with ESD sensitivity ratings as low as 250V HBM. Ground yourself, use a wrist strap, and work on a grounded mat. One static discharge will kill the replacement board before it’s installed.
2. Power Down Sequence: Follow the AMAT-specified shutdown sequence for your platform. Do not hot-swap this board — the analog power rails must be fully discharged before extraction. Verify with a multimeter at the backplane connector before touching the board.
3. Document the Slot Address: On Centura systems, the slot position determines the board’s logical address in the VME bus. Photograph the chassis layout before removal. Installing the replacement in the wrong slot will cause a bus conflict and the system will not initialize.
4. Check DIP Switch / Jumper Configuration: Some revisions of the 0100-20100 carry configuration jumpers for analog range selection (0–5V vs. 0–10V, 4–20mA modes). Match the jumper state on the replacement to the failed board exactly. If the failed board is unreadable, consult your system’s I/O configuration file in the AMAT host software.
5. Firmware / Driver Compatibility: If your host system has been updated since the original board was installed, verify that the analog I/O driver version in the AMAT software stack is compatible with the board revision you are installing. Revision mismatches can cause calibration offsets that look like sensor errors.
6. Post-Installation Calibration: Run the AMAT analog I/O calibration routine before returning the tool to production. Do not skip this step — even a genuine OEM replacement board will have slight offset variations from the factory that require system-level calibration to correct.

Reliability in Harsh Conditions

Semiconductor fabs are not gentle environments for electronics. The 0100-20100 is engineered to operate continuously in conditions that would degrade consumer-grade hardware within weeks. The board’s analog front-end uses precision instrumentation amplifiers rated for operation across wide temperature ranges, with low drift coefficients that maintain measurement accuracy even as the fab floor temperature fluctuates during shift changes and HVAC cycling.

Vibration from vacuum pumps, turbo-molecular pumps, and robotic transfer systems is a constant stress on PCB solder joints and connector interfaces. The 0100-20100’s board layout uses reinforced mounting points and conformal coating on critical analog signal traces to resist vibration-induced micro-cracking — a failure mode that typically manifests as intermittent faults rather than hard failures, making it one of the most time-consuming to diagnose without knowing what to look for.

Humidity and process chemical outgassing are additional stressors in wet etch and CVD environments. The conformal coating on this board provides a barrier against condensation and corrosive vapor ingress on the signal conditioning circuitry. Units that have been stored improperly or exposed to high-humidity environments without protection should be inspected for corrosion on the edge connector fingers before installation — a detail we verify on every unit before it leaves our facility.

Every board we ship has been stored in climate-controlled conditions, in anti-static packaging, with desiccant. We do not pull boards from open shelving or uncontrolled warehouse environments. The unit you receive is in the same condition it was when it left the supply chain.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the most active export ports in Southeast China, with daily DHL and FedEx international pickup schedules. For emergency orders confirmed before 14:00 CST, same-day dispatch is available on in-stock units.

Typical Transit Times from Xiamen:

• Taiwan, South Korea, Japan: 24–36 hours via DHL Express
• Southeast Asia (Singapore, Malaysia, Thailand): 36–48 hours
• Europe (Germany, Netherlands, Ireland): 48–72 hours via FedEx International Priority
• North America (US, Canada): 48–72 hours via DHL Express Worldwide
• Middle East (Israel, UAE, Saudi Arabia): 48–60 hours

All shipments include a commercial invoice, packing list, and certificate of origin as standard. For customers requiring export documentation for customs clearance — including ECCN classification statements or RoHS declarations — these are prepared upon request and included with the shipment documentation package. We have experience shipping to customers with strict import compliance requirements and can coordinate with your logistics team directly.

For bulk orders or freight-sensitive shipments, sea freight consolidation from Xiamen Port is available with lead times of 15–25 days depending on destination. Contact us for a freight quote if your timeline allows.
