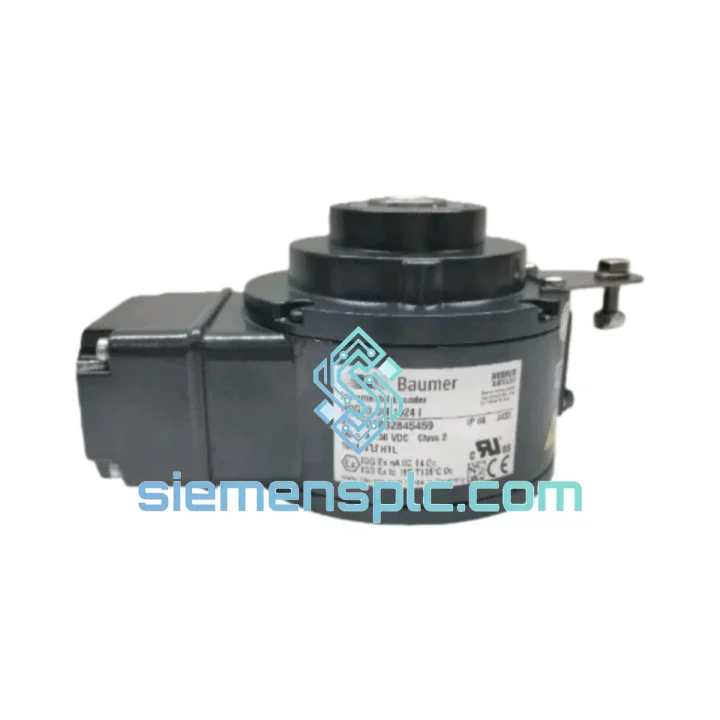

BAUMER HOG10DN1024I Incremental Encoder

BAUMER HOG10DN1024I — Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. A failed encoder on a servo axis or conveyor drive doesn’t wait for procurement cycles. The BAUMER HOG10DN1024I — blind hollow shaft incremental encoder, 1024 PPR, HTL push-pull output — is on our shelf in Xiamen right now. We ship same day via DHL Express or FedEx International Priority. Your machine runs again before your maintenance window closes.

We’ve handled enough emergency callouts to know: the difference between a 4-hour fix and a 3-day shutdown is whether the right part is in stock. This listing exists for exactly that scenario.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of HOG 10 field replacements, here’s what actually trips people up on-site:

1. Output type mismatch — the most common mistake. The HOG10DN1024I suffix means HTL push-pull, 10–30 V. If your drive card expects TTL/RS-422 (5 V), you need the HOG10DN1024L variant. Wiring the wrong output type into a 5 V input card will kill the card input stage within seconds of power-up. Check your drive’s encoder interface card spec sheet before you pull the old unit.

2. Blind hollow shaft depth — measure before you mount. This is a blind bore, not a through-shaft. Your motor shaft must not exceed the encoder’s internal bore depth. If the shaft bottoms out before the clamping ring seats, you’ll get axial runout and intermittent signal loss that looks like a wiring fault. Measure shaft protrusion length against the encoder bore depth in the datasheet.

3. Cable shielding and grounding. HTL push-pull can drive 100 m cable runs, but only with properly shielded twisted-pair (min. 0.5 mm²) and single-point shield grounding at the control cabinet end. Floating shields or double-grounded shields introduce 50/60 Hz noise that corrupts the quadrature signal — you’ll see erratic position counts or F31117 / F31120 faults on SINAMICS drives.

4. Clamping ring torque. Under-torqued clamping rings allow micro-slip under load reversals. This shows up as accumulated position error over time — the axis drifts by a few encoder counts per cycle. Torque to BAUMER’s specified value (typically 3–5 Nm depending on bore size) and use thread-locking compound on the set screws.

5. Common fault codes triggered by encoder failure:

• Siemens SINAMICS: F31117 (encoder signal fault), F31120 (encoder zero mark fault), A31120 (encoder signal level warning)
• ABB ACS880: 7081 (encoder cable fault), 7082 (encoder signal loss)
• Yaskawa GA700: Er.850 (encoder disconnection), Er.860 (encoder signal error)
• Schneider Altivar: EnF (encoder fault), OBF (output phase fault triggered by runaway)

If you’re seeing any of these codes and the encoder is more than 3 years old or has been exposed to vibration or moisture ingress, replace the encoder first before chasing wiring faults. Nine times out of ten, the encoder is the root cause.

Reliability in Harsh Conditions

The HOG 10 platform was engineered for environments that destroy lesser encoders. IP65 sealing means the housing is fully dust-tight and withstands direct water jets — relevant for food processing lines, outdoor conveyors, and washdown zones. The stainless steel shaft and die-cast zinc housing handle continuous vibration loads that would fatigue the bearing preload on cheaper encoders within months.

Operating range of −20 °C to +85 °C covers most industrial scenarios without derating. In steel mill and foundry environments where ambient temperatures spike, the HOG 10’s thermal management keeps the internal optics and disc within tolerance. We’ve seen these units run continuously for 7–10 years in paper mill and cement plant applications — environments with constant vibration, dust, and humidity cycling.

The blind hollow shaft design eliminates the coupling entirely. No coupling means no coupling misalignment, no coupling wear, and no coupling failure mode. Direct shaft mounting also reduces the mechanical resonance path between the motor shaft and the encoder disc, which matters in high-cycle applications where coupling fatigue is a real failure mode.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-connected export hubs in Asia. Orders confirmed before 15:00 CST ship same day. Here’s the typical transit timeline:

• Southeast Asia (SG, MY, TH, VN): DHL Express 2–3 business days
• Europe (DE, FR, NL, PL, IT): FedEx International Priority 3–5 business days
• North America (US, CA): DHL Express or FedEx 3–5 business days
• Middle East (AE, SA, QA): 3–4 business days via DHL
• Australia / New Zealand: 3–4 business days via FedEx

Every shipment includes a tracking number issued within 2 hours of dispatch. We handle commercial invoice, packing list, and HS code documentation for customs clearance. For urgent orders requiring a specific delivery window, contact us directly on WhatsApp — we’ll coordinate with the courier to prioritize your shipment.

Export packaging is anti-static foam-lined with moisture barrier film. The encoder arrives in the same condition it left our shelf, regardless of transit handling.
