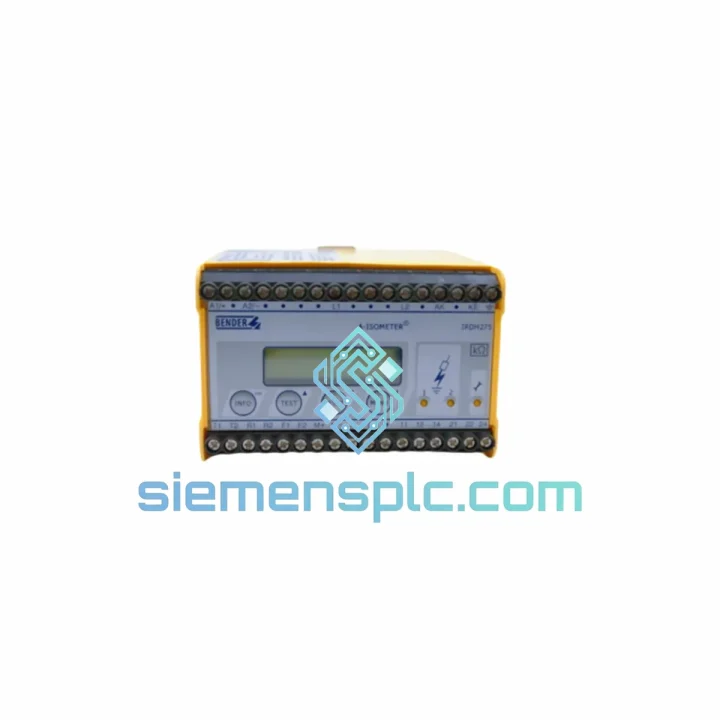

BENDER IRDH275-427 Insulation Monitoring Device

BENDER IRDH275-427 — Stop the Clock on Your Downtime. Ship Today.

Your IT system just tripped. The insulation fault alarm is screaming. Every minute the line stays dark costs real money — production losses, penalty clauses, emergency labor. The BENDER IRDH275-427 is the exact module you need, and we have it on the shelf in Xiamen right now. No lead time negotiation. No factory backorder. We pull, pack, and hand it to DHL before your maintenance window closes.

This is not a listing page. This is a field replacement resource. Everything below is written for the engineer holding a dead unit, not a procurement manager browsing catalogs.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls teach you that most IRDH275-427 failures fall into three buckets. Here is how to confirm the module is the culprit before you order, and what to watch when you swap it in.

Fault Code F001 / Alarm relay latched, Ran reading at minimum (1 kΩ): Classic capacitive coupling interference from a large VFD network. Before condemning the IMD, disconnect the coupling device (AGH150W/AGH204W) and measure insulation resistance manually with a 500 V Megger. If the Megger reads >100 kΩ but the IRDH275-427 still shows fault, the AMP measuring circuit inside the unit has drifted — replace the module. If the Megger also reads low, the fault is in the field wiring, not the IMD.

Fault Code F002 / Supply voltage error, Us LED off: Check the wide-range supply input (terminals Us1/Us2). The -427 suffix means AC/DC 24–240 V. A common site error is feeding it 24 V DC from a failing UPS that has dropped to 18 V under load. Measure at the terminals, not at the UPS output. If supply is confirmed good and the LED stays off, the internal power supply stage has failed — the module needs replacement.

BMS bus communication lost (COM465 shows device offline): First check RS-485 termination. The IRDH275-427 must be the last device on the bus segment, with the 120 Ω termination resistor enabled via the internal DIP switch (SW1, position 4 = ON). A missing terminator causes intermittent dropouts that look like module failure. If termination is correct and the device still does not appear on the bus, the RS-485 transceiver IC has failed — replace the unit.

Replacement procedure — critical steps:

• Record the current Ran setpoint (pre-warning and fault thresholds) from the front panel before powering down. The new unit ships with factory defaults (typically 50 kΩ / 10 kΩ) which will not match your system.
• Note the BMS device address (set via front-panel rotary switch, 01–90). The replacement unit must be set to the same address before powering up, or the COM465 gateway will register a new device and alarm.
• Verify DIP switch SW1 settings on the old unit before removal: coupling device type (AGH vs. direct), measuring circuit mode, and bus termination. Replicate exactly on the new unit.
• After installation, perform a functional test: short terminals L1/L2 to PE through a 10 kΩ resistor and confirm the fault relay trips within the response time specified in IEC 61557-8 (typically <5 s at Ran = 10 kΩ).
• If the system uses BENDER EDS fault location, re-run the EDS locating cycle after replacement to re-establish the baseline capacitance map.

Reliability in Harsh Conditions

The IRDH275-427 was not designed for a clean server room. It was designed for the environments where insulation faults actually happen — offshore platforms with salt-laden air, chemical plants with corrosive atmospheres, steel mills where the cabinet shakes from 50-ton presses running three meters away.

The unit’s AMP (Adaptive Measuring Method) technology actively compensates for system capacitance up to several microfarads, which is the real-world condition in any plant running multiple VFDs on the same IT bus. Competing devices that use a fixed DC measuring voltage will give false alarms or miss real faults in high-capacitance networks. The IRDH275-427 does not.

Thermal performance is validated to −25 °C to +70 °C continuous operation. The wide-range supply input (AC/DC 24–240 V) means the unit keeps monitoring even when your control voltage rail is sagging during a fault event — exactly when you need it most. The relay outputs are rated for 250 V AC / 6 A, robust enough to drive contactors directly without an interposing relay in most installations.

Every unit we ship has been stored in climate-controlled conditions. We do not pull from outdoor warehouses or unverified secondary channels. The serial number on the label is traceable directly to BENDER’s production records.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here is what the timeline actually looks like once you confirm your order:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to carrier. DHL Express tracking number issued by 18:00 CST.
• Europe (DE, NL, UK, FR): 2–3 business days door-to-door via DHL Express Worldwide.
• North America (US, CA): 3–4 business days via FedEx International Priority.
• Southeast Asia (SG, MY, TH, ID): 1–2 business days via DHL Express.
• Middle East (AE, SA, QA): 2–3 business days via FedEx International Priority.
• Australia / New Zealand: 3–4 business days via DHL Express.

All shipments include commercial invoice, packing list, and country-of-origin certificate (Germany, as manufactured). For customers requiring DDP (Delivered Duty Paid) terms, we handle customs clearance and import duties on your behalf — no surprise charges at delivery. For projects requiring an export license or end-user declaration, contact us before ordering so we can prepare documentation in parallel with picking.

We ship to over 80 countries. If your destination is not listed above, send us a WhatsApp message and we will confirm the transit time and carrier within 30 minutes during business hours.
