BENTLY NEVADA 128031-01C Rack Slot Filler Plate — Structural Role in 3500 Series Machinery Protection Architecture

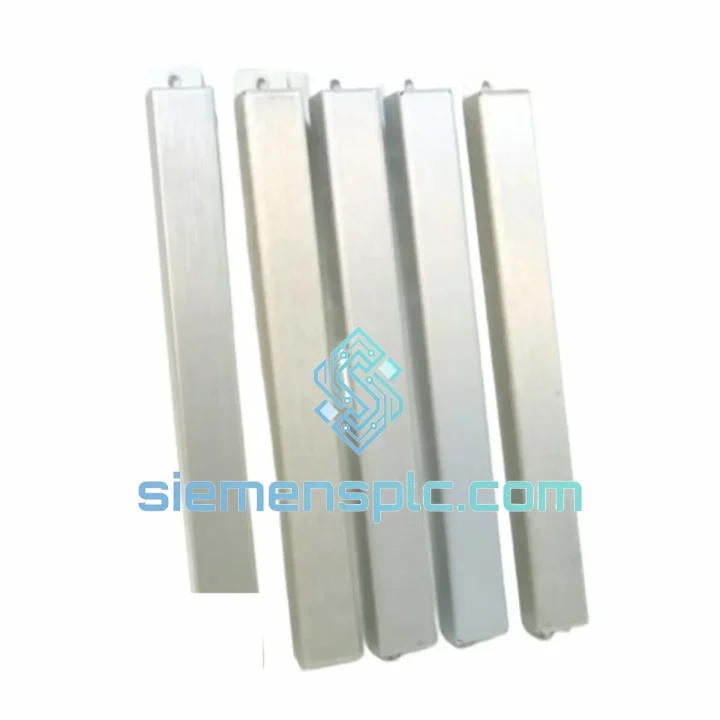

The Bently Nevada 128031-01C is a single-slot blank filler plate engineered specifically for the 3500 Series Machinery Protection System rack chassis. Its function is deceptively precise: it is not a passive cosmetic cover but a load-bearing structural and electromagnetic element that completes the rack’s mechanical and shielding envelope. In any 3500 Series installation where module slots remain unpopulated — whether during phased commissioning, system reconfiguration, or long-term spare-slot reservation — the 128031-01C maintains the rack’s designed operating conditions. Without it, the chassis loses EMI containment continuity, thermal airflow becomes turbulent and unmanaged, and the rack’s structural rigidity at the card-guide interface is compromised. For safety-instrumented systems operating under IEC 61511 or API 670 mandates, maintaining rack integrity at every slot position is not optional — it is a compliance requirement.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 128031-01C operates at the intersection of three distinct engineering disciplines within the 3500 rack architecture: electromagnetic compatibility (EMC), thermal management, and structural mechanics.

EMC Shielding Continuity. The 3500 Series rack chassis is designed as a Faraday enclosure. Each module’s front panel contributes to a continuous conductive boundary that attenuates radiated emissions and provides a low-impedance return path for chassis ground. The 128031-01C replicates this boundary at unpopulated slots. Its conductive contact edges make direct metal-to-metal contact with the rack’s card-guide rails, maintaining the shielding aperture below the threshold required by IEC 61000-4-3 radiated immunity levels. An open slot, by contrast, creates an aperture antenna effect — at frequencies above approximately 300 MHz, a 25 mm slot can radiate or receive interference at levels that degrade the signal integrity of adjacent analog input modules, particularly proximity probe conditioners operating at sub-millivolt signal levels.

Thermal Airflow Management. The 3500 rack uses a forced-convection cooling architecture with defined inlet and exhaust plenum geometry. Airflow is directed through module card guides in a controlled laminar pattern. An open slot bypasses this path, creating a low-resistance short-circuit for cooling air that reduces volumetric flow through adjacent populated modules. The 128031-01C restores the designed flow resistance at each slot position, ensuring that thermal models used during rack commissioning remain valid across the full operating temperature range.

Structural Card-Guide Integrity. The card-guide rails in the 3500 rack are precision-machined to maintain module alignment during insertion and extraction. The filler plate’s captive screw retention engages the same rail geometry as active modules, preventing rail deformation under vibration loads — a critical consideration in turbomachinery environments where rack-mounted systems may be exposed to 1–2 g broadband vibration from adjacent rotating equipment.

System Integration Benefits

• Preserves rack-level EMI certification: Maintains the chassis shielding envelope required for CE and FCC compliance declarations, avoiding re-certification costs when slots are left open during phased module installation.
• Sustains analog signal integrity: Eliminates radiated interference ingress at open-slot apertures that would otherwise couple into high-impedance proximity probe input circuits, protecting measurement accuracy at the microvolt level.
• Maintains designed thermal resistance: Restores airflow path geometry so that module junction temperatures remain within OEM-specified limits, directly extending MTBF of populated modules in adjacent slots.
• Supports API 670 rack assembly compliance: API 670 Section 6 specifies that rack assemblies must be complete and sealed. The 128031-01C satisfies this requirement for unpopulated slots without requiring a functional module.
• Enables deterministic slot reservation: Allows system architects to pre-assign slot positions for future module additions without leaving the rack in a non-compliant state during the interim period.
• Reduces MRO complexity: A single part number covers all standard single-slot positions in the 3500 rack, simplifying spare parts inventory management for multi-rack installations.
• Prevents foreign object ingress: Seals the card-guide channel against particulate contamination in environments with airborne process dust, preventing conductive particle accumulation on backplane connectors.
• Facilitates rack-level diagnostic transparency: A fully populated rack (with filler plates at unused slots) presents a visually consistent front panel, making it immediately apparent during maintenance walks if a module has been removed — an important operational discipline in safety-critical installations.
