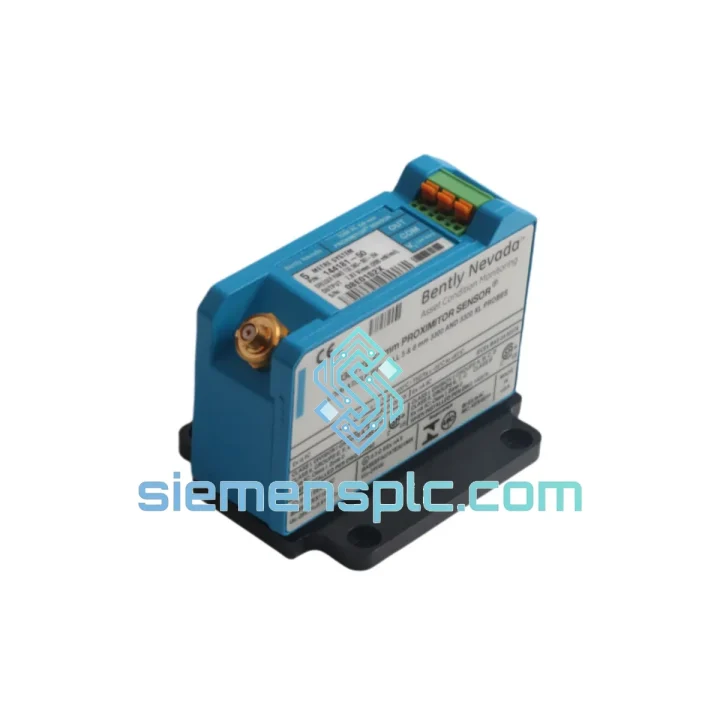

Bently Nevada 144181-50-05 Proximity Sensor – 3300 Series

Bently Nevada 144181-50-05: Non-Contact Shaft Measurement in Continuous Rotating Machinery Monitoring

The Bently Nevada 144181-50-05 is a factory-calibrated eddy current proximity probe with a 5 mm tip diameter and 5.0 m integral armored cable, designed for permanent installation in API 670-compliant machinery protection systems. Within the 3300 Series measurement chain, this probe functions as the primary transducer: its internal LC oscillator generates a high-frequency electromagnetic field at the probe tip, and any conductive target entering that field induces eddy currents that load the oscillator circuit. The resulting impedance shift is transmitted via coaxial cable to a paired proximitor/driver, which demodulates the signal into a DC voltage proportional to the air gap between probe face and shaft surface. This architecture eliminates all mechanical contact with the rotating element, enabling continuous measurement at shaft speeds exceeding 100,000 RPM without probe wear or signal degradation over time.

In a typical turbomachinery protection loop, the 144181-50-05 is mounted in a radial or axial bracket at a nominal gap of 1.27 mm (50 mil), placing the operating point at the center of the linear range. The proximitor output feeds directly into a 3300 Series monitor card, where configurable alert and danger setpoints trigger relay outputs for alarm annunciation or automatic machine trip. Because the probe’s sensitivity is traceable to Bently Nevada factory calibration standards, no field recalibration of the monitor is required when replacing a probe of the same part number — a critical operational advantage during unplanned maintenance windows in power generation or petrochemical facilities.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 144181-50-05 probe body houses a precision-wound coil embedded in a thermally stable epoxy matrix within the stainless steel tip. The coil forms the inductive element of an LC oscillator circuit whose resonant frequency is nominally 1 MHz. When a conductive target approaches the probe face, eddy currents induced in the target surface create a counter-magnetic field that reduces the effective inductance of the coil, shifting the oscillator frequency and reducing oscillation amplitude. The proximitor driver detects this amplitude modulation and converts it to the calibrated DC output voltage.

The hermetically sealed stainless steel housing provides IP67-equivalent ingress protection, preventing oil mist, steam condensate, and process gas from reaching the coil assembly — a failure mode that historically accounts for a significant proportion of proximity probe degradation in turbine bearing housings. The integral armored cable uses a low-loss coaxial construction with a characteristic impedance matched to the 3300 Series extension cable system; impedance discontinuities at cable junctions introduce reflections that corrupt the high-frequency oscillator signal, so the factory-terminated integral cable eliminates one potential mismatch point in the measurement chain.

EMC performance is addressed at the coil level: the probe tip geometry and winding configuration are optimized to minimize sensitivity to external magnetic fields from adjacent motor windings or bus bars. The coaxial cable shield is grounded at the proximitor end only, preventing ground loop currents that would appear as low-frequency noise on the DC output. In installations where shaft-to-ground voltage is present (common in variable-frequency drive applications), the non-contact measurement principle inherently isolates the probe circuit from shaft potential, eliminating the galvanic coupling path that affects contact-type sensors.

System Integration Benefits

• Direct plug-and-play replacement: The 144181-50-05 is dimensionally and electrically identical to the original 3300 Series probe specification; no monitor reconfiguration or sensitivity rescaling is required after swap-out, reducing maintenance downtime to the time needed for mechanical reinstallation and gap verification.
• Deterministic DC output latency: The eddy current measurement chain from shaft displacement to monitor input operates with a signal propagation delay below 100 µs across the full 0–10 kHz bandwidth, ensuring that high-speed rotor events such as blade-pass excitation or oil whirl onset are captured without phase distortion in the monitor’s time-waveform buffer.
• Zero-wear continuous operation: With no physical contact between probe and shaft, the 144181-50-05 is rated for continuous service without scheduled replacement intervals, unlike accelerometers with internal piezoelectric elements subject to fatigue or contact-type displacement sensors subject to abrasion.
• Wide thermal operating envelope: Qualification to –35°C to +177°C covers both cold-climate outdoor installations and high-temperature bearing housings adjacent to steam turbine casings, eliminating the need for probe cooling provisions in most standard turbomachinery configurations.
• Calibration traceability: Each probe ships with factory calibration data referenced to Bently Nevada standards, providing a documented sensitivity baseline for ISO 17025-aligned maintenance records and audit trails required in regulated industries such as nuclear power and LNG processing.
• ATEX-rated for hazardous area deployment: The probe carries ATEX certification for installation in Zone 1/Zone 2 classified areas, enabling use in compressor trains and pump skids located within flammable gas or vapor environments without additional intrinsic safety barriers at the probe level.
• Diagnostic transparency via gap voltage monitoring: The DC output voltage at the nominal 1.27 mm gap is a direct, measurable indicator of probe-to-shaft clearance. Trending this voltage over time reveals bracket creep, shaft centerline migration, or probe tip contamination before these conditions affect vibration measurement accuracy — a predictive maintenance data point available without additional instrumentation.
• Compatibility with 3300 XL and legacy 3300 monitor racks: The probe operates identically with both the current 3300 XL monitor generation and earlier 3300 Series hardware, protecting the capital investment in existing monitor infrastructure during phased plant upgrades.

Quality Assurance & Global Logistics

Every 144181-50-05 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full part number, date code, and housing marking verification against Bently Nevada reference standards. Pre-shipment inspection covers visual examination of the probe tip and connector, coaxial cable continuity and shield integrity check, and label authenticity verification. Original manufacturer packaging is preserved where available; repackaged units are accompanied by an inspection report. A Certificate of Conformance (CoC) is available upon request for quality management system documentation.

Logistics operations are based in Xiamen, China — a major southeastern port city with direct access to international air freight hubs at Xiamen Gaoqi International Airport and sea freight connections through Xiamen Port. Standard in-stock orders are dispatched within 2–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with tracking numbers issued at the time of shipment. Delivery to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East typically completes within 3–7 business days from dispatch. For time-critical plant shutdowns, expedited same-day dispatch is available upon confirmed payment before 14:00 CST. All shipments include a commercial invoice, packing list, and country of origin declaration to support customs clearance. Import duty and VAT obligations are the responsibility of the consignee; our logistics team can provide HS code documentation and valuation support to facilitate smooth customs processing.
