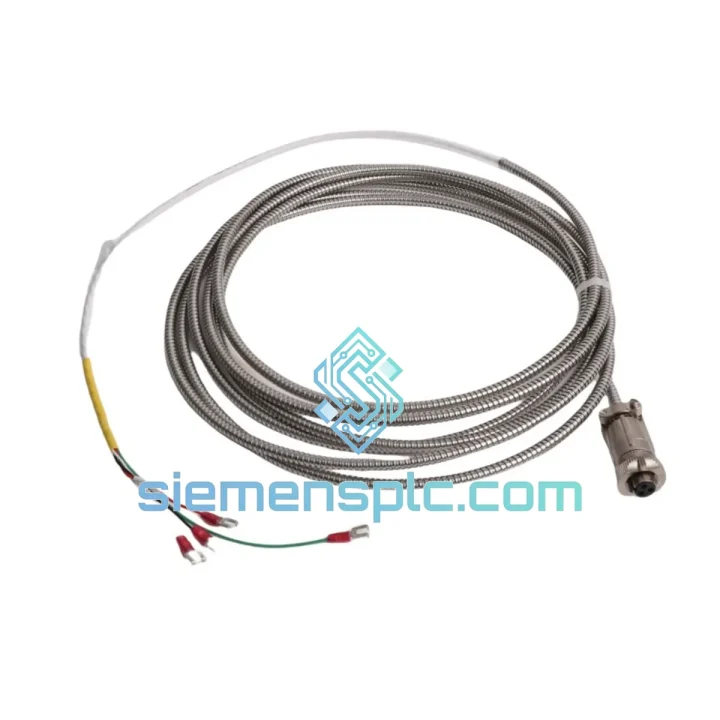

Bently Nevada 16710-17 Proximity Interconnect Cable

16710-17 Down? Every Minute of Downtime Is Money Bleeding Out — We Ship Today

A failed interconnect cable on your Bently Nevada proximity system doesn’t just trigger a fault alarm — it blinds your entire machinery protection loop. No vibration signal. No axial position data. Your turbine, compressor, or critical rotating asset is running dark. Operations won’t authorize a restart without a confirmed healthy signal chain, and your maintenance window is already burning.

The Bently Nevada 16710-17 is the precision interconnect cable that bridges your proximity probe to the extension cable or monitor input. When this link fails, the entire measurement chain collapses. We stock it. We ship it fast. From Xiamen, China — DHL and FedEx express to your plant gate, anywhere on the planet.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery protection systems, here’s what actually goes wrong with the 16710-17 and what to watch when you swap it out:

Common Failure Modes:

• Intermittent signal dropout: The most frequent failure. Usually caused by micro-fractures in the coaxial center conductor near the probe-end connector, often from repeated flexing during maintenance access. The monitor will log spurious high-vibration trips or gap voltage excursions. Wiggle the cable at the connector while watching the gap voltage on your 3300 or 7200 monitor — if the reading jumps, the cable is the culprit.
• Sustained gap voltage out of range: If your monitor shows gap voltage outside the –10 to –18 VDC window (for standard 8mm probes) and the probe itself checks out on a cable simulator, suspect the interconnect cable’s shield continuity. A broken shield allows noise ingress that shifts the apparent gap voltage.
• High vibration false trips after maintenance: Nine times out of ten, someone kinked the interconnect cable during reassembly. Even a single sharp bend can crack the dielectric and alter the cable’s characteristic impedance, introducing measurement error that looks like real vibration.
• Connector corrosion in wet environments: Offshore platforms and paper mills are notorious for this. The SMA-style connectors oxidize and increase contact resistance. Clean with isopropyl alcohol before condemning the cable — but if corrosion has reached the center pin, replace the cable.

Replacement Procedure — Field Checklist:

• ☐ De-energize the driver/monitor channel before disconnecting. Do not hot-swap on live –24 VDC bias — you risk damaging the monitor input.
• ☐ Record the existing gap voltage before removal (photograph the monitor display). This is your baseline for post-installation verification.
• ☐ Inspect the probe tip gap with a feeler gauge or dial indicator. If the probe was disturbed during cable removal, re-gap to the manufacturer’s specification (typically 1.0–1.5 mm for 8mm probes).
• ☐ Install the new 16710-17. Hand-tighten connectors only — do not use a wrench on the probe-end connector. Over-torquing cracks the probe body.
• ☐ Re-energize and verify gap voltage is within ±0.5 VDC of the pre-removal baseline. If it has shifted significantly, re-check probe gap and connector seating.
• ☐ Confirm the monitor channel clears any latched alerts and returns to normal OK status before authorizing machine restart.
• ☐ No firmware changes or address switches are required for a like-for-like 16710-17 replacement. The cable is passive — no configuration needed.

Compatible Monitor Channels: Bently Nevada 3300/16 XL, 3300/20, 3300/25, 7200/14, 7200/20. Verify connector and cable length suffix before ordering if your installation uses a non-standard probe-to-monitor distance.

Reliability in Harsh Conditions

Industrial machinery protection doesn’t get a controlled environment. The 16710-17 is built to operate where conditions are punishing:

• Vibration resistance: The cable assembly is rated for continuous exposure to the vibration levels present on large rotating machinery bearing housings. The coaxial construction maintains signal integrity even under sustained mechanical excitation — the same environment it’s measuring.
• Temperature range: Designed for operation across the full range of industrial plant environments, from cold-start conditions in outdoor installations to the elevated ambient temperatures found in turbine enclosures and compressor buildings. The cable jacket and dielectric materials are selected for thermal stability across this range.
• Moisture and chemical resistance: The outer jacket resists hydrocarbon contamination, lubricating oil splash, and the humidity levels found in coastal and offshore installations. Connectors are designed to maintain contact integrity in high-humidity environments when properly mated and secured.
• EMI immunity: The double-shielded coaxial construction provides effective rejection of electromagnetic interference from variable frequency drives, large motors, and switchgear — common noise sources in industrial plants that can corrupt proximity probe signals on lesser cables.

We do not ship cables that have been stored improperly. Our Xiamen warehouse maintains controlled storage conditions. Every unit is inspected for jacket integrity, connector condition, and continuity before it leaves our facility.

Global Express Logistics

We operate from Xiamen, China — one of the most efficient export hubs on the Chinese coast, with direct DHL and FedEx service connections to major industrial regions worldwide.

• Order cutoff: Orders confirmed with payment before 14:00 CST ship same business day.
• DHL Express: Europe, Middle East, and Southeast Asia — typically 2–4 business days door to door.
• FedEx International Priority: North America — typically 3–5 business days. South America — 4–7 business days depending on customs clearance.
• Export documentation: Commercial invoice, packing list, and certificate of origin provided as standard. CITES, MSDS, or other special documentation available on request.
• Customs clearance: We declare accurately. HS code 8544.42 (insulated electric conductors) is standard for this product. We do not under-declare value — this protects you from customs seizure risk.
• Tracking: AWB number provided within 2 hours of shipment. Real-time tracking link sent directly to your email.
• Emergency freight: For genuine production-down situations, contact us via WhatsApp for same-day courier booking and priority handling.

We have shipped to refineries in the Middle East, power plants in Southeast Asia, paper mills in Scandinavia, and LNG facilities in Australia. If your plant has a receiving dock, we can reach it.
