Bently Nevada 16710-66 Interconnect Cable – 3500 Series

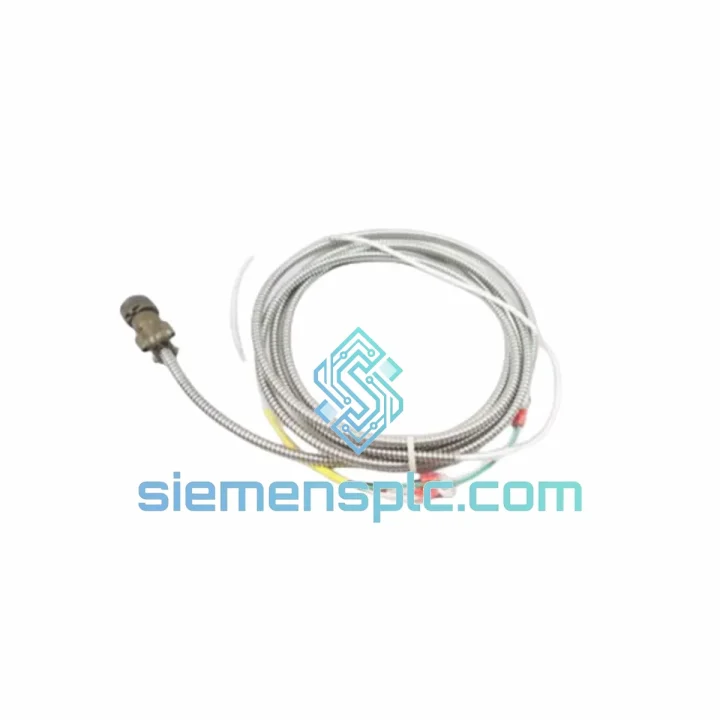

Bently Nevada 16710-66 – 66 ft Rack-to-Junction Signal Cable for 3500 Series Machinery Protection Systems

The Bently Nevada 16710-66 is a factory-assembled, 66-foot (approximately 20.1 m) multi-conductor interconnect cable engineered exclusively for the Bently Nevada 3500 Series Machinery Protection System. Its primary function is to carry low-level analog transducer signals from field-mounted junction boxes to the corresponding monitor modules housed within the 3500 rack chassis. Signal fidelity across this link is non-negotiable in turbomachinery protection: any impedance mismatch, ground loop, or shield discontinuity at this stage propagates directly into the monitor’s measurement chain, degrading alarm setpoint accuracy and, in worst cases, causing spurious trips or missed danger-state detection.

The “-66” suffix in the part number denotes the cable’s nominal length in feet, placing it in the mid-range of the 16710 series family (which spans 25 ft through 100 ft). This length is specified for rack-to-junction distances that, after accounting for conduit routing, elevation changes, and a mandatory 10–15% slack loop at each termination point, fall within the 55–60 ft straight-line range. Selecting the correct length eliminates field splices, which are prohibited under API 670 Fifth Edition wiring requirements for safety-instrumented machinery protection loops.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 16710-66’s electrical architecture addresses three distinct failure modes that are endemic to long-run signal cabling in heavy industrial environments.

Differential-pair shielding topology: Each signal pair is individually foil-shielded with a dedicated drain wire, terminated at a single-point ground at the rack end. This topology suppresses common-mode noise induced by adjacent power conductors, variable-frequency drives, and high-current motor starters — all of which are present in typical turbomachinery plant environments. The overall braid shield provides a secondary Faraday cage against radiated RF interference from wireless transmitters and radar-based level instruments operating in the 900 MHz–5.8 GHz bands.

Impedance continuity and signal bandwidth: The cable’s characteristic impedance is matched to the input impedance of 3500 Series monitor modules (nominally 1 MΩ differential input). At the signal frequencies of interest — DC to approximately 20 kHz for vibration channels and DC to 10 kHz for position channels — the cable’s distributed capacitance (typically 30–50 pF/ft for this construction) introduces a low-pass pole well above the measurement bandwidth, preserving phase accuracy at the 1× and 2× running-speed harmonics used for imbalance and misalignment diagnostics.

Connector keying and mechanical retention: The multi-pin connector is mechanically keyed to prevent mis-mating with adjacent rack module connectors. Positive-latch retention prevents intermittent contact under vibration loads up to 5 g RMS, which is consistent with the vibration environment of a 3500 rack mounted on a turbine skid. Intermittent connector contact at this interface would manifest as transient spikes in the monitor’s gap voltage reading, potentially triggering false danger alarms during normal operation.

Jacket and insulation material selection: The PTFE-rated dielectric and flame-retardant outer jacket are specified for installations where the cable passes through areas classified as hazardous locations (Zone 1 / Division 1) or where fire-resistance ratings are required by local electrical codes. The jacket material resists hydrocarbon fluid ingress, which is a practical concern in compressor and pump seal areas where lubricant mist is present.

System Integration Benefits

• Zero-modification installation: The 16710-66 is a plug-and-play assembly. No field termination, crimping, or pin insertion is required at either end. This eliminates the most common source of wiring errors during commissioning — incorrect pin assignment — and reduces installation labor to a single connector-mate operation at each end.
• API 670 compliance: The cable meets the wiring requirements of API 670 Fifth Edition, the industry standard for machinery protection systems in petroleum, petrochemical, and natural gas industries. Using a non-certified cable assembly in an API 670 loop can invalidate the system’s SIL assessment and create liability exposure during insurance audits.
• Deterministic signal latency: Because the cable introduces no active components, signal propagation delay is fixed at the speed-of-light constant for the dielectric material (approximately 0.66c for PTFE). This determinism is essential for time-synchronous averaging algorithms in the 3500/22M Transient Data Interface, where phase coherence between channels must be maintained to within ±1° at the highest analysis frequency.
• Ground loop elimination: Single-point shield grounding at the rack end, combined with the floating shield at the junction box end, prevents the formation of ground loops between the rack chassis ground and the field instrument ground. Ground loops in vibration monitoring circuits introduce 50/60 Hz interference that can mask sub-synchronous instability signatures in fluid-film bearing systems.
• Diagnostic transparency: The cable’s low DC resistance (typically <0.1 Ω/ft for the drain wire) allows the 3500 monitor’s built-in cable continuity check to detect open-circuit faults with a resolution of ±0.5 Ω. This means a broken drain wire or a corroded connector pin will generate a cable fault diagnostic alarm rather than a silent measurement error.
• Thermal stability across operating range: The −40 °C to +85 °C rating covers both arctic outdoor installations (cold-climate LNG plants) and high-ambient indoor installations adjacent to gas turbine exhaust ducts. Thermal cycling within this range does not cause connector contact resistance drift, which would otherwise introduce a temperature-dependent offset in the gap voltage measurement.
• Reduced commissioning risk: Using the OEM cable assembly eliminates the need for field verification of pin-out, shielding continuity, and connector compatibility — three checks that, if skipped, are responsible for a significant proportion of 3500 Series commissioning delays. The factory-tested assembly ships with a test certificate confirming end-to-end continuity and insulation resistance (>100 MΩ at 500 VDC).
• Spare parts standardization: Stocking the 16710-66 as a standard spare reduces the number of unique cable part numbers in the plant’s MRO inventory. A single cable length covers the majority of rack-to-junction distances in a typical 3500 rack installation, simplifying procurement and reducing the risk of ordering the wrong length under time pressure during an unplanned shutdown.

Quality Assurance & Global Logistics

Every Bently Nevada 16710-66 unit supplied through siemensplc.com is sourced from verified authorized distribution channels or factory-direct inventory with full Baker Hughes traceability documentation. Each unit undergoes incoming inspection covering connector pin integrity, jacket continuity, shield resistance, and label authenticity verification against the Bently Nevada part number database before it enters our warehouse stock.

Our logistics operation is based in Xiamen, China — a major international port city with direct air freight connections to Singapore, Dubai, Frankfurt, Los Angeles, and Tokyo. Standard international shipments depart within 1–2 business days of order confirmation. Express DHL/FedEx options are available for critical plant shutdown scenarios, with door-to-door transit times of 3–5 business days to most destinations in Southeast Asia, the Middle East, and Europe. All shipments include commercial invoice, packing list, and certificate of conformance. Export documentation for controlled industrial goods is handled in-house, with HS Code 8544.42 applied for customs classification of shielded electrical cable assemblies.

A 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Warranty claims are processed within 5 business days, with replacement units dispatched from Xiamen stock. For projects requiring long-term supply agreements or consignment stock arrangements, contact our sales team directly.
