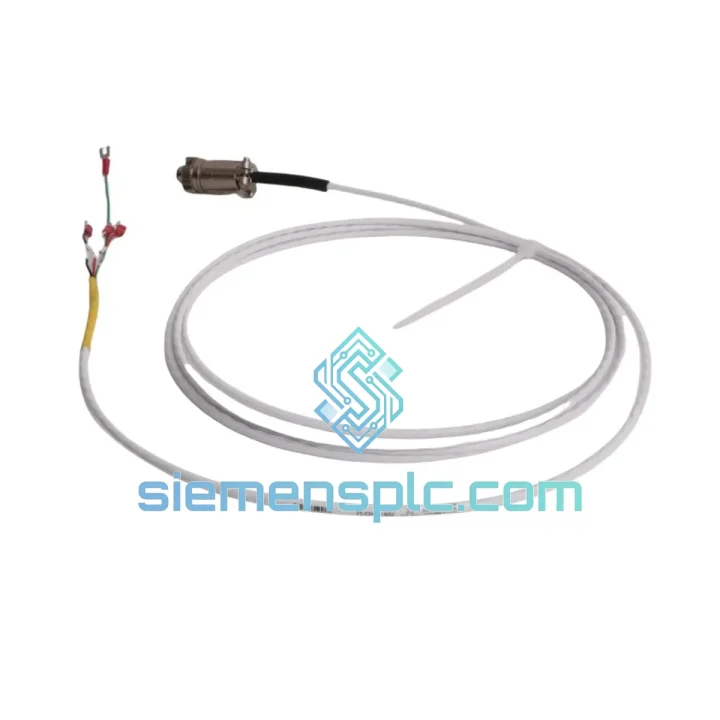

Bently Nevada 16925-08 Proximitor Cable – 3300 & 7200 Series

Bently Nevada 16925-08: OEM-Specified Signal Interconnect for Eddy-Current Proximity Measurement Chains

Within a continuous machinery protection system, the segment between the Proximitor sensor output and the monitor rack input terminal is where measurement fidelity is most vulnerable to degradation. The Bently Nevada 16925-08 is the factory-designated interconnect cable for this segment, engineered to preserve the DC-biased analog signal — nominally –18 VDC with a superimposed AC vibration component — across the full operating envelope without introducing impedance discontinuities, shield gaps, or connector-induced resistance drift. Its role is not supplementary; it is a calibrated component whose electrical characteristics are embedded in the system’s gain and alarm setpoint baseline.

The 16925-08 is qualified for use across Bently Nevada 3300 Series and 7200 Series Proximitor monitoring platforms. These platforms are deployed in API 670-compliant protection loops on gas turbines, steam turbines, centrifugal compressors, and large rotating machinery trains where unplanned downtime carries six-figure-per-hour cost exposure. In this context, cable substitution with non-OEM alternatives introduces uncontrolled capacitance variation that shifts Proximitor oscillator tuning, producing a gain error that cannot be corrected through standard field calibration without cable replacement. The 16925-08 eliminates this risk by maintaining OEM-matched conductor geometry and dielectric properties from the factory.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The proximity measurement chain in a Bently Nevada system follows a fixed signal path: Proximity Probe → Extension Cable → Proximitor Sensor → [16925-08 Interconnect] → Monitor Rack Input. By the time the signal reaches the 16925-08, it has been conditioned by the Proximitor’s internal oscillator and demodulation circuit into a DC voltage proportional to probe-to-target gap, with an AC component representing dynamic shaft displacement. This analog output is low-amplitude and high-impedance relative to the monitor input, making it susceptible to three primary degradation mechanisms that the 16925-08’s design directly addresses.

Impedance Continuity and Capacitance Matching: The Proximitor sensor’s output circuit is tuned to drive a specific cable capacitance load. The 16925-08 maintains OEM-specified capacitance per unit length through controlled conductor geometry and dielectric material selection. Deviation from this capacitance — as occurs with field-fabricated or generic shielded cable — shifts the effective sensitivity of the measurement loop. A 10% capacitance increase, for example, can produce a measurable gain error at the monitor input that displaces vibration amplitude readings by several mV, sufficient to move an alarm threshold from compliant to non-compliant under API 670 verification.

EMC Shielding Architecture: The full-length foil shield with 360° drain wire termination at both ends forms a continuous Faraday enclosure around the signal conductor. In turbine enclosures and compressor trains operating adjacent to variable-frequency drives, high-current motor feeders, or switchgear panels, capacitively coupled interference at 50/60 Hz and its harmonics is a documented source of spurious vibration amplitude on monitor displays. The 16925-08’s shield, grounded at a single point per OEM wiring practice, suppresses this interference without introducing ground loop currents that would add a DC offset or low-frequency noise floor to the measurement.

Connector Termination Integrity: Machinery protection systems undergo periodic maintenance outages during which interconnect cables are disconnected and reconnected. Each mating cycle subjects connector contacts to mechanical wear and potential oxidation. The 16925-08’s factory-controlled termination process — whether crimped or soldered — maintains contact resistance within OEM specification across the rated number of mating cycles. Field-fabricated terminations using non-specified contact materials or tooling introduce variable contact resistance that manifests as signal attenuation or intermittent open-circuit faults, the latter generating nuisance trips during startup transients when vibration amplitudes are naturally elevated.

System Integration Benefits

• Direct replacement without recalibration: OEM-matched capacitance and impedance allow the 16925-08 to replace a degraded cable without adjusting Proximitor sensitivity potentiometers or monitor gap setpoints, compressing maintenance window duration.
• Alarm setpoint integrity preserved: Consistent mV/mil or mV/µm sensitivity across the cable’s service life ensures that vibration alarm and danger thresholds remain within API 670 tolerance bands at the next functional test.
• Phase relationship accuracy for orbit analysis: Fixed propagation delay characteristics eliminate cable-induced phase shift variation between measurement channels, maintaining the accuracy of orbit plots used for rotor dynamic diagnostics.
• Nuisance trip suppression: Full-length shielding and controlled connector integrity reduce the probability of EMI-induced false alarms during motor energization, nearby switching events, or VFD speed ramps.
• SIL loop documentation continuity: Substituting with an OEM-specified cable preserves the original measurement loop’s safety integrity documentation without triggering a re-validation requirement under IEC 61511 management of change procedures.
• Plug-and-play rack interface compatibility: Connector geometry and pin assignment match 3300 and 7200 Series rack terminal interfaces, eliminating field wiring adaptation, associated documentation burden, and the risk of mis-wiring during time-pressured outages.
• Bearing wear trending reliability: Accurate gap voltage at the monitor input — enabled by a correctly installed 16925-08 — ensures that slow-roll gap readings and dynamic clearance trends used for bearing wear estimation reflect actual mechanical conditions rather than cable-induced measurement artifacts.
• Commissioning acceptance test confidence: Eliminates the measurement uncertainty introduced by non-OEM cables during system acceptance testing, where gap voltage linearity and sensitivity verification are performed against OEM-published calibration curves.

Quality Assurance & Global Logistics

Each Bently Nevada 16925-08 unit dispatched from our Xiamen, China operations center passes a structured pre-shipment verification sequence: visual inspection of cable jacket, connector body, and strain relief integrity; continuity measurement across all conductors; insulation resistance check between shield and signal conductor; and connector mating force verification. Units sourced from OEM surplus or authorized distribution channels are accompanied by original packaging and lot traceability documentation where available. A Certificate of Conformance is issued with every shipment, and serialization records are retained for a minimum of five years to support plant maintenance documentation requirements.

Xiamen’s established freight infrastructure — direct port access and contracted partnerships with DHL Express, FedEx International Priority, and UPS Worldwide Expedited — supports consistent transit times of 3–7 business days to industrial procurement destinations across Europe, the Middle East, Southeast Asia, North America, and Australia. Export documentation, including commercial invoice, packing list, and HS code declaration, is prepared to the customs compliance standards of each destination country. Expedited clearance coordination is available for time-critical plant maintenance scenarios. All shipments are fully insured and tracked from dispatch through delivery confirmation, with proactive status updates provided to the consignee.
