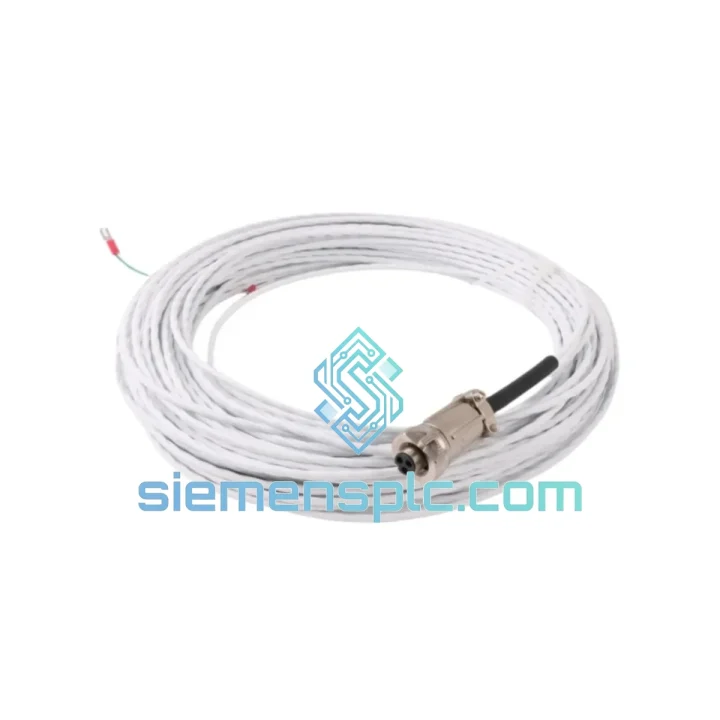

Bently Nevada 16925-21 Interconnect Cable – Proximitor/Seismic Monitor

Bently Nevada 16925-21 Proximitor Signal Interconnect Cable: Signal Integrity at the Core of Rotating Machinery Protection

The Bently Nevada 16925-21 is a factory-specification shielded interconnect cable designed to carry conditioned analog signals between Proximitor sensor drivers and monitor modules within Bently Nevada 3300 Series and 7200 Series continuous machinery protection platforms. In rotating machinery protection architectures, the signal path between the Proximitor driver output and the monitor module input is one of the most noise-sensitive segments of the entire measurement chain. Any impedance mismatch, shield discontinuity, or connector geometry deviation at this junction directly degrades the ±0.5% full-scale measurement accuracy that these platforms are rated to deliver. The 16925-21 is engineered to eliminate those variables.

This cable is not a generic shielded assembly. Its conductor gauge, dielectric material, braid coverage percentage, connector keying geometry, and drain wire termination method are all matched to the OEM harness specification. Maintenance engineers replacing worn or damaged interconnect cables in 3300/7200 Series racks can install the 16925-21 as a direct drop-in without re-termination, adapter hardware, or field modification of any kind.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Within a Bently Nevada 3300 or 7200 Series rack, the signal flow for a radial vibration channel follows this path: Proximity Probe → Extension Cable → Proximitor Driver → [16925-21 Interconnect] → Monitor Module Input → Buffered Output / Relay Logic → DCS/SIS. The 16925-21 occupies the segment between the Proximitor driver and the monitor module — a segment that carries a DC-biased, AC-modulated analog voltage in the range of −18 VDC to −24 VDC (gap voltage) superimposed with the vibration signal component.

EMC Design: The braid shield with 95%+ coverage provides a Faraday enclosure around the signal conductors. In plant environments where variable-frequency drives, high-current motor feeders, and RF-emitting wireless devices coexist within the same cable trays, an unshielded or poorly shielded interconnect at this point would introduce common-mode noise directly into the monitor’s input stage. The 16925-21’s drain wire is terminated at both ends to provide a low-impedance return path for induced currents, preventing shield voltage from floating and coupling into the differential signal.

Low-Capacitance Dielectric: The dielectric material between conductors is selected for low capacitance per unit length. This is not cosmetic — at the signal frequencies relevant to machinery vibration monitoring (typically 0.1 Hz to 10 kHz for displacement channels), elevated cable capacitance forms a low-pass filter that attenuates high-frequency vibration components and distorts the waveform presented to the monitor’s A/D converter. The OEM-specified dielectric preserves the flat frequency response required for accurate peak-to-peak displacement measurement.

Connector Keying and Contact Geometry: The multi-pin connector on the 16925-21 uses the same keying geometry as the factory harness. This prevents mis-insertion into adjacent monitor slots, which in a densely populated 3300 Series rack could otherwise route a Proximitor signal to the wrong channel — a failure mode that would produce incorrect alarm setpoint behavior without triggering any hardware fault indication.

System Integration Benefits

• Zero-modification installation: The 16925-21 installs directly into 3300 and 7200 Series monitor racks without field re-termination, adapter plates, or pin-out conversion — reducing maintenance window duration and eliminating wiring errors.
• Preserved measurement chain accuracy: OEM-matched cable parameters maintain the ±0.5% full-scale accuracy specification of the monitor module; aftermarket cables with non-specified capacitance or shield coverage degrade this figure measurably.
• Deterministic alarm response: Consistent signal fidelity from Proximitor to monitor ensures that alarm and danger setpoints trigger at the correct vibration amplitude, supporting API 670 compliance for machinery protection systems.
• Reduced diagnostic ambiguity: When a monitor channel reports a fault, a known-good OEM interconnect cable eliminates cable-related signal degradation as a diagnostic variable, accelerating root-cause isolation to the probe, driver, or monitor module.
• EMI immunity in mixed-signal environments: Full braid shielding allows the cable to be routed in proximity to power conductors without signal corruption — relevant in compact control cabinets where cable segregation is physically constrained.
• Thermal stability across plant operating ranges: The −40 °C to +85 °C operating range covers both cold-start commissioning in outdoor installations and sustained operation in heated machinery enclosures without insulation degradation.
• Long-term spare parts availability: Stocking the 16925-21 as a critical spare eliminates dependency on OEM lead times during unplanned outages — a significant operational risk reduction for continuous-process plants where machinery downtime carries direct production cost.
• Documentation traceability: Each unit is available with a certificate of conformance and inspection record, supporting maintenance management systems (CMMS) that require documented part provenance for safety-critical instrumentation.

Quality Assurance & Global Logistics

Every 16925-21 unit dispatched from our Xiamen, China facility undergoes a pre-shipment inspection protocol covering connector pin continuity, shield braid integrity, insulation resistance (minimum 100 MΩ at 500 VDC), and physical connector condition. Units sourced as surplus-new are retained in original Bently Nevada packaging where available and are stored in a climate-controlled warehouse to prevent connector oxidation and insulation degradation.

Refurbished units are cleaned, re-inspected, and tested to the same electrical acceptance criteria as new stock. Condition is declared explicitly on the proforma invoice — no ambiguity in what the customer receives.

International shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. A commercial invoice, packing list, and HS code declaration are included with every shipment to support customs clearance. For orders requiring expedited dispatch, same-day shipping is available for in-stock units confirmed before 14:00 CST.

A 12-month warranty covers manufacturing defects and electrical performance. Warranty claims are processed within 5 business days of receipt of the returned unit.
