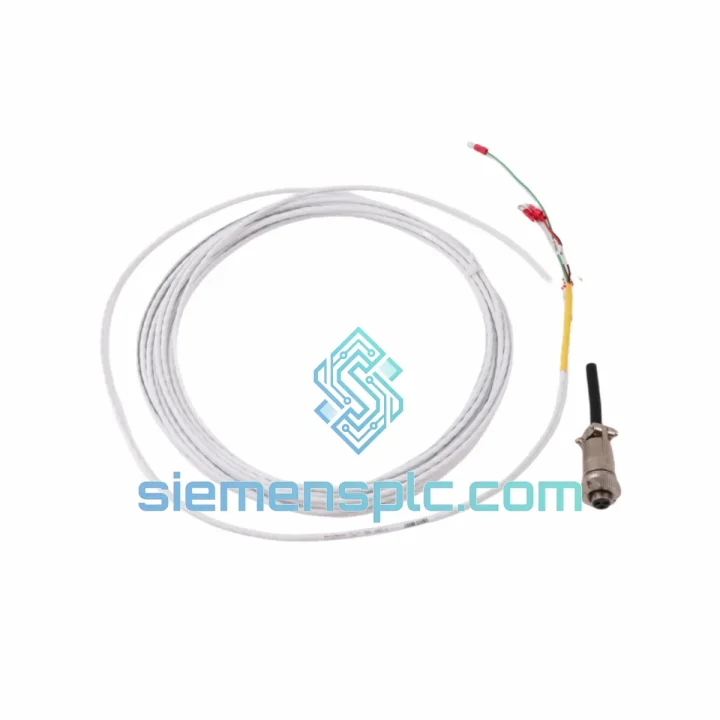

Bently Nevada 16925-30 Interconnect Cable

16925-30 Signal Cable Down? Every Minute of Blind Monitoring Is a Liability — Ship Today from Xiamen

You’re standing in front of a 3300 Series rack. The vibration channel is dead. The monitor is reading zero — not because the machine is healthy, but because the interconnect cable between the transducer junction box and the monitor module has failed. The turbine is still turning. The compressor is still loaded. And your protection system is flying blind.

The Bently Nevada 16925-30 is a 30-inch (762 mm) shielded interconnect cable purpose-built for the 3300 Series vibration monitoring architecture. It carries the raw -24 VDC-biased proximity probe signal from the field termination point into the monitor card. When this cable degrades — through connector oxidation, jacket cracking, or pin fretting — the monitor loses its input reference and either latches a fault or, worse, reads a false “OK” state. Neither outcome is acceptable on a critical machine train.

We stock the 16925-30 in Xiamen and ship globally via DHL Express and FedEx International Priority. If your order is confirmed before 14:00 CST, it moves the same day. Most destinations in Southeast Asia, the Middle East, and Europe receive parts within 3–5 business days. North America typically 4–6 days. That is the difference between a controlled maintenance window and an extended forced outage.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Symptom Recognition

Before condemning the 16925-30, confirm the fault is in the cable and not the transducer or monitor card. A failed interconnect cable typically presents as one of the following on the 3300 Series monitor front panel:

• OK LED off, Danger LED on: The monitor has lost its gap voltage reference. Check DC bias at the monitor input connector — should read between -7 VDC and -18 VDC for a healthy 3300 XL 8mm system. A reading outside this range with a known-good transducer and driver points to cable continuity loss.
• Intermittent channel dropout: Vibration amplitude reading drops to zero or spikes erratically without corresponding machine behavior. Classic symptom of a fretting connector pin or a cracked shield causing ground loops.
• Elevated noise floor: Spectrum shows broadband noise increase without a discrete frequency source. Compromised shielding on the 16925-30 allows EMI ingress from adjacent power cables in the rack.

Step-by-Step Replacement Procedure

1. Inhibit the channel. Before disconnecting anything, place the affected channel in bypass/inhibit mode at the System 1 or rack-level configuration. This prevents a spurious danger trip during the swap.
2. Document the existing cable routing. Photograph the cable path through the rack. The 16925-30’s 30-inch length is specific — incorrect routing can introduce mechanical stress on the connectors.
3. Disconnect at the monitor module first. The monitor-end connector is the higher-wear point. Inspect the pin contacts for oxidation (green or black discoloration) and the connector shell for cracks.
4. Disconnect at the I/O rack or termination board. Check the mating connector on the termination board for bent pins or debris. Clean with contact cleaner if necessary before installing the new cable.
5. Install the 16925-30. Seat both connectors fully until the locking mechanism engages. Do not force — misaligned pins will damage both the cable and the mating connector.
6. Verify gap voltage. With the transducer in position, measure DC gap voltage at the monitor input. Confirm it falls within the calibrated range for your probe/driver combination (typically -10 VDC ±1 VDC for standard 8mm systems at 2 mm gap).
7. Remove inhibit and confirm OK status. Monitor should return to OK state within one scan cycle. If the Danger LED remains on after a valid gap voltage is confirmed, suspect the monitor card itself.
8. Log the replacement. Record the cable serial number, replacement date, and gap voltage reading in your maintenance management system. Bently Nevada recommends periodic cable inspection as part of the 3300 Series preventive maintenance schedule.

Configuration Notes

The 16925-30 is a passive cable — it carries no active electronics and requires no firmware configuration. However, confirm the following after installation:

• The monitor channel’s transducer type setting (8mm, 11mm, 14mm) must match the installed proximity probe. A cable swap does not reset this parameter, but it is worth verifying if the channel history is unclear.
• If the rack uses a 3300/25 Keyphasor module on the same I/O rack, confirm the Keyphasor signal is still present after the cable work — adjacent connector disturbance can shift the Keyphasor cable seating.
• For systems integrated with System 1 software, force a data poll after the replacement to confirm the channel is reporting correctly in the historian.

Reliability in Harsh Conditions

The 16925-30 is not a general-purpose instrumentation cable. It is built to survive the specific abuse profile of a heavy industrial rack environment — and that distinction matters when you are sourcing a replacement under pressure.

Vibration resistance: The keyed, locking multi-pin connectors are designed to maintain electrical continuity under continuous vibration loads consistent with machinery hall environments. Fretting corrosion — the primary failure mode for instrumentation connectors in vibrating structures — is mitigated by the connector’s contact geometry and gold-plated pin finish on OEM units.

Thermal cycling: Panel and rack environments in tropical process plants can see ambient temperatures from 15°C during air-conditioned operation to 55°C+ during HVAC failures or outdoor cabinet exposure. The PVC jacket and connector materials are rated for this range without dimensional change that would stress the connector mating interface.

Humidity and condensation: Coastal and offshore installations subject instrumentation to sustained high humidity. The foil-plus-braid shield construction provides a continuous moisture barrier around the signal conductors, and the drain wire termination at the monitor end ensures the shield is properly grounded rather than acting as an antenna for conducted interference.

EMI environment: 3300 Series racks are frequently installed in the same panels as variable frequency drives, motor starters, and high-current bus bars. The 16925-30’s shielding is specified to reject the common-mode interference generated by these sources, maintaining signal integrity on the low-level proximity probe output without requiring additional conduit or separation.

Every unit we ship has been visually inspected for jacket integrity, connector shell condition, and pin contact quality. We do not ship cables with visible wear, connector damage, or non-OEM markings.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. Stock is physically on our shelf, inspected, and ready to pack.

Dispatch timeline: Orders confirmed with payment or purchase order before 14:00 CST ship the same business day. Orders confirmed after 14:00 CST ship the following morning. We do not hold orders for batch processing.

Carrier options:

• DHL Express Worldwide: 2–4 days to most of Asia, Middle East, and Europe. 4–6 days to the Americas. Full online tracking from pickup to delivery.
• FedEx International Priority: Comparable transit times with FedEx’s industrial customer service infrastructure. Preferred by customers with existing FedEx account billing.
• Customer-nominated freight: If your facility has a preferred carrier account, we can hand off to your nominated agent at Xiamen. Provide account number and pickup instructions at order confirmation.

Export documentation: Commercial invoice, packing list, and certificate of conformance are prepared for every shipment. HS code classification is handled by our logistics team. For customers in countries requiring additional import documentation (SABER, COC, etc.), notify us at order placement and we will coordinate accordingly.

Emergency freight: For genuine production-down situations, contact us directly via WhatsApp. We can arrange same-day DHL pickup with pre-booked priority routing. This service is available 7 days a week for confirmed emergency orders.
