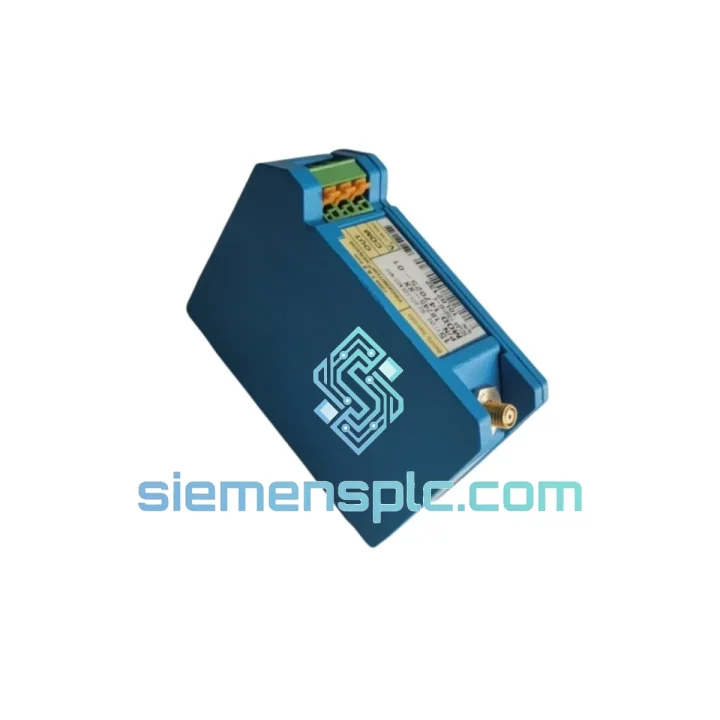

Bently Nevada 18745-XX / 147025-01 Proximitor Sensor – 3300 XL Series

Bently Nevada 18745-XX / 147025-01 Proximitor Sensor — Signal Conditioning Core of the 3300 XL Transducer System

The Bently Nevada 18745-XX / 147025-01 is the signal-conditioning module at the heart of the 3300 XL proximity transducer system. Its primary function within a machinery protection loop is to convert the raw RF oscillator signal from an eddy-current probe into a calibrated DC voltage proportional to the gap between the probe tip and the observed target surface. This DC output is then fed directly into monitor rack inputs — such as the Bently Nevada 3500 series — where threshold comparators, gap alarms, and danger relays act on the conditioned signal in real time.

In rotating machinery protection, the Proximitor sensor occupies a deterministic position in the signal chain: it sits between the field-mounted probe and the rack-mounted monitor, and its linearity, temperature stability, and output impedance characteristics directly govern the accuracy of vibration amplitude readings, axial position measurements, and speed/phase reference signals. Any deviation in the Proximitor’s transfer function — whether from counterfeit components, thermal drift, or supply voltage instability — propagates uncorrected into the monitor’s alarm logic. This is why sourcing a verified, genuine unit is not a procurement preference but an engineering requirement.

The 18745-XX suffix structure indicates a family of variant configurations differentiated by cable length, connector type, and target material calibration. The companion part number 147025-01 identifies the specific assembly revision in Bently Nevada’s internal documentation system. Both designations refer to the same physical Proximitor module; the dual-number convention is common across the 3300 XL product line and reflects the transition from legacy catalog numbering to the current Baker Hughes part management schema.

Mechanically, the 18745-XX housing is designed for installation in junction boxes, marshalling panels, or field enclosures in proximity to the machinery being monitored. The unit draws its operating power from the -24 VDC supply rail provided by the connected monitor rack, eliminating the need for a separate field power supply. The output signal swings between approximately -2 VDC (near gap) and -18 VDC (far gap) across the linear measurement range, with the nominal mid-range gap typically set at -10 VDC during commissioning. This output range is directly compatible with the differential input stages of all 3500 series monitor cards without signal scaling.

siemensplc.com maintains verified stock of the Bently Nevada 18745-XX / 147025-01 sourced through documented industrial channels. Each unit is physically inspected for label integrity, connector condition, and housing authenticity before dispatch. A 12-month warranty is included with every shipment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 18745-XX Proximitor operates on the eddy-current principle: an internal LC oscillator drives a high-frequency electromagnetic field through the probe coil. When a conductive target enters this field, eddy currents are induced on the target surface, loading the oscillator and reducing its amplitude. The Proximitor’s demodulation circuit converts this amplitude variation into a proportional DC voltage — the output signal that the monitor rack reads as gap distance or vibration displacement.

EMC Design Architecture: The 3300 XL Proximitor incorporates a shielded housing with internal ground plane separation between the oscillator stage and the output buffer stage. This two-stage shielding approach attenuates conducted and radiated interference from adjacent field wiring, which is critical in environments where variable-frequency drives, high-current motor starters, and arc-welding equipment operate in close proximity to the sensor. The output buffer stage presents a low 100 Ω source impedance, which makes the signal resistant to capacitive coupling from parallel cable runs over distances up to 300 m.

Thermal Stability: The internal oscillator components are selected for low temperature coefficient of frequency (TCF). Frequency drift in the oscillator directly translates to apparent gap shift in the output signal. The 3300 XL design maintains output stability within ±0.5% of full-scale across the full -35 °C to +85 °C operating range, which is essential for axial position monitoring applications where thermal expansion of the machine shaft must be distinguished from actual thrust movement.

Supply Voltage Rejection: The Proximitor’s internal voltage regulator isolates the oscillator and demodulator circuits from fluctuations on the -24 VDC supply rail. Supply variations of ±1 VDC produce less than 25 mV of output shift, preventing false alarm conditions during transient load events on the monitor rack power supply.

Cable System Impedance Matching: The 18745-XX is factory-calibrated as a system with specific probe and extension cable lengths. The total cable system capacitance is a parameter in the oscillator’s resonant circuit; using non-matched cable lengths shifts the resonant frequency and compresses the linear output range. This is why the suffix designation matters: each variant is calibrated for a defined probe-cable-Proximitor combination, and substituting components outside the matched set degrades measurement accuracy.

System Integration Benefits

• Direct rack compatibility: The -2 VDC to -18 VDC output range maps directly to the differential input specifications of all Bently Nevada 3500 series monitor cards, requiring no signal scaling, attenuators, or intermediate signal conditioners at the rack input terminals.
• Deterministic signal latency: The Proximitor’s analog output has no digital conversion latency. The DC output tracks shaft displacement in real time, with a signal bandwidth of DC to 10 kHz, supporting accurate measurement of subsynchronous vibration components and blade-pass frequencies in high-speed machinery.
• Plug-compatible field replacement: The 18745-XX connector and housing geometry conform to the 3300 XL mechanical standard, allowing field replacement without re-routing conduit or modifying junction box wiring. Replacement time in a planned maintenance window is typically under 30 minutes per channel.
• Dual-use measurement capability: A single Proximitor channel can simultaneously provide gap (DC component) and vibration (AC component) information to the monitor rack. The 3500 monitor cards separate these components internally, enabling both position and dynamic vibration alarms from one field device — reducing installed sensor count and associated wiring cost.
• API 670 compliance pathway: When installed as part of a complete 3300 XL probe-cable-Proximitor system, the 18745-XX contributes to an API 670-compliant machinery protection loop. This is a contractual requirement on many turbomachinery installations in oil & gas, petrochemical, and power generation facilities.
• Diagnostic transparency: The Proximitor’s output voltage at rest (no vibration, static gap) provides a direct, measurable indicator of probe-to-target gap. Technicians can verify correct installation gap during commissioning using a standard DC voltmeter at the Proximitor output terminals, without requiring the monitor rack to be powered or configured.
• Long cable run tolerance: The 100 Ω output impedance and the monitor rack’s high-impedance differential input allow signal transmission over cable runs up to 300 m without signal degradation beyond specification limits. This supports installations where the monitor rack is located in a remote control room far from the machinery.
• Interoperability with third-party systems: The standard ±24 VDC proximity output signal is accepted by most DCS and safety system analog input cards from major vendors including Emerson DeltaV, Honeywell Experion, ABB 800xA, and Yokogawa CENTUM. This allows the Proximitor output to be monitored simultaneously by both the Bently Nevada protection rack and the plant DCS historian without signal splitting hardware.

Quality Assurance & Global Logistics

Every Bently Nevada 18745-XX / 147025-01 unit dispatched from siemensplc.com is a genuine, factory-original component. Our procurement process excludes refurbished-as-new, remarked, or unverified surplus stock. Physical inspection covers label authenticity, part number and revision marking, connector pin condition, and housing integrity. Units with any indication of prior field installation are segregated and not offered as new stock.

Shipments originate from Xiamen, China, using DHL Express, FedEx International Priority, or UPS Worldwide Expedited depending on destination and urgency. In-stock units are dispatched within 2–3 business days of order confirmation and payment. Transit times to major industrial hubs are typically 3–5 business days to Southeast Asia, 4–6 days to the Middle East and Europe, and 5–7 days to North America. Bulk orders of 5 units or more qualify for sea freight consolidation with reduced per-unit logistics cost.

Each shipment includes a commercial invoice with full part number and revision details, a packing list, and a 12-month warranty certificate. Export documentation including HS code classification and customs value declaration is prepared for every international shipment. EAR99 classification applies to standard Proximitor sensor components under US Export Administration Regulations, with no license required for most destinations.

The 12-month warranty covers manufacturing defects and verified DOA (Dead on Arrival) conditions. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement units are dispatched from stock where available, minimizing plant downtime exposure.
