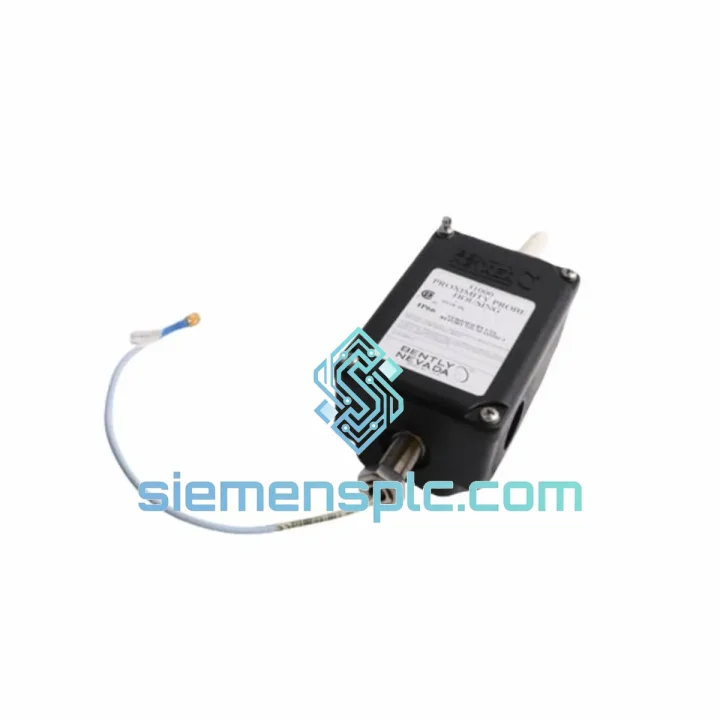

Bently Nevada 31000-28-05-35-032-03-02 Proximity Probe Housing

31000-28-05-35-032-03-02 Proximity Probe Housing — Every Hour of Downtime Costs You Money. We Ship Today.

Your turbine is down. The DCS is throwing a gap voltage fault or a not OK alarm on the 3300 Series monitor. Maintenance has traced it to the proximity probe housing assembly — part number 31000-28-05-35-032-03-02. You need a verified replacement, not a promise. We stock this unit in Xiamen and can have it moving via DHL Express within hours of order confirmation.

At siemensplc.com, we specialize in exactly this scenario: the 2 AM call, the production line that cannot wait, the procurement team that needs a traceable part with documentation — fast. This is not a catalog listing. This is a ready-to-ship unit.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery protection systems, these are the failure modes and replacement pitfalls that catch engineers off guard with the 31000-28-05-35-032-03-02:

Common Fault Codes on the 3300 Monitor:

• Not OK (NOK) LED lit, gap voltage out of range: Most common. The probe tip has drifted out of the 0.25–2.0 mm linear range, or the housing has shifted due to vibration-induced loosening of the locknut. Before condemning the probe, re-gap to the nominal 1.0 mm (–10.0 VDC) and recheck. If NOK persists, the probe coil is likely open or shorted — replace the housing assembly.
• Intermittent signal dropout at high shaft speed: Check the cable connector at the junction box. The 5 m extension cable on this assembly uses a standard Bently Nevada bayonet connector. Fretting corrosion on the connector pins is a known failure mode in high-vibration environments. Clean with contact cleaner and reseat before replacing the full assembly.
• Sensitivity drift (>5% from 200 mV/mil): Indicates probe coil degradation, typically from thermal cycling above 150°C. Verify the installation environment does not exceed the –35°C to +177°C rated range. If the bearing housing runs hot, consider adding a thermal standoff.

Replacement Procedure — Key Steps:

• Step 1 — De-energize and lock out: Confirm the 3300 monitor channel is in bypass mode before removing the probe. Removing a live probe will trigger a trip on machinery protection systems configured for one-out-of-one voting.
• Step 2 — Record the existing gap voltage: Note the gap voltage before removal (target: –10.0 VDC ± 0.5 V at nominal gap). This is your baseline for the new probe installation.
• Step 3 — Thread engagement: The 3/8–24 UNF thread requires careful hand-starting to avoid cross-threading in the housing boss. Use a calibrated torque wrench — do not over-torque. Typical installation torque is 2.0–2.5 N·m.
• Step 4 — Re-gap precisely: Use a non-conductive feeler gauge or a calibrated gap meter. Set the probe face-to-target gap to achieve –10.0 VDC on the Proximitor output. Lock the jam nut firmly after gapping — vibration will back off an unsecured probe within hours.
• Step 5 — Verify system response: Bring the monitor channel out of bypass. Confirm the OK relay energizes and the gap voltage is stable. Run the machine up to operating speed and verify the dynamic signal is clean on the System 1 display.
• No DIP switch or firmware configuration required for this passive probe housing assembly — the Proximitor (3300 XL 8mm or 11mm) handles all signal conditioning. Ensure the Proximitor driver is matched to the 28 mm probe diameter specified in this part number.

Reliability in Harsh Conditions

The 31000-28-05-35-032-03-02 is engineered for the environments where most sensors fail. The stainless steel housing construction resists corrosion in wet gas, sour service, and high-humidity installations. The cable sheathing is rated for continuous flexing in high-vibration applications — a critical requirement on compressor trains where the probe cable is exposed to broadband mechanical excitation.

Thermal performance is validated across the full –35°C to +177°C range, covering arctic pipeline compressor stations through to hot-section turbine bearing pedestals. The 3/8–24 UNF thread form maintains clamp load under thermal cycling, preventing the probe migration that causes gap drift over time.

In offshore and coastal installations, the bayonet connector system provides IP67-equivalent ingress protection when properly mated and locked. We have supplied this assembly to petrochemical plants in the Middle East, LNG terminals in Southeast Asia, and power generation facilities in Europe — all environments where the probe must perform without intervention between scheduled turnarounds.

Every unit we ship has been stored in a climate-controlled warehouse. No shelf-degraded stock. No units that have been sitting in a humid container yard. The probe coil and cable assembly are inspected before dispatch to confirm the gap voltage output is within factory specification.

Global Express Logistics

Our Xiamen warehouse is positioned for fast export to every major industrial region. Here is how the logistics process works from the moment you confirm your order:

• Order confirmation → same-day pick and pack: Orders confirmed before 15:00 CST are picked, inspected, and packed the same day. Export documentation — commercial invoice, packing list, certificate of origin — is prepared in parallel.
• DHL Express / FedEx International Priority: We use both carriers and select the fastest routing for your destination. Typical transit times: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, Americas 3–5 days.
• Customs clearance support: We provide HS code classification (HS 9031.80 for proximity transducers), accurate declared values, and full export documentation to minimize customs hold risk. For destinations with import licensing requirements, we advise in advance.
• Tracking from dispatch: You receive the AWB number within 2 hours of handover to the carrier. We monitor the shipment and flag any customs exceptions proactively.
• Emergency freight options: For critical shutdowns where standard express is not fast enough, we can arrange charter courier or hand-carry service to your site. Contact us directly to discuss.

We have shipped to refineries in Saudi Arabia, power plants in Germany, paper mills in Indonesia, and mining operations in Chile. The process is the same every time: fast, documented, and tracked end-to-end.
