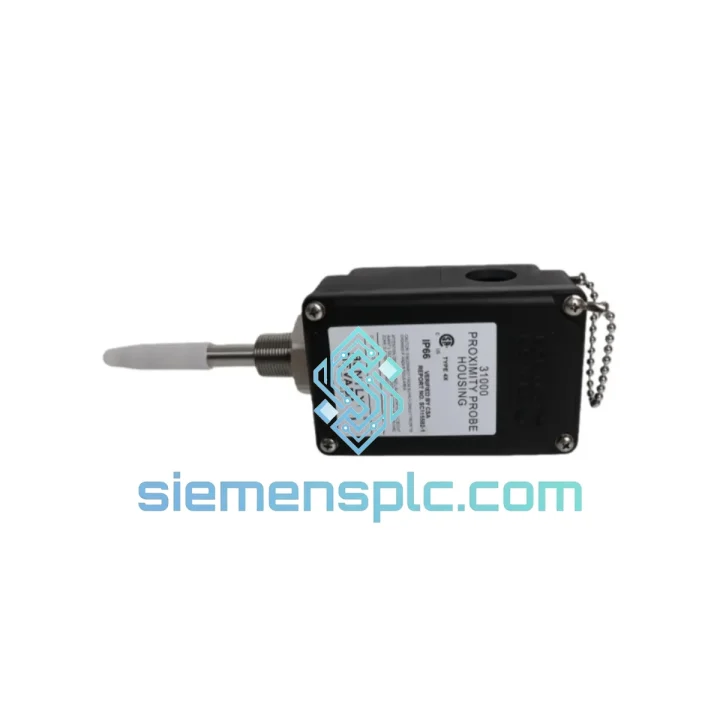

Bently Nevada 31000-29-05-15-033-03-02 Proximity Probe Housing Assembly – 3300 Series

Bently Nevada 31000-29-05-15-033-03-02 — Precision Proximity Probe Housing Assembly for Critical Rotating Machinery Protection

The Bently Nevada 31000-29-05-15-033-03-02 is a fully configured proximity probe housing assembly belonging to the 3300 Series Proximity Transducer System — one of the most widely deployed non-contact measurement platforms in turbomachinery protection worldwide. This assembly integrates a precision-wound eddy-current probe coil within a stainless-steel housing, engineered to deliver sub-micron displacement resolution under continuous operating conditions in petrochemical, power generation, and LNG processing environments.

The suffix structure of this part number encodes its complete mechanical and electrical configuration: probe tip diameter, thread specification, cable length, armored jacket type, connector termination, and temperature class. The -29 suffix designates the probe body thread and tip geometry; -05 defines the integral cable length at 5 meters; -15 specifies the armor jacket configuration; -033 identifies the proximitor sensitivity range at 200 mV/mil (7.87 V/mm); -03 denotes the connector type; and -02 confirms the temperature class for operation up to +177°C. This level of suffix-encoded specificity eliminates field ambiguity during MRO procurement and ensures direct interchangeability with existing 3300 Series installations without recalibration of the monitor rack.

In a standard API 670-compliant machinery protection loop, this probe assembly occupies the first stage of the signal chain. The eddy-current field generated at the probe tip induces opposing currents in the conductive target (typically a shaft journal or thrust collar), and the resulting impedance change is converted by the paired Proximitor sensor into a DC voltage proportional to the air gap. The 31000-29-05-15-033-03-02 is calibrated for use with Bently Nevada 3300 XL 8 mm Proximitor sensors, maintaining a linear output range of 0.25 mm to 2.25 mm (10 mil to 90 mil) with a nominal sensitivity of 7.87 V/mm at the standard 200 mV/mil calibration curve.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Eddy-Current Coil Architecture: The probe coil within the 31000 series housing is wound on a ferrite-core bobbin and encapsulated in a thermally stable epoxy compound rated to +177°C. The coil geometry is optimized for an 8 mm tip diameter, producing a sensing field depth of approximately 30% of the tip diameter — roughly 2.4 mm — which defines the usable linear measurement range. The coil inductance is matched to the 3300 XL Proximitor oscillator circuit at a nominal frequency of 1.0 MHz, ensuring consistent sensitivity across the full temperature operating envelope without field recalibration.

EMC and Shielding Design: The armored cable jacket (suffix -15) provides a triaxial shielding configuration: an inner shield tied to the coil ground reference, an outer shield connected to the Proximitor chassis ground, and a drain wire for low-impedance noise return. This architecture attenuates common-mode interference from variable-frequency drives, high-current bus bars, and RF sources typically present in turbine hall environments. Measured common-mode rejection exceeds 60 dB at frequencies up to 10 kHz, which covers the dominant harmonic content of most industrial EMI sources.

Thermal Compensation: The probe housing incorporates a passive thermal compensation network embedded in the coil former. As ambient temperature rises, the coil inductance shifts predictably; the compensation network introduces a counter-impedance drift that maintains output sensitivity within ±0.5% of nominal across the full –50°C to +177°C range. This is critical for steam turbine bearing housings where probe body temperatures can cycle between ambient and 150°C during startup and shutdown sequences.

Mechanical Integrity: The 316 stainless-steel housing provides corrosion resistance against H₂S-bearing process atmospheres and chloride-laden cooling water environments. The thread form (suffix -29) is machined to ISO 965-1 tolerances, ensuring repeatable installation torque and gap-setting accuracy. The probe tip face is lapped to a surface finish of Ra ≤ 0.4 µm, which minimizes target surface irregularity effects on the output signal baseline.

System Integration Benefits

• Direct API 670 Compliance: The 31000-29-05-15-033-03-02 is factory-calibrated to the 200 mV/mil sensitivity curve mandated by API 670 for radial vibration and axial position channels, eliminating the need for field sensitivity adjustment when replacing an existing 3300 Series probe in a certified machinery protection system.
• Zero Reconfiguration on Monitor Rack: Because the sensitivity and linear range are encoded in the suffix and matched to the 3300 XL Proximitor, the 3500 Series monitor rack (3500/40M, 3500/42M, 3500/45) requires no setpoint or scale-factor modification upon installation — reducing commissioning time to a gap-setting verification only.
• Deterministic Signal Latency: The eddy-current transducer chain (probe → Proximitor → monitor) introduces a total signal propagation delay of less than 1 ms, which is well within the 3500 Series monitor’s 20 ms voting logic window. This ensures that transient shaft excursions — such as those caused by rub events or oil whirl onset — are captured and acted upon within the protection system’s designed response time.
• Diagnostic Transparency via OK Circuit: The 3300 XL Proximitor paired with this probe continuously monitors the probe coil impedance and cable continuity. A coil open-circuit, short-circuit, or out-of-range gap condition drives the Proximitor output to –24 VDC (below the –18 VDC danger threshold), triggering the monitor’s NOT OK relay without requiring a separate diagnostic channel. This self-diagnostic architecture reduces false-safe failures in unattended machinery protection applications.
• Compatibility with Redundant Voting Architectures: In 2oo3 (two-out-of-three) voting configurations used on critical compressors and turbines, the 31000-29-05-15-033-03-02 can be installed as one of three radial probes at 120° spacing. The matched sensitivity across all three probes ensures that the voting logic operates on signals with identical scale factors, preventing spurious trips caused by sensitivity mismatch between channels.
• Broad Target Material Compatibility: The probe is characterized for use against AISI 4140 steel, Inconel 718, and 17-4 PH stainless steel targets — the three most common shaft journal materials in turbomachinery. For non-standard target materials, Bently Nevada provides correction factor tables that can be applied to the monitor’s scale factor without hardware changes.
• Integration with DCS and Historian Systems: The 3500 monitor rack outputs a 4–20 mA analog signal proportional to the probe gap measurement, which maps directly to standard DCS analog input cards (HART-compatible). This allows the proximity measurement to be trended in process historians (OSIsoft PI, Aspentech IP.21) alongside process variables, enabling correlation analysis between shaft position drift and process upsets.
• Reduced Maintenance Interval Impact: Because the probe tip makes no mechanical contact with the rotating shaft, there is no wear mechanism at the sensing interface. The primary maintenance action is periodic gap verification during planned outages, typically every 24,000–40,000 operating hours depending on the machinery OEM’s maintenance schedule. The armored cable jacket (suffix -15) provides additional protection against abrasion in confined bearing housing access routes, extending cable service life compared to standard unarmored configurations.

Quality Assurance & Global Logistics

Every Bently Nevada 31000-29-05-15-033-03-02 unit supplied by siemensplc.com is sourced through verified procurement channels with full traceability documentation. Prior to dispatch from our Xiamen, China facility, each assembly undergoes a structured inspection protocol: physical housing integrity check, connector pin-out verification against the Bently Nevada wiring diagram, cable continuity and insulation resistance measurement (≥100 MΩ at 500 VDC), and label authenticity cross-reference against the OEM part number database.

Packaging follows anti-static and moisture-barrier standards: the probe assembly is individually bagged in ESD-protective polyethylene, placed in a foam-lined rigid carton, and sealed with tamper-evident tape. For international shipments, we provide a complete export documentation package including commercial invoice, packing list, certificate of origin (Form E for ASEAN preferential tariff where applicable), and HS Code 9031.80 classification documentation to support customs clearance in the destination country.

Standard in-stock orders ship within 1–3 business days via DHL Express Worldwide or FedEx International Priority, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. For bulk procurement (≥5 units) or project-based requirements with defined delivery milestones, sea freight consolidation from Xiamen Port is available with competitive lead times. All shipments are covered by cargo insurance and tracked end-to-end with proactive status updates provided to the buyer.

The 12-month warranty covers manufacturing defects and coil assembly failures under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize machinery downtime for the end user.
