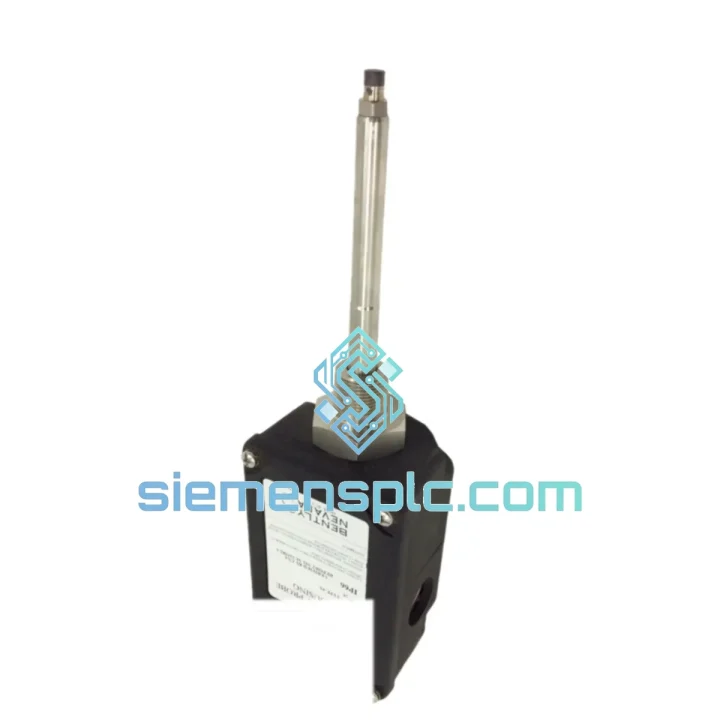

Bently Nevada 32000-16-05-05-080-03-02 Proximity Probe Housing

32000-16-05-05-080-03-02 Proximity Probe Housing — Stop the Clock on Your Downtime

Every hour a turbine or compressor sits idle costs real money. On a mid-size gas turbine train, unplanned downtime runs $50,000–$200,000 per day in lost production alone — before you factor in maintenance labor, penalty clauses, and the political fallout inside the plant. When the Bently Nevada 3300 XL proximity transducer loop fails, the bottleneck is almost never the monitor rack. It’s the probe housing assembly. The 32000-16-05-05-080-03-02 is the part that sits in the bearing housing, takes the heat, absorbs the oil mist, and eventually gives out. We stock it. We ship it today.

siemensplc.com maintains ready inventory of the Bently Nevada 32000-16-05-05-080-03-02 Metric Proximity Probe Housing Assembly specifically because lead times from OEM distribution channels routinely stretch 8–16 weeks. That gap is unacceptable during a forced outage. Our Xiamen warehouse dispatches via DHL Express or FedEx International Priority within 24 hours of order confirmation — putting the part on your bench in 2–5 business days regardless of whether you’re in Southeast Asia, the Middle East, or Europe.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting and Replacement Tips

After a decade of field calls on rotating machinery, the failure patterns on the 32000-series probe housing are predictable. Here is what to check before you pull the trigger on a replacement — and what to watch when you install the new one.

Common Fault Signatures:

• Gap voltage drifting outside -10 plus or minus 2 VDC at nominal gap — Most likely cause: probe tip contamination from oil coke buildup, or probe tip cracking from thermal cycling. Clean the tip first. If gap voltage does not stabilize within 0.5 V, the probe is done.
• 3500 monitor showing Not OK relay trip with no actual vibration event — Check the coaxial connector at the probe-to-extension cable junction. Fretting corrosion on the center pin is the number one intermittent fault on assemblies over five years old. Wiggle the connector while watching the gap voltage on the monitor. If it flickers, the connector is the culprit, not the probe body.
• High noise floor on the vibration channel above 0.5 mil pk-pk at rest — Verify the extension cable armor is not chafing against a grounded surface. A single ground fault on the coax shield injects 50/60 Hz noise directly into the signal. Re-route and re-clamp before condemning the probe.
• Scale factor error after replacement — The 32000-16-05-05-080-03-02 must be used as a matched system with the correct Proximitor driver (3300 XL 8mm or 11mm, depending on your loop). Mixing probe diameters or using a non-matched driver shifts the scale factor and invalidates your vibration alarm setpoints. Confirm the Proximitor part number before installation.

Replacement Procedure — Key Steps:

• De-energize the Proximitor driver before disconnecting the probe. The -24 VDC supply is live at the connector; shorting the center pin to ground during hot-swap can damage the driver output stage.
• Record the existing gap voltage before removal. Target gap is typically 1.0–1.5 mm (gap voltage -10 to -12 VDC). Use the same gap on the new probe to avoid re-alarming the monitor during startup.
• Apply anti-seize compound (Molykote or equivalent) to the metric threads. Bearing housing threads are often stainless or Inconel — galling is a real risk without lubrication.
• Torque the locknut to OEM specification, typically 20–25 N·m. Under-torqued probes migrate axially under vibration, causing slow gap drift that looks like a real shaft event.
• After installation, verify gap voltage, then perform a static calibration check: manually deflect the shaft if accessible and confirm the monitor reads the correct displacement in mils or microns.
• No firmware or DIP switch configuration is required for the probe itself — all calibration is handled by the Proximitor driver and the 3500 monitor rack configuration. If you are replacing a probe in an existing loop, the monitor configuration does not need to change provided the replacement is a like-for-like 32000-16-05-05-080-03-02.

Reliability in Harsh Conditions

The 32000-16-05-05-080-03-02 was not designed for a clean room. It was designed for the inside of a bearing housing on a machine that runs 8,760 hours a year without stopping. The probe tip ceramic fill maintains dimensional stability and dielectric properties from cryogenic LNG service (-35 C) up to the sustained high temperatures found in steam turbine bearing pedestals (+177 C at the tip). The armored coaxial cable resists continuous immersion in turbine oil, hydraulic fluid, and the hydrocarbon mist that permeates compressor trains in petrochemical service.

Vibration endurance is not a marketing claim — it is a functional requirement. The probe housing is subjected to the same broadband vibration spectrum it is measuring, continuously, for years. The integral coaxial connector design eliminates the mechanical weak point of a field-assembled connector, which is the primary failure mode on competitive assemblies that use field-terminated cables. The armored outer jacket is rated for continuous flexing, which matters in applications where the cable must route through a vibrating bearing cap.

EMI immunity is achieved through the coaxial construction and the inherent noise rejection of the differential gap voltage measurement. In environments with heavy VFD switching noise or high-power electrical equipment nearby, the 3300 XL system signal conditioning rejects common-mode interference that would corrupt a conventional 4–20 mA sensor output. Units are tested against IEC 61000-4 series immunity requirements before leaving the factory. The result is a sensor that holds calibration in the same cabinet as 690 V VFD drives — a real-world condition that eliminates many competing eddy-current products from consideration.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct air freight connections to major hubs in Europe (Frankfurt, Amsterdam), the Middle East (Dubai), Southeast Asia (Singapore, Kuala Lumpur), and North America (Los Angeles, Chicago). This geography is deliberate: it minimizes transit time to the industrial clusters where rotating machinery is concentrated.

• Southeast Asia (Singapore, Thailand, Indonesia, Malaysia): DHL Express — 2–3 business days door-to-door
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): FedEx International Priority — 3–4 business days
• Europe (Germany, Netherlands, UK, Italy): DHL Express — 3–5 business days
• North America (USA, Canada): FedEx International Priority — 4–5 business days
• South Asia (India, Pakistan, Bangladesh): DHL Express — 3–4 business days

All shipments include a commercial invoice, packing list, and certificate of conformance. For customers requiring an MSDS, country-of-origin certificate, or specific customs documentation for import clearance, notify us at order placement — we prepare these documents same-day. Export classification for the 32000-16-05-05-080-03-02 is EAR99 (no export license required for most destinations). HS Code: 9031.80.

For critical plant shutdowns where every hour counts, contact us via WhatsApp for real-time shipment tracking and customs pre-clearance coordination. We have handled emergency shipments to active plant outages in Qatar, Indonesia, and India with customs cleared and parts on-site within 72 hours of order.
