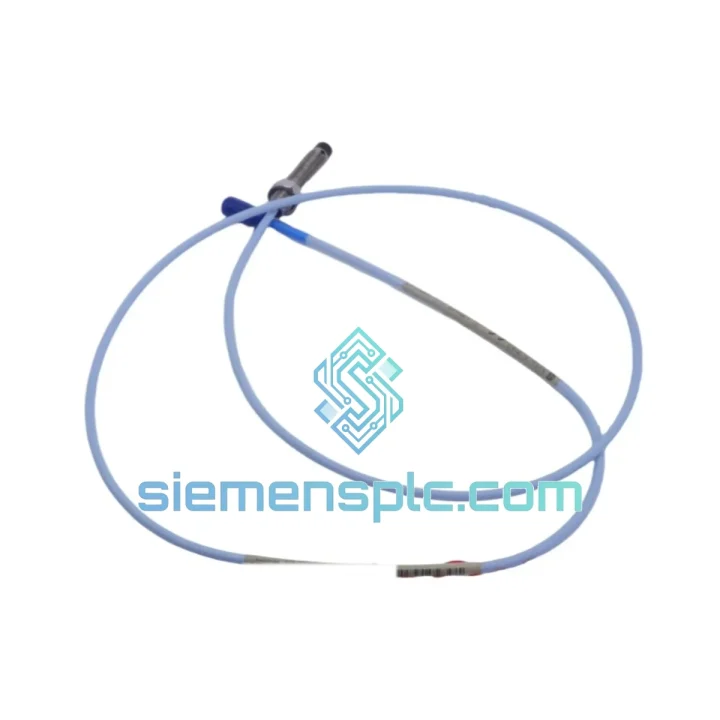

Bently Nevada 330101-00-10-05-02-05 Proximity Transducer – 3300 XL Series

Bently Nevada 330101-00-10-05-02-05 — Eddy Current Proximity Transducer for Rotating Machinery Protection

The Bently Nevada 330101-00-10-05-02-05 is a 5 mm tip-diameter, 1.0 m integral-cable eddy current proximity transducer belonging to the 3300 XL Series condition monitoring platform. Its operating principle is grounded in electromagnetic induction: a high-frequency oscillator (typically 1.0 MHz) drives a coil wound at the probe tip, generating an alternating magnetic field. When a conductive target — the rotating shaft — enters this field, eddy currents are induced on the shaft surface, loading the oscillator circuit and producing a voltage output that is linearly proportional to the gap distance between probe tip and shaft surface.

This non-contact measurement architecture eliminates all mechanical wear mechanisms inherent to contact-type displacement sensors. The transducer operates continuously without lubrication, seal replacement, or mechanical recalibration, making it the preferred sensing element in API 670-governed machinery protection systems for steam turbines, gas turbines, centrifugal compressors, and large pumps. The part number suffix -00-10-05-02-05 encodes the following configuration: standard armored cable, 1.0 m cable length, 5 mm tip diameter, metric thread, and standard temperature range — parameters that must be matched precisely to the driver/oscillator-demodulator for correct system calibration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Oscillator-Demodulator Coupling Architecture: The 330101-00-10-05-02-05 does not function as a standalone sensor — it forms one leg of a three-component impedance bridge together with the extension cable (330130 series) and the driver/oscillator-demodulator (330180 series). The probe coil inductance, the cable’s distributed capacitance, and the driver’s internal reference network are factory-matched as a system. Substituting any component from a different calibration set introduces a scale factor error that cannot be corrected by field adjustment alone. This tight coupling is intentional: it ensures that the −18 VDC output at mid-gap is reproducible across units without field calibration, a critical requirement for API 670 alarm setpoint consistency.

EMC Design and Shielding: The integral armored cable uses a triaxial construction — inner conductor, driven shield (held at the same potential as the inner conductor by the driver’s guard amplifier), and outer ground shield. The driven shield eliminates cable capacitance from the measurement circuit, extending the effective frequency response to 10 kHz and suppressing common-mode interference from adjacent power cables and variable-frequency drives. In environments with high electromagnetic interference (VFD-driven motors, large transformer banks), this architecture maintains measurement accuracy without additional external shielding conduit.

Thermal Stability: The probe body is machined from 316 stainless steel with a PEEK (polyether ether ketone) tip insert. PEEK’s low thermal expansion coefficient (50 × 10⁻⁶ /°C) and high dielectric stability across the −35 °C to +120 °C operating range prevent thermally induced drift in the coil geometry, which would otherwise shift the scale factor. This is particularly relevant in steam turbine bearing housings where ambient temperatures can cycle between cold-start and full-load conditions repeatedly over the machine’s service life.

Target Material Sensitivity: The eddy current field penetration depth (skin depth δ) is a function of target material resistivity and magnetic permeability: δ = √(ρ / πfμ). For AISI 4140 steel at 1 MHz, δ ≈ 8 μm, meaning the measurement is sensitive only to the outermost surface layer of the shaft. Surface finish (Ra ≤ 0.8 μm recommended per API 670), plating, or residual magnetism in the shaft material will directly affect the output. Bently Nevada’s factory calibration is performed against a certified 4140 steel target; operators using shafts of different alloy composition must apply a material correction factor or request a custom calibration.

System Integration Benefits

• Zero-wear measurement loop: No physical contact with the rotating shaft means bearing journal surfaces are not disturbed by the sensing element. Sensor service life is determined by cable fatigue and connector integrity, not by mechanical wear — typical field service intervals exceed 10 years in clean environments.
• DC-coupled output for static position measurement: The DC-to-10 kHz frequency response allows simultaneous measurement of slow-roll eccentricity (sub-1 Hz) and high-frequency vibration components in a single channel, eliminating the need for separate position and vibration transducers on the same bearing plane.
• Direct compatibility with 3500 Series rack: The 330101-00-10-05-02-05 is fully interchangeable with 3500/42 Proximitor I/O modules and 3500/40 Proximitor monitors without firmware changes or channel reconfiguration, enabling drop-in replacement in existing 3500 Series machinery protection racks.
• API 670 alarm setpoint traceability: Factory scale factor certification (7.87 V/mm ± 1%) provides a documented basis for alarm and trip setpoint calculations per API 670 Table 1, supporting regulatory compliance documentation for turbomachinery in refinery and power generation applications.
• Deterministic diagnostic transparency: The driver’s OK output relay de-energizes when probe gap falls outside the linear range (probe-to-shaft gap too small or too large) or when cable continuity is lost, providing a hardware-level channel health signal that is independent of the vibration measurement path — a requirement for SIL-rated protection loops.
• Reduced installation footprint: The 5 mm tip diameter allows installation in bearing housings with radial clearances as small as 8 mm, accommodating compact turbomachinery designs where larger 8 mm probes cannot be physically mounted without housing modification.
• Broad target material database: Bently Nevada publishes correction factors for over 40 common shaft alloys, enabling the 330101 series to be deployed on non-standard materials (Inconel, titanium, duplex stainless) with documented accuracy without requiring custom probe fabrication.
• Hazardous area certification pathway: The 330101 series is the base transducer for Bently Nevada’s ATEX/IECEx-certified proximity system configurations. When paired with certified barriers and drivers, the same probe body is used in Zone 1 and Zone 2 classified areas, avoiding the need for separate probe inventory for safe-area and hazardous-area installations.

Quality Assurance & Global Logistics

Every unit of the 330101-00-10-05-02-05 supplied by siemensplc.com is sourced as genuine Bently Nevada (Baker Hughes) OEM product. Units are procured through established industrial distribution channels with full batch traceability. Prior to dispatch from our Xiamen, China facility, each transducer undergoes a three-stage outbound inspection: visual examination of the probe tip, cable armor, and connector body for transit damage; label and serial number verification against the purchase documentation; and connector continuity check to confirm cable integrity.

Packaging follows anti-static and mechanical shock protection protocols — the probe tip is protected by a machined plastic cap, the cable is coiled to a minimum bend radius of 50 mm, and the assembly is packed in foam-lined cartons with desiccant. Commercial invoice, packing list, and available OEM documentation are included with every shipment. Export classification is handled in accordance with applicable Chinese export regulations and destination-country import requirements.

Logistics from Xiamen port reach major industrial hubs on the following typical transit schedules: Southeast Asia 3–5 business days, Middle East 5–7 business days, Europe 6–9 business days, North America 7–10 business days. Express courier options (DHL, FedEx, UPS) are available for urgent requirements. All shipments include full tracking and are covered by cargo insurance. A 12-month warranty against manufacturing defects applies from the date of shipment.
