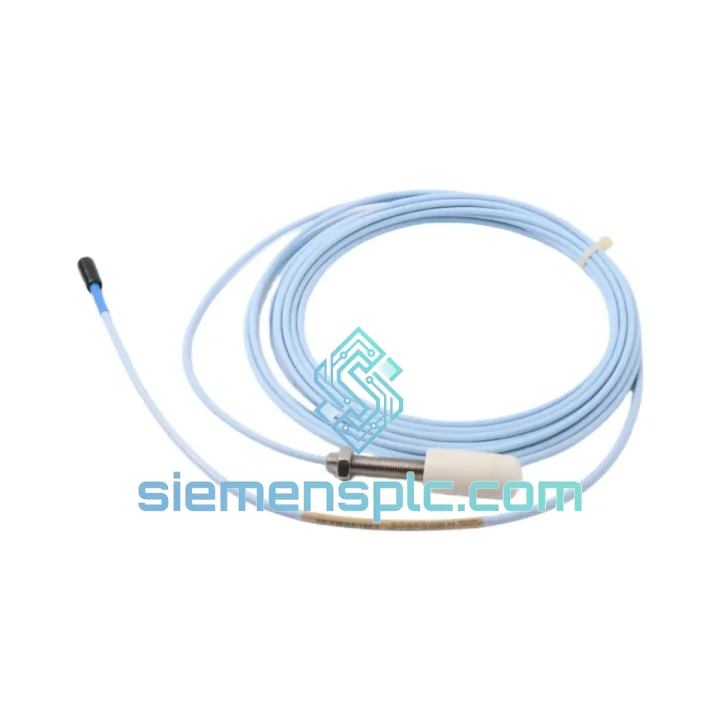

Bently Nevada 330101-00-13-05-02-00 Proximity Probe

330101-00-13-05-02-00 — Stop the Clock on Your Downtime

Every minute a turbine or compressor sits idle, you’re bleeding money. Whether it’s a tripped vibration alarm at 2 AM or a scheduled outage that just went sideways, the Bently Nevada 330101-00-13-05-02-00 proximity probe is the part you need on-site today — not next week. We stock this unit in Xiamen and ship globally via DHL/FedEx Express. One call, one part, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on turbine trains and compressor strings, here’s what actually goes wrong with 3300 XL probes — and what to watch before you bolt the new one in.

Common Fault Codes & Root Causes

• OK/Alert/Danger relay trip with no process change: Nine times out of ten this is probe gap drift. The 330101-00-13-05-02-00 has an 8 mm thread — check that the locknut hasn’t backed off due to vibration. Re-gap to the linear midpoint (~1.0 mm / 40 mil) and re-zero the Proximitor output before declaring the probe failed.
• –24 VDC supply voltage out of range on the Proximitor: Before condemning the probe, verify the driver card supply rail. A sagging power supply will pull the probe output out of its linear range and trigger false alarms. Measure at the Proximitor terminal, not at the panel bus.
• Intermittent signal / noise spikes: Almost always a connector or cable issue, not the probe tip. Inspect the 2-pin MIL connector for corrosion or fretting. In high-vibration installations, use a cable clamp within 150 mm of the probe body to prevent flex fatigue at the integral cable entry.
• Probe reads correctly on bench but trips in machine: Target material matters. The 330101 is calibrated for AISI 4140 steel. If your shaft is 17-4 PH stainless or Inconel, the scale factor shifts — you need a target material correction factor or a probe calibrated for that alloy. Confirm shaft material before installation.

Step-by-Step Replacement Procedure

• Step 1 – Isolate & document: Record the existing gap voltage (DC output at the Proximitor OK terminal) before removal. This is your baseline for the new probe.
• Step 2 – Remove old probe: Back out the locknut, then unthread the probe body. Do not pull by the cable — the integral cable entry is the most common mechanical failure point on used probes.
• Step 3 – Inspect the bore: Check the probe bore for oil contamination and thread condition. Clean with isopropyl alcohol. A contaminated bore will shift the gap reading by 2–5 mil.
• Step 4 – Install new probe: Thread in finger-tight, then advance to the target gap. For a 1.0 mm (40 mil) gap, the Proximitor output should read approximately –10.0 VDC ±0.5 V. Adjust in 0.25 mm increments.
• Step 5 – Lock and verify: Torque the locknut to 2.3 N·m (20 in-lb). Re-verify gap voltage. Confirm OK relay is energized before returning the machine to service.
• Step 6 – Firmware / configuration check: If you’re replacing into a 3500 rack, confirm the channel configuration in System 1 or the 3500 rack configurator matches the probe type (8 mm, 200 mV/mil). A mismatch here will give you correct hardware but wrong engineering units on the HMI.

Reliability in Harsh Conditions

The 3300 XL probe series was designed for the nastiest corners of a plant — not a lab bench. The 330101-00-13-05-02-00 carries a stainless-steel housing that shrugs off the oil mist, process gas condensate, and mechanical vibration that kills lesser sensors. Operating range of –35 °C to +177 °C covers everything from an Arctic LNG facility to a hot-section compressor bearing housing in a Middle East petrochemical plant.

The integral cable construction eliminates the field-wired connector junction that is the single most common failure point in proximity transducer systems. There is no field-assembled connector to corrode, loosen, or arc. The cable jacket is rated for continuous immersion in lubricating oil and is resistant to the aromatic hydrocarbons common in refinery environments.

Vibration endurance: the probe body and cable assembly are qualified to withstand the broadband vibration spectra encountered in turbomachinery installations — including the high-frequency excitation from gear mesh and blade-pass events that can fatigue poorly designed cable clamp arrangements. Follow the OEM cable routing guidelines (maximum 150 mm unsupported span) and this probe will outlast the bearing it’s monitoring.

Every unit we ship from Xiamen has been visually inspected, connector-checked, and verified against OEM dimensional standards. We do not ship units with damaged cable jackets, corroded connectors, or suspect date codes — full stop.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), one of the highest-frequency cargo hubs on China’s southeast coast. That geography is deliberate — it means your emergency order moves from our shelf to an aircraft in hours, not days.

• DHL Express Worldwide: Typical transit 1–3 business days to Europe, Middle East, and Southeast Asia. 2–4 days to North America. Door-to-door with full tracking from pickup to delivery.
• FedEx International Priority: Available for destinations where DHL coverage is limited. Same-day booking cutoff at 16:00 CST for next-flight-out options.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS Code 9031.80 (precision instruments) — we handle customs declarations correctly so your shipment clears without delay.
• Emergency same-day dispatch: Orders confirmed before 14:00 CST with payment cleared ship the same calendar day. Contact us via WhatsApp for real-time confirmation: +86 18359268345.
• Packaging: Anti-static foam-lined carton, probe tip protected with machined cap, cable coiled and secured. Arrives ready to install, not ready to inspect for shipping damage.

We’ve shipped to refineries in Saudi Arabia, power plants in Germany, compressor stations in Canada, and LNG terminals in Australia. The logistics process is the same every time: fast, documented, and traceable.
