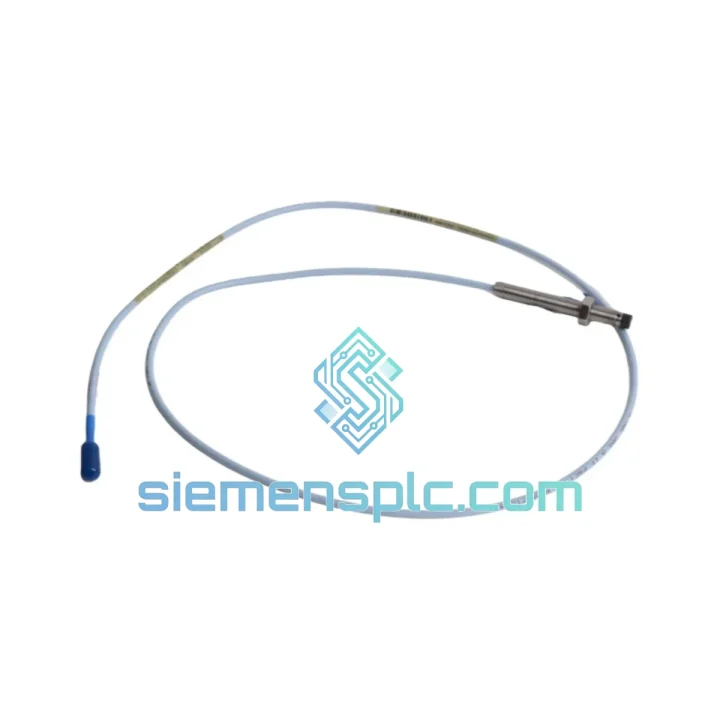

Bently Nevada 330101-00-15-10-02-05 Proximity Probe

330101-00-15-10-02-05 — Stop the Clock on Your Downtime

Every minute a turbine, compressor, or critical drive sits idle, you’re bleeding money. The Bently Nevada 330101-00-15-10-02-05 is the 8mm eddy-current proximity probe at the heart of the 3300 XL transducer system — and when it fails, your entire machinery protection loop goes dark. We stock this unit in Xiamen, verified, tested, and ready to clear customs today. No waiting on factory lead times. No chasing distributors across three time zones.

This is not a catalog listing. This is a live inventory position. If you’re reading this during a shutdown, contact us now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After a decade of field work on rotating machinery, these are the failure modes and swap pitfalls that catch engineers off guard on the 330101-00-15-10-02-05:

1. Confirm the fault is the probe, not the Proximitor or cable. Before pulling the probe, check the Proximitor output voltage at the monitor terminal. A reading stuck at −24 VDC (rail) typically means an open circuit — probe cable break or connector corrosion. A reading at 0 VDC usually points to a shorted probe tip (physical contact or contamination). If the output is oscillating erratically with the shaft stationary, suspect the extension cable connector — the TNC/BNC junction is the most common failure point in high-vibration environments.

2. Matched system — do not mix cable lengths. The 330101-00-15-10-02-05 is factory-calibrated as a system: 1.5 m probe cable + 5 m extension + matched Proximitor. Swapping in a different extension cable length (e.g., a 9 m cable from another probe set) shifts the system sensitivity by up to 8%. Your monitor will accept the signal but your vibration readings will be wrong. Always replace with the same suffix configuration or recalibrate the Proximitor.

3. Gap setting after installation. Target gap for standard 4140 steel shafts is 1.0 mm ± 0.1 mm, corresponding to a Proximitor output of approximately −10.5 VDC. Use a non-magnetic feeler gauge. Do not use a steel screwdriver to check clearance — you will magnetize the probe tip and corrupt readings. After gapping, verify the output voltage at the monitor before closing the bearing housing.

4. Bently Nevada 3500 monitor fault codes to watch. If the 3500/40M or 3500/42M shows a Not OK (NOK) status after probe swap, check: (a) the Proximitor power supply — confirm −24 VDC is present at the Proximitor terminals; (b) the monitor channel configuration — ensure the channel is set to 8mm XL, not legacy 3300; (c) the gap voltage is within the monitor’s configured OK limits (typically −10 VDC ± 2 V). A channel that was previously configured for a different probe type will reject the new probe’s output range.

5. Non-standard shaft materials. If your shaft is titanium, aluminum, or Inconel, the standard 4140 calibration is invalid. The sensitivity error can exceed 20%. Contact us — we can supply pre-calibrated probe systems for your specific target material, or provide the correction factor for your Proximitor.

6. ATEX/hazardous area installations. If the installation is in a Zone 1 or Zone 2 classified area, verify the replacement probe carries the same ATEX certificate as the original. Substituting a non-IS probe in a certified loop is a compliance violation, not just a technical issue. We stock both standard and ATEX-certified variants — specify at time of order.

Reliability in Harsh Conditions

The 3300 XL probe system was engineered for environments that destroy ordinary sensors. The 330101-00-15-10-02-05 probe body is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip housing — chemically resistant to the hydrocarbon condensates, lube oils, and process gases found in compressor and turbine bearing housings. The armored integral cable withstands continuous flexing in high-vibration installations without conductor fatigue failure, a common failure mode in cheaper eddy-current probes.

Thermal cycling is where many proximity probes fail prematurely. The 3300 XL system maintains calibration accuracy across its full −35°C to +177°C probe temperature range, making it suitable for both cryogenic LNG compressors and high-temperature steam turbine bearing pedestals. The Proximitor electronics are potted and sealed against moisture ingress, rated to IP67 — critical in outdoor installations or environments with steam washdown.

Vibration immunity is built into the probe mounting design. The threaded body with locknut secures the probe against the resonant frequencies generated by the very machinery it monitors. Field experience shows that properly installed 3300 XL probes routinely exceed 10 years of continuous service in petrochemical and power generation applications without recalibration drift beyond API 670 tolerances.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent shutdown situations, here is the realistic timeline you can plan around:

Order confirmed before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority. Tracking number issued within 2 hours of pickup.

Transit times (door-to-door, customs cleared):

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK): 3–5 business days
• North America (USA, Canada): 4–6 business days
• Australia / New Zealand: 3–5 business days

All shipments include commercial invoice, packing list, and certificate of origin. For ATEX-certified units, we include the EU Declaration of Conformity. HS Code: 9031.80 (precision measuring instruments). ECCN: EAR99 — no export license required for most destinations. If your procurement team needs a formal proforma invoice for emergency PO approval, we can issue one within 30 minutes of your inquiry.

We have handled emergency shipments to active offshore platforms, remote mining sites, and landlocked industrial zones. If your location requires special routing — charter freight, bonded warehouse clearance, or in-country agent coordination — contact us directly and we will find a path.
