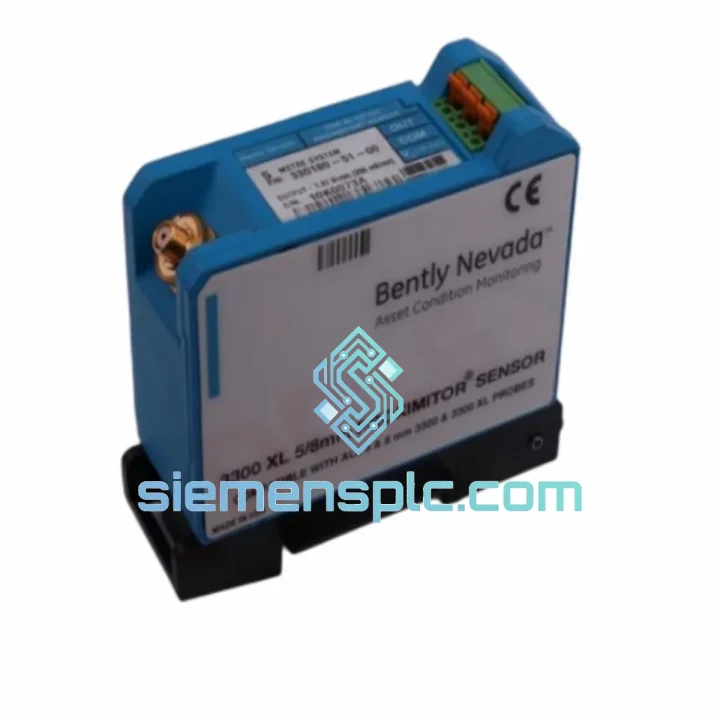

Bently Nevada 330101-00-19-10-02-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330101-00-19-10-02-00 — Active Oscillator/Demodulator Module in the 3300 XL Eddy-Current Measurement Chain

The 330101-00-19-10-02-00 is the signal-conditioning core of the Bently Nevada 3300 XL proximity measurement system. Unlike passive transducers, this Proximitor® sensor operates as an active oscillator/demodulator: it generates a 1 MHz electromagnetic field at the probe tip, receives the amplitude-modulated return signal through the extension cable, and converts it into a calibrated DC voltage whose magnitude is a precise linear function of the probe-to-target gap. Every downstream protection decision — radial vibration alarm, axial position trip, eccentricity limit — is derived from the DC voltage this module produces. Its electrical stability is therefore not a secondary specification; it is the foundational accuracy reference for the entire protection loop.

The part number suffix encodes the complete measurement chain configuration. The –19– field specifies a 5-meter (19-foot) extension cable; the –10– field designates the standard 8 mm probe family; the –02– field identifies the intrinsically safe barrier-compatible output variant. Substituting any component outside this matched configuration — particularly a different cable length — shifts the oscillator tank impedance and invalidates the factory calibration without generating a detectable fault in the monitoring rack. This part number specificity is an engineered safeguard, not a procurement inconvenience.

In API 670-compliant turbomachinery protection systems, the Proximitor® sensor sits between the proximity probe (330103 series) and the 3500 Series monitor rack. It is the only node in the chain that performs active signal processing. Its output feeds directly into 3500/42M, 3500/40M, and 3500/45 monitor cards, which apply the –7.87 V/mm sensitivity constant to compute gap in engineering units. Any gain error, noise floor elevation, or thermal drift at the Proximitor® stage propagates without attenuation into the alarm and trip logic. Specifying and maintaining the correct part number is therefore a plant reliability discipline, not merely a spare parts exercise.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The oscillator stage of the 330101-00-19-10-02-00 uses a Colpitts LC topology tuned to approximately 1 MHz. The probe coil, the coaxial extension cable, and the internal tank capacitors form a single resonant network. When a ferromagnetic or conductive target enters the field at the probe face, induced eddy currents load the tank circuit, reducing oscillation amplitude. This amplitude reduction is monotonic and repeatable across the calibrated gap range, making it the physical basis for the –7.87 V/mm transfer function.

Demodulator Architecture: The demodulator is implemented as a precision envelope detector followed by a low-pass filter with a corner frequency set to pass DC through 10 kHz. This bandwidth is sufficient to resolve shaft motion components from sub-synchronous oil whirl (typically 0.4–0.48× running speed) through blade-pass frequencies on machines running at 3000 RPM with up to 20 blades. The filter roll-off above 10 kHz suppresses RF carrier residue and high-frequency EMI without attenuating any mechanically relevant vibration component.

EMC Design: The oscillator and demodulator circuits are enclosed in a mu-metal shielded cavity. Mu-metal’s high permeability (μr > 20,000 at low field strengths) provides magnetic shielding attenuation exceeding 40 dB at frequencies up to 100 kHz. This is the relevant threat band in installations near variable-frequency drives, transformer banks, and high-current bus bars. The output buffer amplifier presents an output impedance below 100 Ω, which suppresses capacitive coupling from parallel cable runs and eliminates ground loop injection from potential differences between the Proximitor® housing ground and the monitor rack chassis ground.

Thermal Coefficient Matching: The tank inductor and capacitor are selected for matched, opposing temperature coefficients such that the resonant frequency shift over the –35°C to +85°C range is minimized. The resulting output voltage drift at a fixed gap is held below ±0.5% of full scale — a figure that preserves alarm margin integrity across the full seasonal ambient range of outdoor turbine enclosures without requiring temperature-compensated recalibration.

Cable Length Encoding: The –19– suffix in the part number is not a catalog convenience label; it is a calibration parameter. The extension cable’s distributed capacitance and inductance are part of the oscillator tank network. A 5-meter cable presents a specific impedance at 1 MHz that the factory calibration accounts for. Installing a 330101-00-19-10-02-00 with a cable of different length shifts the tank resonance, alters the sensitivity constant, and introduces a systematic gap measurement error that the 3500 rack cannot detect or compensate. This is the most common field installation error with 3300 XL systems and the primary reason part number specificity must be enforced at the procurement stage.

System Integration Benefits

• Native 3500 rack compatibility without signal adapters: The –7.87 V/mm DC output is directly accepted by 3500/42M, 3500/40M, and 3500/45 monitor cards. No interposing signal conditioner, impedance matcher, or scaling module is required, eliminating an entire layer of potential signal chain error and reducing rack wiring complexity.
• Zero mechanical wear on the measurement path: The non-contact eddy-current topology imposes no mechanical load on the rotating shaft. There is no wear mechanism in the sensor itself, and measurement accuracy does not degrade with operating hours. Alarm margins established at commissioning remain valid across multi-year plant operating cycles without periodic recalibration.
• 10 kHz bandwidth for full spectral fault coverage: The flat frequency response from DC to 10 kHz captures shaft motion from 0.1× running speed (oil whirl precursors, bearing instability) through 5× running speed on 3000 RPM machines, providing the spectral bandwidth required for early-stage fault discrimination before amplitude thresholds are reached.
• Direct analog output for PLC/DCS secondary loops: The low-impedance DC voltage output can be wired directly to analog input modules on Siemens S7-300/400/1500 PLCs or DeltaV/Ovation DCS systems for secondary monitoring or data historian integration, without requiring the Bently Nevada rack as an intermediary — applicable in balance-of-plant or cost-constrained monitoring architectures.
• API 670 5th Edition compliance for new installations: The sensor meets API 670 Section 5 transducer performance requirements — sensitivity tolerance ±3%, linearity ±0.5% of full scale, temperature coefficient — enabling use in new installations subject to current engineering standards without deviation documentation or client engineering review.
• In-kind replacement with minimal downtime: Replacing a failed 330101-00-19-10-02-00 with an identical part number preserves the existing probe and cable calibration constants. Only a single-point gap voltage verification at a known reference gap is required post-installation, reducing planned maintenance downtime from several hours (full loop recalibration) to under 30 minutes.
• Output voltage trending as a secondary diagnostic channel: The DC output voltage at the monitor rack input can be trended over time as a proxy for probe-to-shaft gap changes caused by bearing wear, shaft centerline migration, or probe face fouling. This provides a diagnostic data stream independent of the vibration amplitude channel, increasing diagnostic transparency without additional instrumentation.
• Zone 1 / Division 1 hazardous area deployment: The –02– suffix designates the IS barrier-compatible output configuration. When used with an approved intrinsic safety barrier, the Proximitor® sensor can be installed in IEC Zone 1 or NEC Division 1 classified areas without an explosion-proof housing, reducing installation cost and weight in offshore and petrochemical applications.
• Deterministic output for SIL-rated protection loops: The DC voltage output is a deterministic, single-valued function of gap with no digital protocol latency or firmware dependency. This characteristic simplifies functional safety analysis for SIL 2 machinery protection loops under IEC 61511, where sensor output determinism is a required architectural property.

Quality Assurance & Global Logistics

Every 330101-00-19-10-02-00 unit supplied through siemensplc.com is sourced from verified industrial automation distribution channels and carries original Bently Nevada (Baker Hughes) manufacturer labeling, serial number, and factory calibration data. Pre-shipment inspection covers housing and connector visual examination, label and serial number authenticity verification, and output circuit continuity check. Original manufacturer packaging is preserved where available; units are individually anti-static bagged and cushion-packed for international transit to prevent connector damage and electrostatic discharge to the internal oscillator circuit.

Traceability documentation — manufacturer certificate of conformance, country of origin declaration, and calibration data sheet — is available upon request for applications subject to ISO 9001, ASME NQA-1, or equivalent quality management system requirements. This documentation supports incoming inspection procedures at refineries, power generation facilities, and offshore platforms where third-party verification of instrument provenance is a contractual requirement.

Shipments originate from Xiamen, China, with access to DHL, FedEx, UPS, and TNT express courier networks. Standard export documentation — commercial invoice, packing list, and certificate of origin — accompanies every international shipment. Air freight transit times to Southeast Asia are typically 2–4 business days; to the Middle East and Europe, 4–6 business days; to the Americas, 5–8 business days from order confirmation. For urgent plant requirements, same-day dispatch is available for in-stock units confirmed before 14:00 CST. All units are covered by a 12-month warranty from the date of shipment against manufacturing defects, processed under a replacement-first policy to minimize plant downtime exposure.
