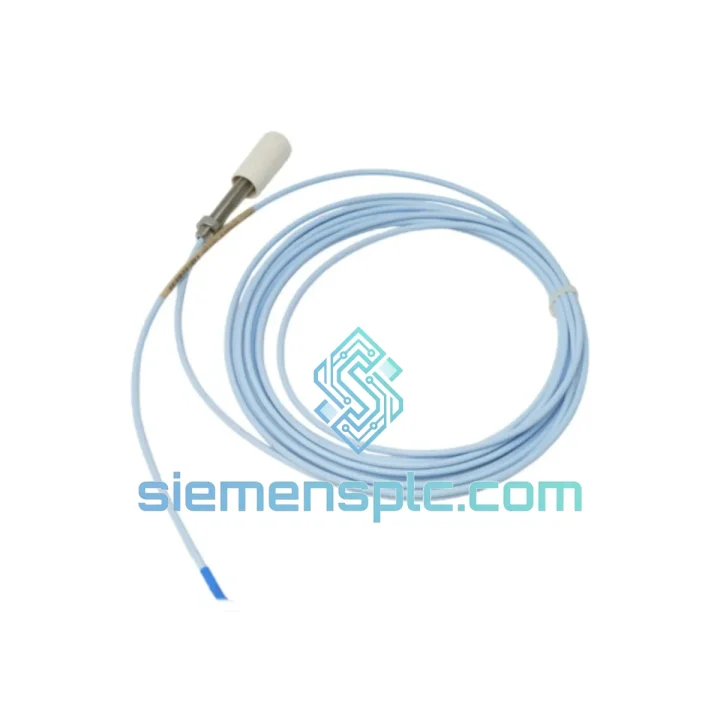

Bently Nevada 330101-00-30-90-02-05 Proximity Probe

330101-00-30-90-02-05 — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine or compressor sits idle costs real money — lost throughput, penalty clauses, emergency labor. The Bently Nevada 330101-00-30-90-02-05 is an 8 mm eddy-current proximity probe from the field-proven 3300 XL Series, and we stock it in Xiamen for same-day dispatch. No waiting on factory lead times. No chasing distributors. You call, we ship.

This probe handles continuous non-contact measurement of shaft radial vibration, axial position, and differential expansion on the most critical rotating machinery in your plant. When it fails — and under sustained vibration and heat, eventually everything does — you need an exact replacement in hand before the next shift starts. That is precisely what siemensplc.com exists to deliver.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 330101-00-30-90-02-05 in the field is straightforward if you follow the sequence. Skip a step and you will spend the next two hours chasing a ghost fault.

Common failure signatures before you pull the probe:

• OK LED extinguished on the Proximitor® — gap voltage has drifted outside the –10 V to –18 V window. Could be probe, extension cable, or Proximitor® itself. Isolate by substitution.
• Intermittent 1× vibration spike at operating speed — check the armored cable for fretting damage at the conduit entry. The -02 armor suffix means stainless braid; inspect the first 150 mm from the probe body where bending radius is tightest.
• Constant high vibration reading with shaft stationary — electrical noise coupling. Verify shield continuity end-to-end. A broken shield on the extension cable reads identically to a real vibration event.
• Gap voltage correct but sensitivity off by >5% — probe tip contamination (oil varnish, metallic debris). Clean with isopropyl alcohol before condemning the probe.

Replacement procedure — field checklist:

• De-energize the Proximitor® before disconnecting. The –24 VDC supply rail is live at the connector; shorting it during hot-swap can damage the monitor card.
• Record the existing gap voltage (should be –10.0 V ± 0.5 V at nominal gap of 1.0 mm for 4140 steel targets). This is your baseline for the new probe.
• Thread the replacement probe to the same depth. Use the lock nut — finger-tight plus 1/8 turn is not enough; vibration will back it out within hours.
• Re-energize and verify gap voltage. If it reads outside –9.5 V to –10.5 V at the same physical gap, the target material may differ from 4140 steel. Apply the appropriate sensitivity correction factor from the 3300 XL calibration manual.
• This probe (suffix -90) has a 0.9 m integral cable. Confirm your extension cable is the correct length to reach the Proximitor® without excess coiling — coiled cable adds distributed capacitance and can shift the frequency response above 5 kHz.
• The -05 connector suffix denotes the standard coaxial connector. Verify the mating connector on your extension cable matches before ordering. The -02 and -05 suffixes are not interchangeable in the field.
• After reconnection, perform a static gap check and a slow-roll vibration check before returning the machine to service. Do not skip the slow-roll — a loose probe guard or misaligned bracket will show up at 200 RPM, not at trip speed.

Firmware / system compatibility note: The 330101-00-30-90-02-05 is a passive transducer — there is no firmware to match. However, if your plant is running a 3500 Series rack with 3300 XL probes via a 3500/42M monitor, confirm the monitor’s transducer type is set to “3300 XL 8 mm” in the rack configuration software. An incorrect transducer selection will apply the wrong sensitivity constant and produce erroneous vibration readings without triggering any hardware fault.

Reliability in Harsh Conditions

The 3300 XL probe was not designed for a clean lab. It was designed for the bearing housing of a 50 MW steam turbine running at 3,000 RPM in a tropical power station with 95% humidity and oil mist in the air. The 330101-00-30-90-02-05 reflects that design intent at every level.

The ceramic-filled probe tip maintains calibration linearity across the full –35 °C to +177 °C operating range. In hot-section turbine bearing housings where ambient temperatures routinely exceed 120 °C, many competing probes drift out of calibration within months. This one does not. The ceramic fill has a thermal expansion coefficient matched to the probe body, so the gap between tip and target stays geometrically stable even through repeated thermal cycling during startups and shutdowns.

The stainless-steel armored integral cable (the -02 armor designation in the part number) resists mechanical abrasion from vibrating conduit clamps and protects against the oil-mist ingress that degrades standard PVC-jacketed cables. In compressor trains where the cable runs through a gearbox enclosure, this armor is not optional — it is the difference between a two-year service life and a two-month one.

Eddy-current technology itself is inherently immune to the contamination that kills contact-type sensors. No moving parts. No wear surface. The probe tip never touches the shaft. MTBF in typical industrial installations exceeds 10 years, which is why API 670 specifies this measurement principle for machinery protection on critical trains. When a 330101-00-30-90-02-05 does fail, it is almost always the cable — not the probe tip — and that failure mode is detectable before it becomes a trip event.

Units shipped from our Xiamen warehouse are inspected for connector integrity, cable armor continuity, and physical tip condition before dispatch. We do not ship units with cosmetic damage to the tip or connector — a damaged tip changes the calibration curve in ways that are not visible during a static gap check.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport (XMN), one of South China’s primary cargo hubs with direct freighter connections to Frankfurt, Dubai, Chicago, and Singapore. That geography is deliberate — it means your emergency order moves from our shelf to an aircraft in hours, not days.

Standard dispatch process for urgent orders:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Order confirmed after 14:00 CST: Next-morning dispatch. Parts are staged and labeled overnight.
• Transit times (door-to-door, typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | Australia 2–3 days.
• Documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. ATEX/IECEx documentation available on request for hazardous area compliance.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor shipments and proactively notify you of any customs holds.
• Customs clearance: HS Code 9031.80 (precision measuring instruments). We pre-declare correctly — misclassification is the single biggest cause of customs delays on industrial parts, and we have eliminated it from our process.

For plant shutdowns with a hard restart deadline, contact us via WhatsApp before placing the order. We will confirm stock, dispatch timeline, and realistic delivery window before you commit — no surprises when the maintenance window is already running.
