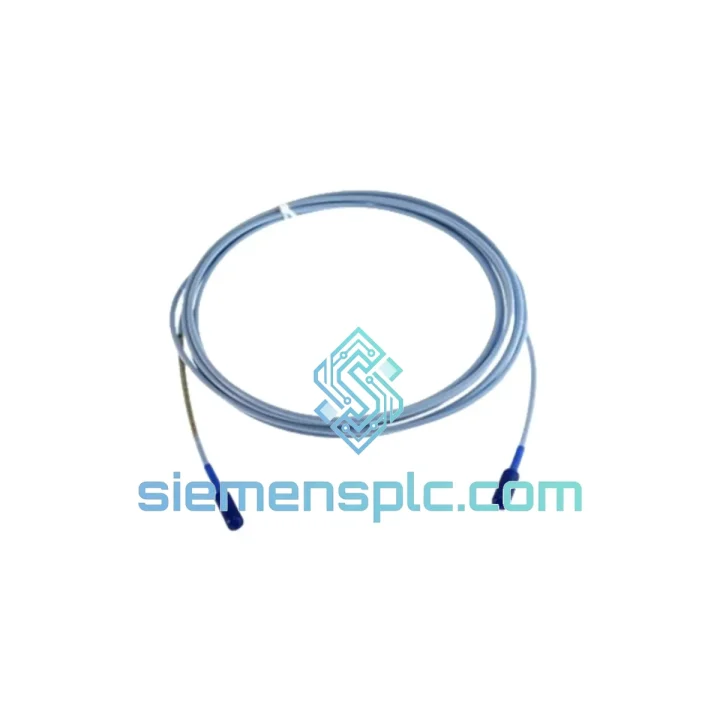

Bently Nevada 330101-00-65-10-11 Proximity Probe – 3300 XL Series

Bently Nevada 330101-00-65-10-11: 8mm Eddy Current Proximity Probe for Continuous Shaft Monitoring in the 3300 XL Platform

The 330101-00-65-10-11 is an 8mm diameter eddy current proximity probe manufactured by Bently Nevada (Baker Hughes) for integration into the 3300 XL continuous machinery monitoring platform. Within a rotating machinery protection loop, this probe functions as the primary transducer responsible for converting mechanical gap displacement into a proportional analog voltage signal. It operates without physical contact with the target shaft, eliminating wear-related drift and enabling uninterrupted 24/7 measurement across the full service life of the monitored asset.

The probe is deployed in radial vibration channels, axial thrust position channels, and differential expansion measurement loops on gas turbines, steam turbines, centrifugal compressors, and large pump trains. Its 65 cm (25.6 in) armored integral cable is factory-matched to the 3300 XL NSv proximitor calibration, ensuring the three-component measurement chain — probe, extension cable, and proximitor — operates within the specified scale factor tolerance of ±1% of 7.87 V/mm (200 mV/mil). Deviations outside this tolerance directly affect the accuracy of vibration amplitude readings fed into the protection relay logic, making OEM-matched components a non-negotiable requirement in API 670-governed installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330101-00-65-10-11 operates on the principle of Faraday induction. The probe tip houses a wound coil driven by a high-frequency oscillator circuit located inside the 3300 XL NSv proximitor. This oscillator generates a carrier signal — typically in the range of 1.0 MHz to 1.5 MHz — which is transmitted down the coaxial cable to the probe coil. The alternating magnetic field produced at the probe tip penetrates the conductive target surface and induces circulating eddy currents. These eddy currents generate a counter-magnetic field that loads the oscillator circuit, reducing its amplitude in proportion to the probe-to-target gap. The proximitor demodulates this amplitude-modulated carrier and outputs a DC voltage linearly proportional to gap distance across the 0.25 – 2.54 mm measurement range.

The PEEK tip material is selected for its combination of high dielectric strength, chemical resistance to lubricating oils and process fluids, and dimensional stability at elevated temperatures up to +177 °C. Unlike ceramic-tipped alternatives, PEEK maintains consistent dielectric properties across the full operating temperature range, preventing thermally induced scale factor drift that would otherwise introduce systematic error into vibration amplitude measurements.

The 316 stainless steel housing provides corrosion resistance in hydrogen sulfide (H₂S) and chloride-bearing environments common in petrochemical and offshore applications. The stainless steel armored integral cable resists mechanical abrasion from vibrating structures and protects the coaxial signal conductor from electromagnetic interference (EMI) generated by adjacent variable-frequency drives, motor starters, and high-current bus bars. The armor braid is bonded to the probe housing ground, creating a continuous Faraday shield from probe tip to proximitor input connector — a design that directly suppresses common-mode noise injection into the measurement chain.

The 10-32 UNF threaded mounting interface allows precise axial positioning of the probe tip relative to the target shaft journal. The thread pitch of 0.794 mm per revolution enables fine gap adjustment during commissioning without requiring specialized tooling. Lock nuts on both sides of the mounting bracket fixture prevent gap migration under vibration, maintaining the initial calibration gap within ±0.025 mm over the service interval.

System Integration Benefits

• Direct API 670 compliance: The probe meets the full electrical and mechanical requirements of API 670 Fifth Edition, eliminating the need for additional qualification testing when specifying replacement sensors in regulated turbomachinery protection systems.
• Deterministic signal latency: The DC-coupled output path from probe to proximitor to monitor card introduces no signal processing delay beyond the inherent RC filter time constant of the proximitor output stage (typically <1 ms), preserving the real-time integrity of vibration trip logic in the 3500 monitoring rack.
• Zero-wear measurement principle: Non-contact eddy current sensing eliminates the mechanical degradation mechanisms (contact fatigue, fretting, adhesive wear) that limit the service life of contact-type displacement sensors, supporting continuous operation intervals aligned with turbomachinery major overhaul cycles of 25,000 – 50,000 hours.
• Calibrated three-component system traceability: The probe, extension cable, and proximitor are calibrated as a matched system. Replacing the probe with an OEM 330101-00-65-10-11 unit preserves the factory calibration traceability of the measurement chain without requiring re-calibration of the proximitor or monitor card.
• Wide bandwidth for diagnostic resolution: The DC – 10,000 Hz frequency response captures both synchronous (1X, 2X) vibration components and sub-synchronous instability phenomena (oil whirl at 0.43–0.48X) within a single measurement channel, supporting full spectrum analysis in System 1 condition monitoring software.
• High-temperature bearing housing compatibility: The +177 °C upper operating limit accommodates direct installation in bearing housings adjacent to hot-section components in gas turbines and steam turbines, where ambient temperatures routinely exceed the ratings of standard industrial proximity probes.
• EMC-hardened signal path: The continuous Faraday shield from probe tip to proximitor input suppresses radiated EMI pickup, maintaining signal-to-noise ratio above the 40 dB threshold required for reliable vibration amplitude discrimination at the 25 µm (1 mil) resolution level.
• Diagnostic transparency via gap voltage monitoring: The –2 V to –22 V output range provides a continuous, measurable indicator of probe installation gap. Monitoring the DC bias voltage at the proximitor output allows maintenance personnel to detect probe fouling, target surface degradation, or mounting bracket loosening without removing the probe from service.

Quality Assurance & Global Logistics

Every 330101-00-65-10-11 unit supplied by siemensplc.com is sourced from authorized distribution channels or verified OEM surplus inventory. Prior to dispatch, each probe assembly undergoes a pre-shipment inspection protocol covering connector pin integrity, coaxial cable continuity and insulation resistance (>100 MΩ at 500 VDC), probe tip surface condition, and part number label verification against the physical assembly. Units are stored in a temperature- and humidity-controlled warehouse environment to prevent moisture ingress into the coaxial connector and cable termination points — a common failure mode in improperly stored proximity probe assemblies.

Shipments originate from Xiamen, China, a major international logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard transit times to major industrial centers are 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia and the Middle East. Full export documentation is prepared for each shipment, including a commercial invoice, packing list, and certificate of origin. For regulated industries requiring additional documentation, a certificate of conformance and material traceability report are available upon request at no additional charge. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment.
