Bently Nevada 330101-00-84-20-02-CN Proximity Probe – 3300 XL Series

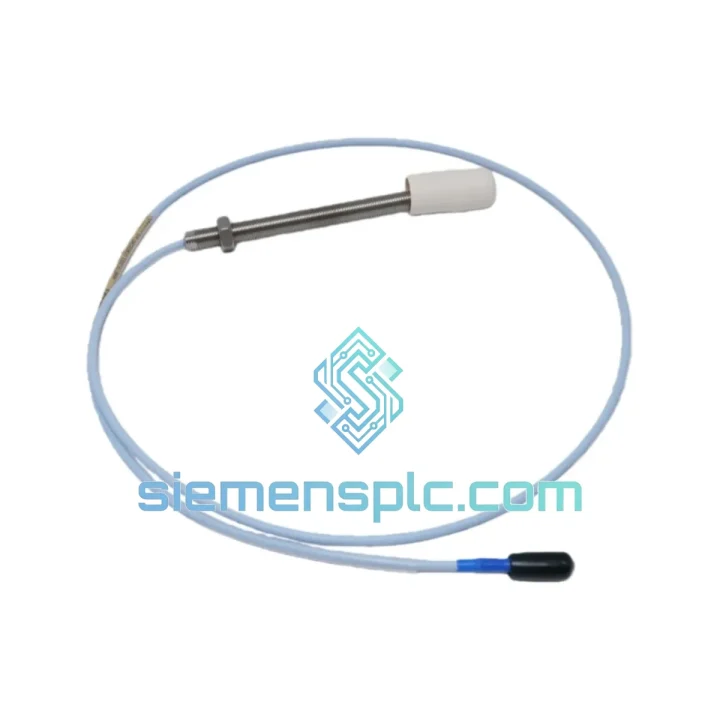

Bently Nevada 330101-00-84-20-02-CN — 8 mm Eddy-Current Proximity Probe for Rotating Machinery Protection

The Bently Nevada 330101-00-84-20-02-CN is an 8 mm eddy-current proximity probe belonging to the 3300 XL Series — a platform that has defined the industry benchmark for non-contact shaft displacement measurement in turbomachinery protection systems for over three decades. This specific variant carries the -CN connector suffix, designating a China-market termination style that eliminates field-wiring adapters in domestic plant installations where CN-style connectors are the established plant standard.

The probe operates on the eddy-current induction principle: a high-frequency oscillator (typically 1.0 MHz) drives a coil wound at the probe tip, generating an electromagnetic field that penetrates the target surface. As the conductive target (shaft) moves within the linear measurement range, eddy currents induced in the target surface load the oscillator circuit, producing a voltage output that is precisely proportional to the gap distance. This mechanism requires no physical contact with the rotating shaft, eliminating wear, lubrication requirements, and the mechanical resonance artifacts that plague contact-type transducers.

In a complete 3300 XL measurement chain, this probe connects via an extension cable to a Proximitor® sensor (signal conditioner), which demodulates the oscillator output into a DC voltage signal — nominally –24 VDC supply, 200 mV/mil (7.87 V/mm) sensitivity — that feeds directly into a Bently Nevada 3500-series monitor rack or any DCS/PLC analog input card. The system is fully compliant with API 670 (5th Edition) machinery protection requirements and ISO 10816 / ISO 20816 vibration evaluation standards.

Deployment environments include steam and gas turbines, centrifugal and axial compressors, boiler feed pumps, large electric motors, gearboxes, and marine propulsion shafts — wherever continuous, high-resolution shaft radial vibration, axial position, or eccentricity data is required for both machinery protection and condition monitoring.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL probe architecture addresses three principal engineering challenges in turbomachinery sensing: electromagnetic interference immunity, thermal stability, and signal chain determinism.

EMC Design: The probe coil assembly is enclosed within a 316 stainless steel housing that acts as a Faraday shield against capacitively coupled interference from adjacent high-voltage cables and variable-frequency drives — a common noise source in compressor train environments. The coaxial cable geometry of the integral lead maintains a controlled characteristic impedance, preventing standing-wave reflections that would introduce measurement error at high shaft rotational frequencies. Above 3,000 RPM, the 10 kHz bandwidth captures up to the 200th harmonic of a 50 Hz fundamental, preserving sub-synchronous and super-synchronous vibration components critical for rotor dynamic diagnostics.

Thermal Compensation: The oscillator coil is wound with a temperature-compensated ferrite core. Over the –35 °C to +177 °C operating range, sensitivity drift is held within the ±1% specification without external correction circuitry. This is critical in steam turbine bearing pedestals where ambient temperatures can swing 80 °C between cold-start and full-load conditions — a thermal excursion that would cause unacceptable zero-drift in uncompensated sensors.

Gap-Voltage Linearity: The 0.25–2.25 mm linear range is defined by the coil geometry and the Proximitor sensor’s demodulation circuit. Within this window, the transfer function is linear to within ±0.05 mm, enabling the 3500 monitor rack to resolve shaft displacement changes as small as 1 µm — sufficient to detect early-stage oil-film instability (oil whirl) before it progresses to oil whip and bearing failure.

CN Connector Variant Logic: The -CN suffix designates a connector pin-lock geometry and contact plating specification matched to Chinese plant maintenance tooling. Electrically, the probe is identical to the -00 (international) variant, sharing the same calibration curve and Proximitor compatibility — a deliberate design decision ensuring global interchangeability of the sensing element while accommodating regional field-wiring standards without requiring re-engineering of the measurement chain.

System Integration Benefits

• Direct 3500-rack compatibility: Connects to 3500/40M and 3500/42M Proximitor monitor cards without hardware modification or recalibration, preserving existing rack configurations during probe replacement.
• Deterministic analog output: The DC voltage output has zero latency — unlike digital fieldbus sensors — ensuring the 3500 rack’s trip logic responds within its specified 20 ms voting window under API 670 requirements.
• Dual-function measurement: A single probe installation simultaneously provides radial vibration (AC component) and average shaft centerline position (DC component), reducing sensor count and bearing housing penetrations.
• DCS/PLC integration via 3500/92 gateway: The analog output is compatible with any 4–20 mA or ±10 V analog input module; for digital integration, the 3500/92 Communication Gateway exports Modbus RTU, PROFIBUS DP, or OPC-DA data to plant DCS without additional signal conditioning.
• API 670 voting architecture support: Two probes mounted 90° apart (X–Y configuration) feed the 3500 rack’s dual-channel voting logic, enabling 1oo2 or 2oo2 trip configurations that eliminate spurious shutdowns while maintaining protection integrity.
• Diagnostic transparency: The 3500 rack continuously monitors probe gap voltage; a gap outside the 0.25–2.25 mm linear range triggers a Not OK relay, alerting operators to probe mounting drift or shaft displacement before measurement accuracy is compromised.
• Hazardous area deployment: ATEX certification allows installation in Zone 1/Zone 2 classified areas — petrochemical, offshore — without additional intrinsic safety barriers when used within the certified system boundary.
• Long-term spare parts alignment: The 3300 XL platform has been in continuous production for over 30 years. Replacement probes, extension cables, and Proximitor sensors remain catalog items, protecting the plant’s long-term maintenance strategy against obsolescence risk.

Quality Assurance & Global Logistics

Every Bently Nevada 330101-00-84-20-02-CN unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol:

• Visual inspection against OEM cosmetic and labeling standards — housing, connector, and cable jacket integrity verified
• Sensitivity verification at 200 mV/mil ± 1% using a calibrated gap-setting fixture
• Continuity and insulation resistance check on the integral 2.0 m cable assembly
• Original manufacturer part number, date code, and traceability documentation retained with each unit
• Anti-static packaging with humidity indicator card and foam-lined transit case for international freight

Logistics from Xiamen cover all major global trade lanes. Standard export documentation includes commercial invoice, packing list, and Certificate of Origin. HS Code 9031.80 applies. Typical transit times: 3–5 business days to Southeast Asia, 5–8 days to Europe and the Middle East, 7–10 days to the Americas via express air freight. EXW Xiamen terms available; CIF and DDP arrangements supported for qualified accounts. Emergency same-day dispatch is available for in-stock units when orders are placed before 14:00 CST.
