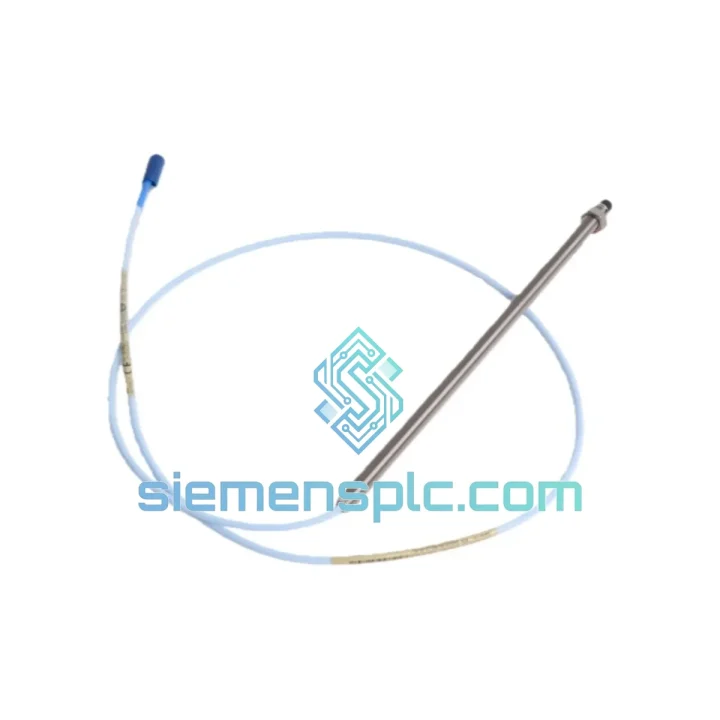

Bently Nevada 330101-00-96-10-02-CN Proximity Probe

330101-00-96-10-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour a turbine or compressor sits idle costs real money. When your Bently Nevada 3300 XL proximity probe fails, you don’t have time to chase distributors or wait three weeks for factory lead times. We stock the 330101-00-96-10-02-CN — 96-inch, 10 mm tip, M10×1 thread, CN-certified — and we ship DHL/FedEx Express the same business day your order is confirmed. One call, one part, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 330101-00-96-10-02-CN fails in predictable ways. Here’s what field experience actually looks like:

Fault Code BN-01 / Gap Voltage Out of Range: The most common call-out. Probe gap voltage reads outside the −10 V to −18 V window on your 3500 monitor. Nine times out of ten this is a cracked probe tip from a rub event, or the probe has drifted out of its mounting bracket due to vibration-induced loosening. Pull the probe, inspect the tip face under a loupe — any chipping or scoring means replace, not re-gap.

Cable Continuity Failure: The 96-inch integral cable is the weak point on this variant. Repeated thermal cycling at the probe body junction causes micro-fractures in the coax shield. Use a milliohm meter across the shield — anything above 2 Ω on a 96-inch run is suspect. Do not attempt field repair; replace the full probe assembly to maintain calibration integrity.

Scale Factor Drift: If your 3500 monitor is reporting vibration amplitudes that don’t match your portable analyzer, the probe may have taken a magnetic hit or been exposed to a strong external field. The 7.87 V/mm scale factor is factory-set and cannot be field-adjusted. Replace the probe and re-verify with a calibrated gap block before returning the machine to service.

Replacement Procedure — Key Steps:

• De-energize the proximitor supply (−24 VDC) before disconnecting the probe. Hot-swapping will spike the monitor input.
• Record the existing gap voltage before removal. Target gap for a 10 mm probe on steel shaft: −10.4 V ± 0.5 V (corresponds to ~1.0 mm gap).
• Apply Loctite 243 (medium-strength) to the M10×1 thread. Torque to 1.5 N·m — no more. Over-torquing cracks the probe body at the thread root.
• After installation, power up the proximitor and allow 15 minutes thermal stabilization before logging the new gap voltage baseline.
• Verify total system cable length (probe + extension) matches the driver’s calibrated specification. The 330101-00-96-10-02-CN is calibrated for a 96-inch probe + 5-meter extension cable system. Mixing lengths invalidates the scale factor.
• Log the replacement in your machinery protection system history file. API 670 compliance requires traceability of all transducer changes.

Common Substitution Pitfall: Engineers sometimes swap in a 330101-00-60-10-02-CN (60-inch variant) because it’s on the shelf. This will cause a scale factor error of up to 8% unless the extension cable is lengthened to compensate. The monitor will not alarm on this — it will silently report wrong vibration levels. Always match total cable length.

Reliability in Harsh Conditions

The 3300 XL probe body is constructed from 316L stainless steel with a PEEK-encapsulated coil assembly. This isn’t marketing language — it’s what lets this probe survive the environments where rotating machinery actually lives.

In steam turbine bearing housings, ambient temperatures routinely hit 90–110 °C at the probe mounting boss. The 330101-00-96-10-02-CN is rated to +120 °C continuous, with the coil potting compound selected specifically to resist thermal creep at these temperatures. Field data from power plant installations shows mean time between failures exceeding 8 years in properly maintained systems.

Vibration immunity is equally critical. The probe is mounted directly on the bearing housing — the same structure that transmits shaft vibration. The integral cable is strain-relieved at the probe body with a stainless ferrule crimp, not a simple adhesive bond. This detail matters: adhesive-bonded cable exits fail within 18 months in high-vibration compressor applications. The ferrule crimp on the 330101 series has been the standard for a reason.

In humid or coastal environments, the anodized aluminum probe body and sealed connector (IP67 when mated) prevent ingress that would otherwise cause coax shield corrosion and measurement drift. For offshore or chemical plant installations, request the CN-certified variant specifically — it carries the additional documentation required for Chinese hazardous-area compliance audits.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Standard Express Timeline (DHL/FedEx):

• Order confirmed before 14:00 CST → same-day dispatch
• Southeast Asia (SG, MY, TH, ID): 2–3 business days door-to-door
• Middle East (AE, SA, KW): 3–4 business days
• Europe (DE, NL, GB, FR): 4–5 business days
• North America (US, CA): 4–6 business days
• Australia / New Zealand: 3–5 business days

All shipments include a commercial invoice, packing list, and Certificate of Conformance. For orders requiring an export license or CN customs declaration, we handle the paperwork — you focus on getting your machine back online. Tracking numbers are issued within 2 hours of dispatch. For critical plant shutdowns, contact us directly for a dedicated freight booking — we have handled same-day emergency air freight for power generation clients across Asia and the Middle East.

Import duties and VAT are the buyer’s responsibility. We declare actual commercial value — no under-declaration. For DDP (Delivered Duty Paid) arrangements on large orders, contact us to discuss.
