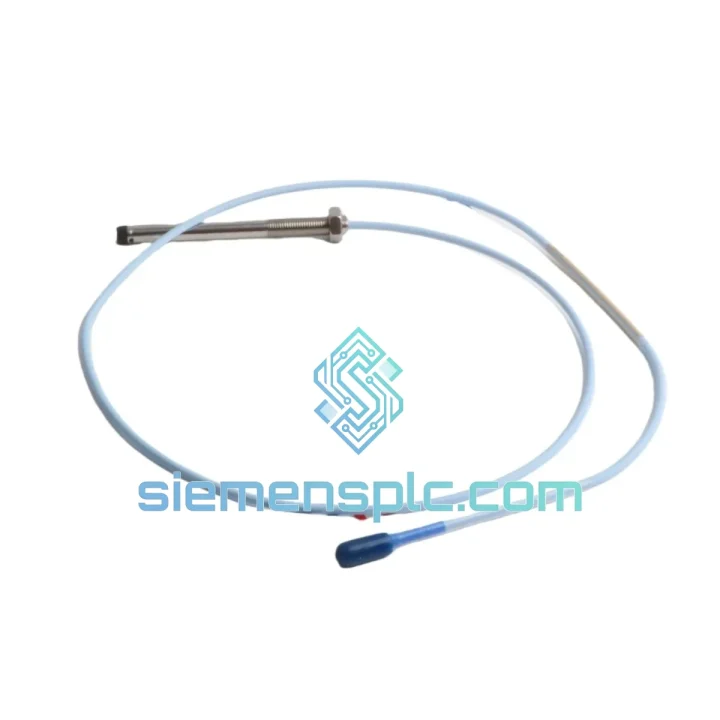

Bently Nevada 330101-23-34-10-02-05 Proximity Probe

330101-23-34-10-02-05 — Stop the Clock on Your Downtime

Every minute a turbine sits idle, the losses compound. A failed proximity probe in a 3300 XL measurement chain doesn’t just trigger an alarm — it shuts down the entire machinery protection loop, forcing a plant-wide trip. The Bently Nevada 330101-23-34-10-02-05 is an 8mm eddy current proximity probe purpose-built for radial vibration and axial position measurement in API 670-compliant rotating machinery. We stock it. We ship it today. Your machine runs tomorrow.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Replacing a 330101-series probe is straightforward if you follow the right sequence. Skip a step and you’ll be chasing a ghost fault for hours.

Common Failure Signatures:

• OK LED off on Proximitor (330180) — Probe gap out of linear range, cable open circuit, or probe coil shorted. Measure DC output voltage: should read –10 VDC ±0.5 V at nominal 1.27 mm gap. Anything outside –2 V to –18 V indicates a probe or cable fault.
• Bently Nevada 3500 rack showing “Not OK” on channel — First isolate: disconnect probe at Proximitor input and measure open-circuit voltage (~–24 VDC). If OK, fault is in probe/cable. If still Not OK, suspect Proximitor or rack card.
• Intermittent vibration spikes at 1× running speed — Often caused by a cracked probe tip or loose mounting bracket causing micro-movement. Check probe tip for physical damage and verify locknut torque (typically 20–25 Nm for M10 thread).
• High static DC offset drift over time — Thermal cycling fatigue in the integral cable near the probe body. Flex the cable near the RSMA connector while monitoring DC output; any voltage shift confirms cable degradation.

Step-by-Step Replacement Procedure:

1. Confirm system cable length before ordering. The 330101-23-34-10-02-05 uses a 0.9 m integral cable. Total system length (probe cable + extension cable) must match the Proximitor calibration — typically 5 m or 9 m total. Mismatched lengths shift the scale factor and invalidate your vibration readings.
2. De-energize the Proximitor at the rack before disconnecting. Hot-swapping the probe connector while the oscillator is live can damage the Proximitor input stage.
3. Record the existing gap voltage before removal. This gives you a baseline for reinstallation. Target: –10.0 VDC ±0.2 V at the nominal air gap.
4. Remove the old probe using the correct spanner on the M10 thread. Do not grip the cable or probe body with pliers — the 316L housing is precision-machined and any deformation affects the electromagnetic field geometry.
5. Install the new probe hand-tight, then torque to specification. Apply thread-locking compound (medium strength, e.g., Loctite 243) if vibration levels at the mounting location exceed 2g.
6. Reconnect the RSMA connector to the extension cable. Finger-tight plus 1/8 turn with a wrench. Over-torquing the RSMA damages the center pin.
7. Re-energize and verify gap voltage. Adjust probe depth until DC output reads –10.0 VDC ±0.2 V. Lock the probe in position with the locknut.
8. Verify OK LED on the Proximitor illuminates green. Check the 3500 rack channel status — it should clear to OK within 2–3 seconds of correct gap establishment.
9. No recalibration of the Proximitor is required for a like-for-like probe replacement. The 3300 XL system is factory-calibrated as a matched set; replacing the probe with the identical part number restores the original calibration.

Configuration Notes:

• This probe has no DIP switches or firmware — configuration lives entirely in the Proximitor and the 3500 rack monitor card.
• If replacing a probe on a 3500/40M or 3500/42M monitor, verify the channel configuration in the rack software (System 1 or Rack Configuration Software) matches the 8mm probe type and 200 mV/mil scale factor.
• For ATEX Zone 1 installations, verify the replacement probe carries the same Ex marking as the original before reinstalling in a hazardous area.

Reliability in Harsh Conditions

The 3300 XL probe series was designed for environments that destroy lesser sensors. The 330101-23-34-10-02-05 is qualified across a temperature range of –35°C to +177°C — covering everything from outdoor installations in northern climates to bearing housings on high-temperature steam turbines running at 540°C steam conditions (the probe mounts on the bearing pedestal, not the hot section).

The 316L stainless steel housing resists corrosion in wet gas, sour service (H₂S-containing), and marine environments. The stainless steel armored integral cable withstands mechanical abuse from maintenance traffic, vibrating pipe runs, and accidental impact — the most common cause of probe failure in the field is cable damage, not probe coil failure. The RSMA connector is gold-plated for corrosion resistance and rated for thousands of mating cycles.

Vibration immunity is inherent in the non-contact measurement principle: there are no moving parts, no wear surfaces, and no mechanical coupling to the shaft. The probe generates a 1 MHz electromagnetic field and measures the impedance change caused by eddy currents in the rotating target — a physics-based measurement that doesn’t degrade with mechanical wear. Units installed in 1990s-era turbomachinery are still in service today, limited only by cable integrity and connector condition.

Humidity and condensation are handled by the hermetically sealed probe tip and the fully potted coil assembly. The probe can operate submerged in oil mist environments common in gearbox and compressor bearing housings without signal degradation.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct DHL and FedEx international gateway access. Here’s what happens after you confirm your order:

• Same-day processing for orders confirmed before 15:00 CST. Your unit is pulled from stock, inspected, and packed in anti-static protective packaging with original documentation.
• DHL Express / FedEx International Priority — transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days, Australia 3–4 days.
• Export documentation included: commercial invoice, packing list, certificate of origin. ATEX/IECEx certificates available on request for customs clearance in regulated markets.
• Real-time tracking provided via email immediately upon shipment. AWB number shared within 2 hours of dispatch.
• Emergency freight options available for critical plant shutdowns — contact us directly on WhatsApp for same-day courier arrangements.

We have shipped Bently Nevada components to petrochemical plants in Saudi Arabia, power stations in Germany, LNG terminals in Australia, and refineries across Southeast Asia. Customs clearance experience across 40+ countries means your shipment clears without delays caused by incorrect documentation.
