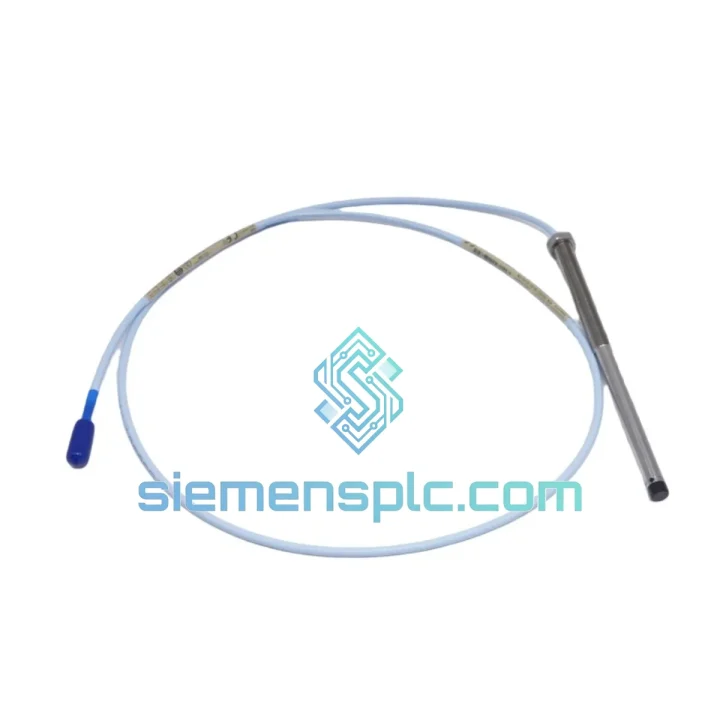

Bently Nevada 330101-30-60-05-01-05 Proximity Probe – 3300 XL Series

Bently Nevada 330101-30-60-05-01-05 — Eddy-Current Proximity Probe for Continuous Shaft Displacement Measurement in Rotating Machinery

The Bently Nevada 330101-30-60-05-01-05 is an 8 mm diameter eddy-current proximity probe belonging to the 3300 XL Series — a platform engineered specifically for non-contact, continuous measurement of radial shaft vibration and axial position in critical rotating equipment. Unlike piezoelectric accelerometers that measure surface acceleration, this probe operates on the eddy-current induction principle: a high-frequency oscillator (typically 1.0 MHz) drives a coil wound at the probe tip, generating an electromagnetic field that interacts with the conductive target shaft. As the air gap between probe tip and shaft surface changes, the field loading on the oscillator changes proportionally, producing a DC-coupled output voltage that is linear across the calibrated measurement range. This architecture delivers true DC-to-10 kHz frequency response, making it equally suited for slow-roll runout checks at 1–2 RPM and high-speed vibration capture at 60,000 RPM turbine stages.

In a control loop context, the 330101-30-60-05-01-05 functions as the primary sensing element in a three-component measurement chain: probe → extension cable → Proximitor® driver. The Proximitor® converts the probe’s oscillator loading into a calibrated voltage output (nominally –24 VDC supply, 7.87 V/mm sensitivity), which feeds directly into a Bently Nevada 3500 Series monitor card or any third-party vibration monitor accepting ±24 V analog input. The probe’s role is deterministic: it introduces no active signal processing, no firmware, and no configurable parameters — its output fidelity is governed entirely by mechanical geometry and coil winding consistency, both of which are controlled to tight tolerances at the factory.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL probe design addresses three hardware-level challenges that are endemic to high-temperature, high-vibration industrial environments:

Coil Encapsulation and Thermal Stability. The sensing coil is encapsulated in a ceramic-filled epoxy compound rated to 177 °C continuous. This encapsulant serves a dual function: it mechanically stabilizes the coil geometry against thermal cycling fatigue (preventing sensitivity drift caused by coil deformation) and provides electrical isolation between the coil winding and the stainless steel probe housing. The result is a sensitivity coefficient that remains within ±1% of nominal across the full –50 °C to +177 °C operating band — a specification that matters in steam turbine HP stages where bearing housing temperatures routinely exceed 120 °C.

Armored Extension Cable and EMC Shielding. The 5 m extension cable uses a triaxial construction: inner conductor (signal), inner shield (driven guard), and outer shield (ground reference). The driven guard eliminates cable capacitance loading on the oscillator circuit, preserving frequency response linearity at the upper end of the measurement band. The outer stainless steel braid provides mechanical protection against abrasion and chemical splash while simultaneously acting as an EMC shield. Measured cable shield effectiveness exceeds 60 dB attenuation at 1 MHz — sufficient to reject conducted interference from variable-frequency drives and high-current bus bars in close proximity.

Matched-Set Calibration. The 330101-30-60-05-01-05 is factory-calibrated as a matched set with its extension cable and a specific Proximitor® driver model. The calibration encodes the combined electrical characteristics of all three components into a single sensitivity curve. Substituting any one component from a different matched set introduces a systematic sensitivity error that cannot be corrected by field adjustment. This architecture enforces system-level traceability and eliminates field calibration ambiguity — a deliberate design choice aligned with API 670 Section 5.3 requirements for documented calibration records.

Intrinsic Safety Architecture. The probe itself contains no active components and stores negligible energy in its coil inductance at the operating frequency. This passive architecture is the physical basis for the ATEX/IECEx intrinsic safety certification: even under fault conditions (short circuit, open circuit, or Proximitor® failure), the energy available at the probe tip cannot ignite a Group IIC hydrogen atmosphere. No external Zener barriers are required when the probe is used with a certified Proximitor® driver — the IS loop is self-contained within the matched set.

System Integration Benefits

The following eight integration characteristics distinguish the 330101-30-60-05-01-05 in multi-loop machinery protection architectures:

• Zero-latency analog output. The probe-to-Proximitor® signal path is purely analog with no A/D conversion, firmware processing, or communication stack. Gap voltage is available at the Proximitor® output terminal within microseconds of a shaft displacement event — deterministic response that digital fieldbus sensors cannot match for machinery trip applications.
• API 670 drop-in compliance. The probe meets all dimensional, electrical, and documentation requirements of API 670 Fifth Edition without supplementary engineering. EPC contractors and end-users operating under this standard can specify the part number directly in their instrument index without additional qualification testing.
• Direct 3500 rack integration. When paired with a 330180 Proximitor® driver, the output signal is fully compatible with Bently Nevada 3500/42M Proximitor®/Seismic Monitor cards. No signal conditioning modules, impedance matching networks, or custom wiring are required between the Proximitor® and the monitor card terminal block.
• Dual-measurement capability. A single probe installation can simultaneously provide radial vibration (AC-coupled, 1×/2× amplitude and phase) and average shaft centerline position (DC-coupled gap voltage) to the monitor card. This eliminates the need for a separate position sensor in most bearing journal monitoring applications.
• Wide RPM operating range. The DC-to-10 kHz frequency response covers shaft speeds from slow-roll (1–2 RPM, for runout subtraction) through 60,000 RPM high-speed spindles. A single probe model serves both startup diagnostics and full-speed protection without range switching.
• Hazardous-area deployment without additional barriers. The matched-set IS certification eliminates the cost and panel space of external Zener barriers in Zone 0/1 installations. The certified Proximitor® driver provides the IS interface, simplifying the Ex documentation package for ATEX compliance audits.
• Diagnostic transparency via gap voltage monitoring. The DC gap voltage output provides a continuous, real-time indicator of probe-to-shaft clearance. Trending this value over time reveals bearing wear (decreasing gap), probe fouling (erratic gap), or mounting bracket loosening (step-change in gap) — failure modes that are invisible to vibration-only monitoring systems.
• Long-term spare parts availability. The 3300 XL platform has been in continuous production for over two decades. Probe geometry, connector pinout, and sensitivity specification have remained unchanged across production revisions, ensuring that replacement units sourced today are interchangeable with probes installed in the 1990s without recalibration of the monitor system.

Quality Assurance & Global Logistics

Every 330101-30-60-05-01-05 unit dispatched from our Xiamen, China facility is sourced from verified supply channels carrying full Bently Nevada factory traceability. Incoming inspection covers visual examination of the probe tip ceramic face, coil resistance measurement (±5% of nominal), connector pin integrity, and cable jacket continuity. Units with broken seals, non-OEM connector bodies, or anomalous coil resistance readings are quarantined and not offered for sale. A Certificate of Conformance documenting lot number, date code, and inspection results is available upon request for every shipment.

Logistics from Xiamen serve global industrial buyers with the following standard options: DHL Express (2–4 business days to Europe/North America), FedEx International Priority (3–5 days), and sea freight consolidation for bulk orders. Export documentation — commercial invoice, packing list, and HS Code 8543.70.9990 customs declaration — is prepared in-house. DDP (Delivered Duty Paid) terms are available for buyers in the EU, UK, and Australia who require a landed cost with no customs clearance burden. All shipments are insured at full replacement value. Emergency same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.
