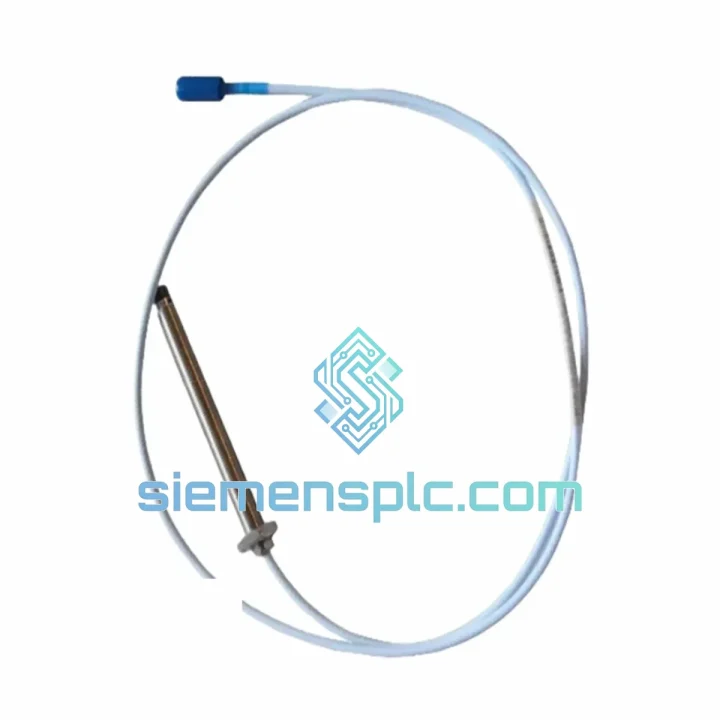

Bently Nevada 330101-30-63-15-02-CN Proximity Probe – 3300 XL Series

Bently Nevada 330101-30-63-15-02-CN: 5 mm Eddy-Current Proximity Probe in the 3300 XL Transducer System

The Bently Nevada 330101-30-63-15-02-CN is a 5 mm tip-diameter, non-contact eddy-current proximity probe belonging to the 3300 XL Proximity Transducer System — the most widely deployed shaft-sensing platform in API 670-compliant machinery protection installations worldwide. This specific configuration carries a 30 cm armored integral cable, M8 thread body, and the -CN market suffix, indicating documentation and packaging aligned with Chinese industrial procurement standards. The probe operates as the primary sensing element in a three-component transducer chain: probe → extension cable (330130 series) → Proximitor® signal conditioner. Each element is factory-matched; substituting components from outside the calibrated set invalidates the system’s sensitivity curve and introduces measurement error that cannot be corrected at the rack level.

In rotating machinery protection, the proximity probe’s function is deceptively simple in description but demanding in execution: it must resolve shaft displacement to sub-micron accuracy across a linear measurement range of 0.25 mm to 2.25 mm (10–90 mil), maintain that accuracy from −35 °C to +177 °C, and do so continuously for years without mechanical contact or wear. The 330101-30-63-15-02-CN achieves this through a precision-wound coil embedded in a PEEK-tipped stainless steel housing, driven by a 1 MHz oscillator within the matched Proximitor®. When the conductive shaft surface enters the probe’s electromagnetic field, eddy currents are induced, loading the oscillator circuit and producing a DC output voltage proportional to the air gap — nominally 7.87 V/mm (200 mV/mil). This output feeds directly into Bently Nevada 3500 Series monitor cards for radial vibration, axial position, or differential expansion measurement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330101-30-63-15-02-CN’s hardware architecture reflects the engineering constraints of continuous-duty machinery protection rather than general-purpose sensing. Several design decisions are worth examining at the component level.

Coil Geometry and Sensitivity Stability: The 5 mm tip diameter defines the probe’s electromagnetic field geometry. A smaller tip concentrates the field, reducing the effective sensing area but improving spatial resolution — critical when monitoring small-diameter shafts (below 50 mm journal diameter) where a larger probe would integrate displacement across a wider arc, masking localized surface defects or runout. The coil is wound to a tight inductance tolerance; field-to-field variation in sensitivity is controlled to ±1% of nominal, which is essential because the Proximitor® calibration curve is fixed at manufacture and cannot be field-adjusted.

PEEK Tip Material: Polyether ether ketone (PEEK) is selected for the probe tip over alternatives such as epoxy or ceramic for three reasons: its dielectric constant (ε ≈ 3.2) is stable across the full operating temperature range, it is chemically resistant to the hydrocarbon lubricants and process gases present in turbomachinery bearing housings, and its mechanical strength (tensile strength ~100 MPa) provides adequate protection against incidental contact during installation without the brittleness of ceramic alternatives.

Armored Cable Construction: The 30 cm integral cable uses a stainless steel braid armor over a fluoropolymer-insulated coaxial conductor. This construction serves two functions: mechanical protection against abrasion and crush loads in congested bearing housing environments, and electromagnetic shielding that maintains the coaxial impedance of the probe-to-extension-cable interface. Any impedance discontinuity at the connector junction introduces a reflection that distorts the oscillator’s loading characteristic and shifts the sensitivity curve. The 5-pin connector is designed with a controlled impedance transition to minimize this effect.

EMC Design: The probe itself is a passive element; its EMC performance is determined by the shielding integrity of the cable and connector. The stainless braid provides approximately 40 dB of shielding effectiveness at 1 MHz — sufficient to reject the common-mode interference generated by variable-frequency drives, high-current bus bars, and RF sources typical of industrial plant environments. The shield is grounded at the Proximitor® end only (single-point grounding) to prevent ground loop currents from modulating the signal.

Temperature Coefficient: The probe’s sensitivity has a temperature coefficient of approximately −0.05%/°C relative to the 25 °C calibration baseline. Over the full operating range (−35 °C to +177 °C), this produces a maximum sensitivity drift of approximately ±7.5% uncorrected. In practice, the Proximitor® and 3500 monitor cards apply temperature compensation algorithms that reduce this to well within the ±1% accuracy specification required by API 670 for machinery protection systems.

System Integration Benefits

• Direct 3500 Series Rack Compatibility: The probe’s output is calibrated to the input range of Bently Nevada 3500/40M, 3500/42M, and 3500/45 monitor cards without any signal conditioning adaptation. This eliminates the scaling errors that arise when third-party probes are used with Bently Nevada monitors.
• Deterministic Latency: The eddy-current sensing chain — probe, Proximitor®, 3500 monitor — has a defined signal propagation delay of less than 1 ms from shaft displacement to relay output. This determinism is a hard requirement for overspeed and high-vibration trip functions where response time directly determines whether a machine is protected.
• Diagnostic Transparency via OK Circuit: The Proximitor® continuously monitors the probe’s oscillator loading. If the probe cable is open-circuited, short-circuited, or the gap moves outside the linear range, the OK relay de-energizes and the 3500 rack flags a Not-OK condition. This self-diagnostic capability means sensor failures are detected immediately rather than discovered during the next scheduled inspection.
• Non-Contact Operation Eliminates Wear-Based Drift: Unlike contact-type displacement sensors, the eddy-current probe has no moving parts and no wear mechanism. Sensitivity drift over a 10-year service life is dominated by coil aging (negligible at operating temperatures below 150 °C) rather than mechanical wear, making calibration interval planning straightforward.
• Multi-Parameter Measurement from a Single Probe: Depending on the 3500 monitor card configuration, a single 330101-30-63-15-02-CN installation can simultaneously provide radial vibration (AC component), shaft centerline position (DC component), and gap alarm outputs — three measurement functions from one physical sensor location.
• DCS Integration via Standard Analog Output: The 3500 rack’s 4–20 mA output modules translate the proximity probe signal into a standard process variable suitable for direct input to Siemens PCS 7, Emerson DeltaV, Honeywell Experion, or Yokogawa CENTUM DCS platforms without additional signal conversion hardware.
• Hazardous Area Certification: ATEX and CSA certifications allow installation in Zone 1/Zone 2 (ATEX) and Class I Division 1/2 (CSA) hazardous areas, covering the majority of oil and gas processing environments where rotating machinery protection is required.
• Reduced Commissioning Time: Factory-matched probe-Proximitor® pairs ship with a calibration certificate that documents the actual sensitivity and linear range measured at manufacture. Commissioning engineers can verify system performance against this certificate during loop checks, reducing the time required to validate the protection system before startup.
• Interchangeability Within the 3300 XL Family: All 330101-series probes with the same tip diameter and cable length are interchangeable within the 3300 XL system. Spare management is simplified: a single spare probe covers multiple measurement points on the same machine train, reducing the inventory investment required for critical spare holdings.

Quality Assurance & Global Logistics

Every Bently Nevada 330101-30-63-15-02-CN unit supplied by siemensplc.com is sourced from traceable supply channels and processed through a structured pre-shipment verification protocol before dispatch from Xiamen, China.

Authenticity Verification: Each unit is cross-referenced against Bently Nevada (Baker Hughes) authorized part databases. Physical label inspection confirms part number, date code, and serial number format consistency with genuine OEM production batches. Units with anomalous label typography, non-standard connector finishes, or inconsistent housing markings are quarantined and not shipped.

Physical Inspection: Connector pin geometry and gold plating condition are inspected under magnification. Cable armor integrity is checked for kinks, crush damage, or braid separation. Thread gauge verification confirms M8 × 1.0 pitch compliance. Probe tip surface is inspected for chips or contamination that could affect the electromagnetic field geometry.

Packaging and Documentation: Units are shipped in original OEM packaging where available, or in equivalent anti-static, moisture-barrier packaging with desiccant for transit. A certificate of conformance is included with each shipment. Traceability documentation is available upon request for customers with quality management system requirements.

Logistics from Xiamen, China: Xiamen’s port infrastructure and direct air freight connections to major industrial hubs — including Singapore, Dubai, Rotterdam, Houston, and Tokyo — support delivery timelines of 3–7 business days for express air freight (DHL/FedEx) to most destinations. Sea freight consolidation is available for larger orders. Export documentation, including commercial invoice, packing list, and certificate of origin, is prepared in compliance with destination country import requirements. Customers in regulated industries can request additional documentation packages for customs clearance of industrial electronic components.

12-Month Warranty: All units carry a 12-month warranty from the date of shipment covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 2 business days.
