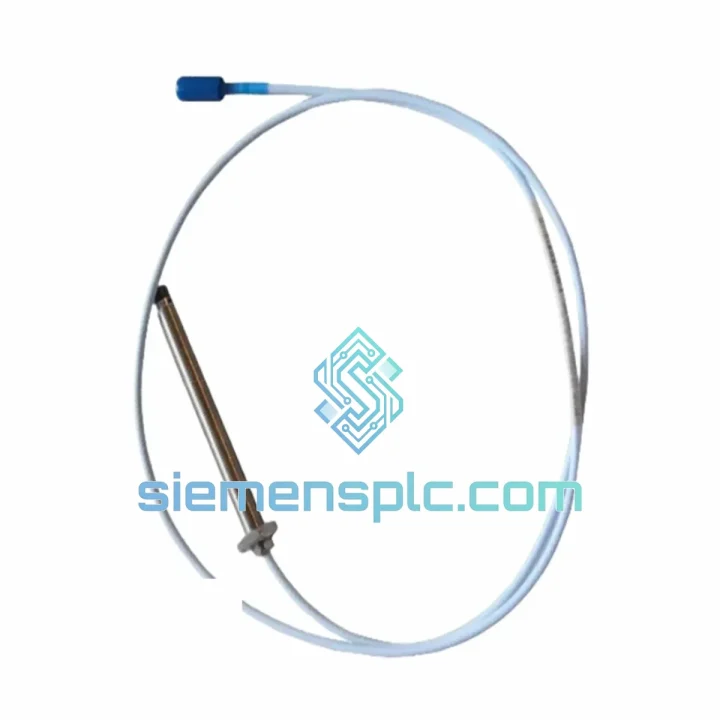

Bently Nevada 330101-XX-XX-10-02-CN Proximity Probe – 3300 XL Series

Bently Nevada 330101-XX-XX-10-02-CN — 8mm Eddy-Current Proximity Probe in Continuous Machinery Protection Loops

The Bently Nevada 330101-XX-XX-10-02-CN is an 8mm eddy-current proximity probe belonging to the 3300 XL series, a platform that has defined the benchmark for non-contact shaft displacement measurement in turbomachinery protection since its introduction. The probe operates on the eddy-current principle: a high-frequency oscillator (typically 1.0 MHz) drives a coil wound at the probe tip, generating an electromagnetic field that induces circulating currents in any conductive target within range. The impedance change caused by those eddy currents is demodulated by the paired driver into a DC voltage proportional to the gap between probe face and shaft surface. This mechanism delivers sub-micron resolution with no mechanical contact, no wear, and no lubrication requirement — properties that are non-negotiable in continuous-duty rotating machinery operating at speeds from 1,000 to 60,000 RPM.

Within a control loop, the 330101 probe feeds real-time radial displacement data to the 3300 XL driver/oscillator-demodulator, which outputs a calibrated −24 VDC to 0 VDC signal. That signal is ingested by a 3500-series monitor rack, where it is compared against alert and danger setpoints defined per API 670 Fourth Edition. The monitor issues relay outputs to the turbine control system (TCS) or distributed control system (DCS) within 20 ms of a threshold crossing — a latency budget that satisfies the safety integrity requirements of most SIL 2 machinery protection applications. The probe is therefore not a passive sensor; it is the primary transducer in a deterministic safety chain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Oscillator Frequency Stability and Target Material Sensitivity
The 3300 XL 8mm probe operates at a fixed oscillator frequency matched to the paired 330180-series driver. This frequency lock is not arbitrary: the eddy-current penetration depth (skin depth δ = √(ρ / πfμ)) at 1 MHz in AISI 4140 steel is approximately 0.08 mm, confining the induced current to the shaft surface layer. This shallow penetration makes the measurement insensitive to bulk material properties below the surface, but highly sensitive to surface conductivity and permeability variations. Bently Nevada’s factory calibration accounts for this by specifying AISI 4140 as the reference target material and publishing correction factors for alternative alloys (e.g., Inconel 718, titanium). Engineers integrating this probe into non-ferrous shaft applications must apply the published material correction factor or perform an in-situ calibration against a known gap standard.

EMC Design and Shielding Architecture
The coaxial cable assembly uses a double-braid shield terminated at the driver end only (single-point grounding). This topology prevents ground loop currents from modulating the signal conductor, which is critical in environments with variable-frequency drives (VFDs) generating common-mode noise in the 2–20 kHz band. The probe body itself is constructed from 316 stainless steel, which provides mechanical shielding against electrostatic interference without introducing ferromagnetic permeability that would distort the probe’s electromagnetic field geometry. The CN connector’s coaxial geometry maintains shield continuity through the mating interface, preserving the cable’s transfer impedance specification up to the driver input terminal.

Thermal Drift Compensation
The probe’s scale factor exhibits a temperature coefficient of approximately ±0.05% per °C across the rated range. At the maximum tip temperature of 177°C, cumulative thermal drift can reach ±7.5 mV/mm relative to the 25°C calibration baseline. In high-temperature steam turbine applications, this drift is managed by the 3300 XL driver’s internal temperature compensation circuit, which applies a correction derived from a thermistor embedded in the driver housing. The probe-to-driver matched calibration data stored in the driver’s non-volatile memory ensures that the compensation remains valid for the specific probe serial number — a key reason why probe and driver should be replaced as a matched set when either component reaches end of service life.

Mechanical Integration and Probe Holder Compliance
The M10 × 1.0 thread pitch is finer than standard metric fastener threads, a deliberate design choice that provides finer axial positioning resolution (1.0 mm per revolution vs. 1.5 mm for M10 × 1.5). This allows field technicians to set the nominal gap of 1.0 mm with a positioning accuracy of ±0.05 mm using a standard probe holder with a locking nut, without requiring precision gap gauges. The 316 stainless steel body resists galling against common probe holder materials (carbon steel, 304 SS) and maintains dimensional stability across the full thermal cycle of a turbine start-stop sequence.

System Integration Benefits

• API 670 Fifth Edition compliance out of the box: The 330101 probe, when used with the 3300 XL driver and 3500-series monitor, forms a certified measurement chain that satisfies the transducer performance requirements of API 670 without additional field calibration or documentation burden.
• Deterministic 20 ms trip response: The 3500 monitor processes the probe’s analog output and issues relay commands within 20 ms of a danger threshold crossing, meeting the response time budget of most turbine emergency shutdown (ESD) systems without relay logic modifications.
• Dual-probe redundancy support: The 3500/42M I/O module accepts two 330101 probes per channel pair, enabling XY radial vibration measurement and shaft orbit reconstruction — a diagnostic capability that reduces unplanned outage duration by allowing maintenance teams to distinguish between mass imbalance, misalignment, and fluid-induced instability from a single data set.
• 4–20 mA DCS integration without signal conditioners: The 3500 monitor’s analog output card converts the probe’s voltage signal to a 4–20 mA loop current compatible with standard DCS analog input cards (HART-capable), eliminating the need for external signal conditioners and the associated failure modes they introduce.
• Diagnostic transparency via Bently Nevada System 1: When connected to the System 1 software platform, the 330101 probe’s time-waveform and spectrum data are available for continuous trending, enabling detection of developing faults (e.g., bearing wear, seal rub) weeks before they reach alarm thresholds.
• Non-contact measurement eliminates sensor-induced loading: Unlike accelerometers mounted on bearing housings, the eddy-current probe measures shaft motion directly, with zero mechanical loading on the rotor. This is particularly significant for flexible rotors operating near critical speeds, where added mass from contact sensors would shift the critical speed and invalidate the original rotor dynamic model.
• Intrinsically safe variants available: FM and CSA-certified configurations of the 330101 series are available for Zone 1 / Division 1 hazardous area installations in oil and gas facilities, without requiring additional Zener barriers or galvanic isolators in most configurations.
• Long-term spare parts availability: Bently Nevada maintains backward compatibility across 3300 XL series components. A 330101 probe purchased today is electrically and mechanically interchangeable with units installed in the 1990s, protecting the capital investment in existing monitor racks and probe holders.

Quality Assurance & Global Logistics

Every Bently Nevada 330101-XX-XX-10-02-CN unit supplied through siemensplc.com is sourced from verified supply channels and undergoes a structured incoming inspection protocol before dispatch. Inspection includes gap voltage verification at the nominal 1.0 mm gap using a calibrated AISI 4140 steel target, coaxial cable continuity and insulation resistance testing (≥100 MΩ at 500 VDC), and visual inspection of the CN connector and probe body for mechanical damage or counterfeit indicators. Units that do not pass inspection are quarantined and not dispatched.

Documentation available on request includes factory calibration data sheets, material certificates for the probe body and cable assembly, country-of-origin documentation, and CE/FM/CSA approval certificates where applicable. For regulated industries (power generation, oil and gas, petrochemical), full traceability documentation can be compiled to support your incoming inspection and quality management system requirements.

Logistics are managed from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard in-stock orders are dispatched within 1–2 business days. Transit times to major industrial hubs: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–3 days, Middle East 4–7 days. Export documentation including commercial invoice, packing list, and HS code 9031.80 classification is prepared for all international shipments. For orders requiring an ATA Carnet or specific customs pre-clearance documentation, contact our logistics team in advance.

All units carry a 12-month warranty against manufacturing defects under normal operating conditions. Warranty claims are processed with a target response time of 2 business days. Replacement units are dispatched before the defective unit is returned in cases where machine availability is critical.
