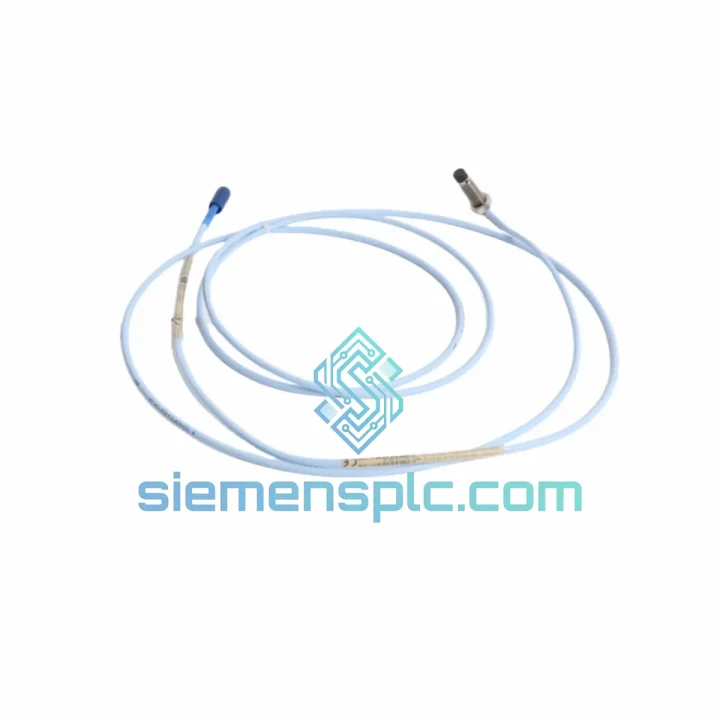

Bently Nevada 330101-XX-XX-20-02-CN 147773-00-12 Proximity Probe – 3300 XL Series

Bently Nevada 330101-XX-XX-20-02-CN / 147773-00-12 — Eddy-Current Shaft Proximity Probe for API 670 Machinery Protection

The 330101-XX-XX-20-02-CN (cross-reference: 147773-00-12) is a primary sensing element within the Bently Nevada 3300 XL 8mm Proximity Transducer System. Its function within a machinery protection loop is unambiguous: it converts radial shaft displacement into a proportional DC voltage signal, delivering continuous, non-contact measurement of shaft position and dynamic vibration to the downstream Proximitor® signal conditioner. This measurement chain forms the foundation of API 670-compliant protection systems deployed on critical rotating machinery — centrifugal compressors, steam turbines, gas turbines, and boiler feed pumps — where undetected shaft excursion beyond alarm thresholds can result in catastrophic bearing failure within seconds.

The probe operates on the eddy-current principle. A high-frequency oscillator within the Proximitor® drives an alternating magnetic field through the probe tip coil. When a conductive target surface (typically AISI 4140 steel shaft) enters the field, eddy currents are induced on the target surface, loading the oscillator circuit and producing a measurable impedance change. This impedance shift is linearized and scaled to a standard output of 7.87 V/mm (200 mV/mil) across a 2.0 mm (80 mil) linear measurement range. The output is a negative DC voltage, ranging from approximately –1 VDC at minimum gap to –21 VDC at maximum gap, directly proportional to probe-to-target distance.

The CN suffix designates an integral conical connector, eliminating the intermediate junction box required by earlier bayonet-style probe assemblies. This reduces the number of electrical connection points in the signal path, lowering the probability of high-resistance joints that introduce noise or signal offset errors. The 20-02 suffix encodes the probe body length (20 mm) and cable length (2 meters), parameters that must be matched to the installation gap and routing geometry to maintain system calibration accuracy.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Coil Geometry and Sensitivity Linearity: The 8mm tip diameter is a deliberate engineering compromise between sensitivity and target surface curvature tolerance. Smaller tip diameters (5mm) exhibit higher sensitivity per unit gap but are more susceptible to shaft surface finish variation and runout-induced calibration error. The 8mm geometry maintains a linear output across the full 2.0mm range even when the shaft surface has minor machining marks or minor eccentricity, making it the preferred choice for API 670 installations where calibration traceability is mandatory.

EMC Design and Shielding Architecture: The probe cable is a coaxial assembly with a continuous braid shield referenced to the Proximitor® common. This topology suppresses capacitively coupled interference from adjacent power cables and motor drives operating at switching frequencies up to several kHz. The shield is grounded at one end only (Proximitor® side) to prevent ground loop currents that would appear as low-frequency noise on the output signal — a critical design requirement in environments with multiple grounding potentials, such as offshore platforms or large turbine halls.

Thermal Stability of the Sensing Element: The probe coil is wound on a ceramic bobbin with a low thermal coefficient of expansion. This minimizes coil geometry change across the –35°C to +177°C operating range, which would otherwise shift the effective scale factor and introduce a temperature-dependent measurement offset. In hot-section installations (e.g., steam turbine bearing pedestals), this thermal stability is the primary reason the 3300 XL series maintains calibration without field recalibration between seasonal shutdowns.

Integral CN Connector Reliability: The conical integral connector eliminates the field-assembled junction between probe body and extension cable that was required in earlier 3300 (non-XL) designs. Field-assembled junctions are a known failure mode: connector corrosion, improper torque, and moisture ingress at the junction introduce series resistance that shifts the probe’s apparent gap reading. The integral CN design removes this failure mode entirely, improving mean time between failures (MTBF) in humid or corrosive environments.

System Integration Benefits

• Deterministic signal latency: The eddy-current measurement chain from probe tip to Proximitor® output has no sampling delay — the output is a continuous analog voltage. This allows the 3500 series rack to execute protection trip logic within one processing cycle (<1 ms), meeting API 670 response time requirements without buffering or interpolation artifacts.
• Direct compatibility with 3500/42M and 3500/45 I/O modules: The –1 to –21 VDC output range is within the input specification of all 3500 series radial vibration and position monitor cards, enabling direct connection without signal conditioning adapters or range converters.
• Plug-and-play calibration traceability: Factory calibration data for each probe serial number is stored in Bently Nevada’s calibration database. Replacement probes of the same part number restore system calibration without field re-ranging, reducing maintenance downtime to the time required for physical installation only.
• Dual-measurement capability: A single 330101 probe simultaneously provides both dynamic vibration (AC component, filtered by the monitor card) and static shaft position (DC component). This eliminates the need for separate displacement transducers in installations where both measurements are required by API 670 Section 5.
• Wide frequency response for sub-synchronous detection: The DC–10,000 Hz bandwidth captures not only 1× and 2× running speed vibration but also sub-synchronous instability phenomena (oil whirl, oil whip) that typically manifest at 0.3–0.5× running speed. Early detection of these instabilities is critical for preventing fluid-film bearing failures in high-speed machinery.
• Reverse compatibility with existing 3300 series wiring: The 3300 XL probe uses the same coaxial cable interface as the original 3300 series, allowing installation into existing conduit runs and junction boxes without re-cabling — a significant cost saving during upgrade projects on legacy machinery protection systems.
• Diagnostic transparency via gap voltage monitoring: The static DC output voltage provides a continuous indication of probe installation gap. Monitor cards can be configured to generate a gap alarm if the DC level drifts outside the ±10% calibrated gap window, providing early warning of probe loosening, shaft thermal growth, or bearing wear before vibration amplitude alarms are triggered.
• ATEX / IECEx zone compliance for hazardous area installation: Zone-rated variants of the 330101 series are certified for installation in Zone 1 and Zone 2 hazardous areas (gas groups IIA, IIB) without additional intrinsic safety barriers, simplifying the installation design and reducing the component count in Ex-rated enclosures.

Quality Assurance & Global Logistics

Every 330101-XX-XX-20-02-CN unit supplied by siemensplc.com is sourced from authorized distribution channels and verified surplus inventory with full traceability to original manufacturer documentation. Pre-shipment inspection covers probe tip coil continuity, cable shield integrity, connector pin engagement force, and dimensional verification of the probe body length against the part number suffix. Units that do not meet OEM datasheet tolerances are rejected — no exceptions.

Packaging follows anti-static and mechanical protection protocols: individual probe assemblies are wrapped in conductive foam, placed in rigid-wall cartons, and labeled with serial number and inspection date. For international shipments, export documentation including commercial invoice, packing list, and certificate of conformance is prepared as standard. Dangerous goods classification is not applicable for this product.

Logistics operations are based in Xiamen, China, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard in-stock orders ship within 2–3 business days of payment confirmation. Express shipments to major industrial hubs in Europe, the Middle East, Southeast Asia, and North America typically arrive within 3–5 business days door-to-door. Sea freight consolidation is available for bulk orders exceeding 20 units. All shipments include full tracking and are covered by a 12-month warranty against manufacturing defects.
