Bently Nevada 330102-00-12-10-02-05: Eddy-Current Proximity Probe for Critical Rotating Machinery Protection

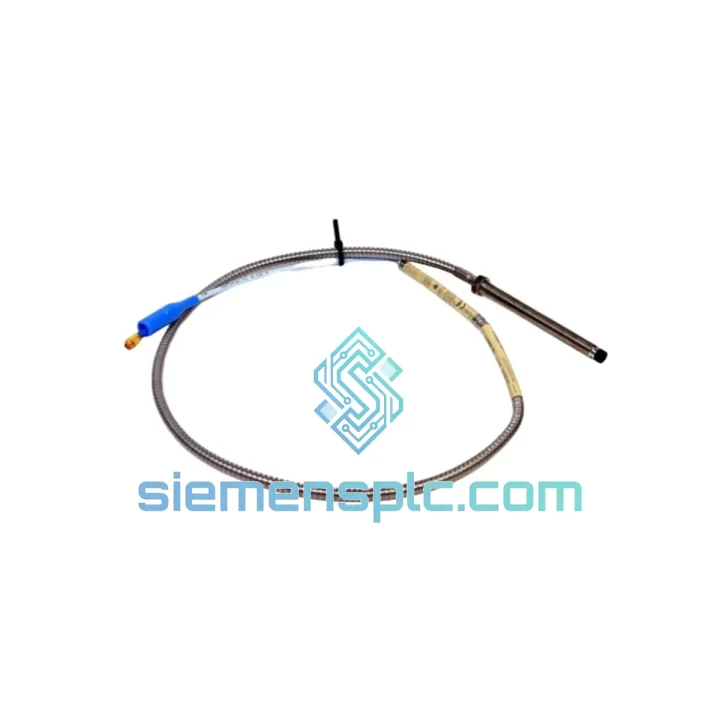

The Bently Nevada 330102-00-12-10-02-05 is an 8 mm eddy-current proximity probe belonging to the 3300 XL 8 mm Proximity Transducer System. It performs continuous, non-contact measurement of shaft radial displacement, axial position, and rotational speed in turbomachinery and heavy rotating equipment. This specific part number encodes a 1.0 m integral cable, standard (non-armored) jacket, and M10 × 1.0 threaded body — a configuration commonly specified for installations where the probe mounts close to the Proximitor® driver enclosure and cable routing distance is short.

In a machinery protection loop, the proximity probe is the primary sensing element. Its output — a DC voltage proportional to the gap between probe tip and shaft surface — feeds directly into the Proximitor® driver, which conditions the signal and forwards it to the 3500 Series monitor rack. The accuracy and long-term stability of this first-stage measurement determine the reliability of every downstream alarm, trip, and trend record in the system. Selecting the correct probe variant is therefore not a procurement formality; it is a system integrity decision.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330102-00-12-10-02-05 operates on the eddy-current (inductive) measurement principle. A high-frequency oscillator within the paired Proximitor® driver — typically 1.0 MHz — drives a resonant LC circuit whose inductive element is the probe coil. When a conductive target enters the probe’s electromagnetic field, eddy currents are induced on the target surface, loading the LC circuit and reducing its Q-factor. This loading is detected as a change in oscillator amplitude, which is demodulated and scaled to produce the −24 VDC-referenced output voltage.

Coil and Housing Architecture: The 8 mm probe body houses a precision-wound, epoxy-encapsulated coil assembly. The encapsulation serves two functions: it mechanically stabilizes the coil geometry against vibration and thermal cycling, and it provides a hermetic barrier against process fluids, steam condensate, and lubricating oil mist — all common in turbomachinery environments. The M10 × 1.0 thread allows fine axial positioning during installation, enabling the technician to set the static gap to within ±0.05 mm of the target value before locknut torquing.

EMC Design: The integral coaxial cable is a critical EMC element. The outer shield is grounded at the Proximitor® driver end only (single-point grounding), preventing ground-loop currents that would appear as low-frequency noise on the measurement signal. The cable’s characteristic impedance is matched to the driver input to minimize reflections at the 1 MHz carrier frequency. In variable-frequency drive (VFD) environments — where common-mode noise on motor frames can reach several hundred volts — this shielding architecture maintains signal integrity without requiring additional external filtering.

Thermal Compensation: The eddy-current sensitivity coefficient has a temperature dependence of approximately −0.05% per °C for standard AISI 4140 targets. Bently Nevada’s 3300 XL Proximitor® drivers incorporate a temperature compensation network that corrects for this drift over the probe’s rated operating range, maintaining measurement accuracy to within ±1% of full scale across the full thermal envelope. This is particularly relevant for steam turbine applications where probe body temperatures can vary by 80–100 °C between cold startup and full-load operation.

Short-Cable Configuration Rationale: The 1.0 m integral cable variant (part number suffix -12-10) is specified when the Proximitor® driver enclosure is mounted directly on or adjacent to the machine bearing housing. This minimizes the total cable capacitance in the measurement loop, which directly affects the linearity of the output at the extremes of the measurement range. Longer cable runs require the use of matched extension cables (330130 series) to maintain system calibration; substituting an unmatched cable degrades sensitivity by a predictable but installation-specific factor.

System Integration Benefits

• Direct 3500 Rack Compatibility: The probe integrates without signal conditioning adapters into the 3500/40M Proximitor® Monitor and 3500/42M Position Monitor, enabling plug-and-play replacement in existing machinery protection systems without reconfiguration of monitor channel scaling.
• API 670 Loop Compliance: As a factory-calibrated component of the 3300 XL transducer system, this probe satisfies the API 670 requirement for matched, calibrated probe-driver pairs, simplifying third-party inspection and insurance audit documentation.
• Deterministic Signal Latency: The analog output architecture introduces no digital processing delay between shaft displacement and monitor input. Signal propagation from probe tip to monitor analog input is governed only by cable capacitance and driver bandwidth — typically <1 ms — preserving the real-time response required for overspeed and high-vibration trip functions.
• Non-Contact Measurement Eliminates Wear: Unlike contact-type displacement sensors, the eddy-current probe has no mechanical interface with the rotating shaft. There is no wear mechanism, no lubrication requirement, and no risk of probe-induced shaft scoring. Mean time between replacement is determined by environmental factors (temperature, chemical exposure) rather than mechanical fatigue.
• Diagnostic Transparency via Gap Voltage: The DC component of the Proximitor® output provides a continuous, real-time indication of the static probe-to-shaft gap. Operators can monitor gap drift over time to detect bearing wear, shaft bow, or probe mounting looseness without removing the probe from service — a significant advantage over periodic manual inspection.
• Broad DCS/PLC Integration: The −24 VDC-referenced analog output is compatible with standard ±10 V or 4–20 mA signal conditioners, enabling direct integration into Siemens SIMATIC, ABB 800xA, Honeywell Experion, and Emerson DeltaV distributed control systems without custom interface hardware.
• Hazardous Area Deployment: ATEX/IECEx intrinsically safe variants of the 3300 XL probe are available for Zone 1/Zone 2 (Gas Group IIC) installations. The IS barrier pairing is documented in the Bently Nevada system certification, simplifying SIL verification under IEC 61511.
• Reduced Commissioning Time: Factory calibration of the probe-driver pair means that field calibration is limited to gap setting verification. There is no requirement for in-situ sensitivity calibration, reducing commissioning labor by an estimated 2–4 hours per measurement point compared to non-matched sensor systems.
