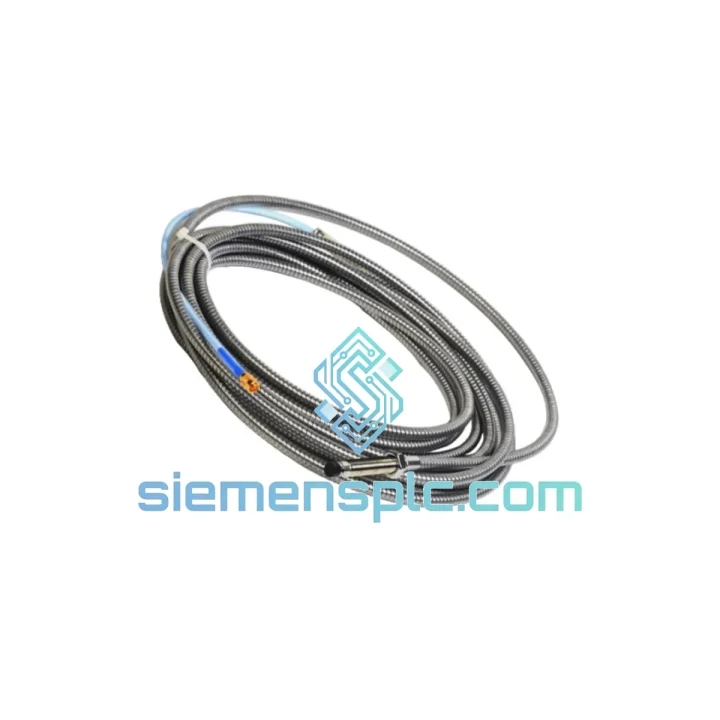

Bently Nevada 330102-00-16-10-02-00 Proximity Probe

330102-00-16-10-02-00 In Stock — Every Hour of Downtime Costs You More Than This Module

Your turbine is tripped. The control room is dark. Maintenance is standing by. The bottleneck is a single 8mm proximity probe — and you need it now. The Bently Nevada 330102-00-16-10-02-00 is on the shelf in Xiamen. We ship same day. While your competitors wait 4–6 weeks for OEM lead times, your machine is back online.

This is not a catalog listing. This is a field-ready replacement unit, inspected, verified, and packed for express air freight before you finish reading this page.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls teach you one thing: most 330102 failures are misdiagnosed. Before you condemn the probe, work through this sequence.

Step 1 — Isolate the fault in the measurement chain. The 3300 XL system is a three-component chain: probe → extension cable → proximitor. A fault anywhere in the chain produces the same symptom at the monitor: a gap voltage out of range, typically reading –24 VDC (open circuit) or 0 VDC (short). Disconnect the extension cable at the proximitor junction box. Measure DC voltage at the proximitor input terminals. If you read –24 VDC with the cable disconnected, the proximitor is healthy — the fault is in the cable or probe.

Step 2 — Check the extension cable first. Extension cables fail far more often than probes. Flex the cable along its length while monitoring the gap voltage. Any intermittent spike or dropout confirms cable failure. Replace the 330130-series extension cable before touching the probe.

Step 3 — Verify total system cable length. The 330102-00-16-10-02-00 is factory-calibrated for a 5.0 m total system length (probe integral cable + extension cable). If a previous technician substituted a 9.0 m extension cable, your sensitivity will be off by approximately 8–12%, and the monitor will flag a calibration fault. The suffix “-16” in the part number denotes 16 ft (5.0 m). Match it exactly.

Step 4 — Inspect the probe tip and mounting threads. Eddy current probes fail mechanically before they fail electrically. Check the probe tip for impact damage, corrosion pitting, or oil contamination that has hardened into a dielectric layer. Clean with isopropyl alcohol. Inspect the 10-32 UNF mounting threads — cross-threading during a previous installation is a common root cause of intermittent signal loss.

Step 5 — Set the air gap correctly on the new probe. Target gap for the 330102 on a standard 4140 steel shaft is 1.0 mm ± 0.1 mm (approximately 40 mil). Use a calibrated feeler gauge or a digital oscilloscope monitoring the proximitor output. At 1.0 mm gap, the output should read approximately –10.5 VDC ± 0.5 V. Do not rely on the monitor’s OK relay alone — verify the gap voltage directly at the proximitor terminal strip.

Step 6 — Non-standard target materials. If your shaft is stainless steel (316L, 17-4PH) or titanium, the factory AISI 4140 calibration is invalid. Sensitivity can drop by 20–40%. You need a target-material-specific calibration curve or a field recalibration kit. Flag this before commissioning — a miscalibrated probe on a critical machine is worse than no probe.

Common fault indicators on 3300 XL monitors:

• OK LED off, gap voltage –24 VDC — open circuit. Probe tip damaged or cable severed.
• OK LED off, gap voltage 0 VDC — short circuit. Cable insulation failure or connector moisture ingress.
• OK LED on, vibration reading erratic — intermittent cable fault or probe tip contamination.
• OK LED on, static gap reading drifts slowly — thermal expansion of shaft or bearing housing. Normal during startup; abnormal at steady-state operating temperature.
• Alert/Danger relay trips at low vibration amplitude — check for electrical noise coupling from VFD or grounding fault. Verify shield continuity from probe to proximitor chassis ground.

Reliability in Harsh Conditions

The 330102-00-16-10-02-00 is not a laboratory instrument. It is built to survive the environments that destroy lesser sensors.

Vibration: The probe body and cable assembly are qualified to withstand continuous vibration levels that would fatigue standard industrial sensors within weeks. The integral cable strain relief prevents work-hardening fatigue at the probe body junction — the most common mechanical failure point on competitive products. In compressor trains running at 3,000–12,000 RPM with significant foundation resonance, this distinction is the difference between a sensor that lasts one maintenance cycle and one that runs for years.

Temperature: The –35°C to +177°C operating range covers outdoor installations in northern climates during winter commissioning through bearing housings on high-speed steam turbines at elevated steady-state temperatures. The cable jacket compound maintains flexibility and dielectric integrity across this full range. Thermal cycling between cold startup and hot steady-state operation does not degrade the factory calibration.

Moisture and Contamination: IP67 rating means the probe survives temporary immersion. In practice: resistance against high-pressure wash-down, oil mist saturation in gearbox enclosures, and condensation during extended cold shutdowns. The 10-32 UNF connector interface, properly mated and sealed with the supplied O-ring, maintains signal integrity in wet environments where unprotected connectors fail within months.

Chemical Exposure: Cable jacket and probe body materials resist the hydrocarbon lubricants, turbine oils, and cleaning solvents common in power generation and petrochemical facilities. Avoid prolonged exposure to strong acids or ketone-based solvents, which degrade the jacket compound over extended contact periods.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province, China — one of the most connected export ports in Asia, with direct DHL and FedEx international gateway access. Here is exactly what happens after you confirm your order:

• Order confirmed before 14:00 CST — unit is picked, inspected, and packed the same afternoon. Airway bill generated and handed to DHL/FedEx by 18:00 CST.
• DHL Express Worldwide — typical transit: 2–3 business days to Europe, 2–4 business days to North America, 1–2 business days to Southeast Asia. Tracking number provided within 2 hours of dispatch.
• FedEx International Priority — available for destinations where FedEx has faster transit. We select the faster carrier for your specific destination automatically.
• Commercial invoice and packing list — prepared to your specifications. HS code 9031.80 (precision measuring instruments) is standard. ATEX documentation, material certificates, and inspection records included upon request.
• Customs clearance support — full export documentation provided. For destinations with complex import requirements (Brazil, India, Russia), contact us before ordering so we can prepare the correct documentation set.
• Emergency freight options — for genuine plant-down situations, next-flight-out courier service from Xiamen Gaoqi International Airport is available. Contact us directly on WhatsApp for real-time coordination.

We have shipped to refineries in the Middle East, power stations in Southeast Asia, paper mills in Scandinavia, and LNG terminals in Australia. The logistics process is proven. Your machine does not have to wait.
