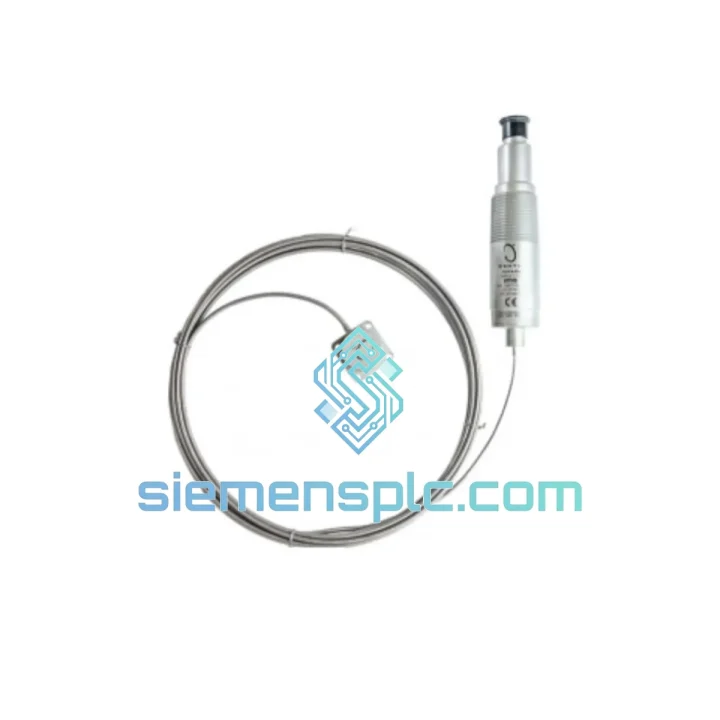

Bently Nevada 330102-00-25-10-02-05 Proximity Probe – 3300 XL Series

Bently Nevada 330102-00-25-10-02-05: Non-Contact Displacement Transducer for Rotating Machinery Protection

The 330102-00-25-10-02-05 is an 8mm eddy current proximity probe within the Bently Nevada 3300 XL transducer platform, designed for continuous, non-contact measurement of radial shaft vibration and absolute shaft centerline position in turbomachinery subject to API 670 5th Edition machinery protection requirements. The unit ships with a 25mm armored integral coaxial cable — a configuration selected for bearing housing installations where internal routing clearance constrains the cable exit geometry. The complete measurement chain requires a separately specified 3300 XL extension cable and a 3300 XL 8mm Proximitor oscillator-demodulator to produce the calibrated DC voltage output consumed by protection monitors or DCS analog input cards.

The probe functions as the passive inductive element in a resonant LC circuit driven by the Proximitor at approximately 1 MHz. Mechanical gap variation between the probe tip and the rotating shaft surface modulates the effective impedance of this circuit through eddy current loading. The Proximitor demodulates the resulting amplitude envelope into a continuous, low-impedance DC voltage spanning –2 VDC at minimum gap to –18 VDC at maximum gap, with a nominal scale factor of 7.87 V/mm (200 mV/mil). This analog output carries no protocol framing, no sampling quantization, and no firmware scan cycle dependency. The signal is physically present at the monitor input within the coaxial cable propagation delay — under 10 ns/m — establishing the physical basis for the sub-millisecond trip response times mandated by API 670 Table 1.

The –3 dB frequency response of the 330102-00-25-10-02-05 measurement chain extends from DC to 10,000 Hz. This bandwidth simultaneously covers the DC shaft centerline position component used for thrust position monitoring, the 1X synchronous imbalance component at running speed, 2X misalignment harmonics, sub-synchronous oil whirl instability characteristically appearing at 0.43–0.48× running speed, and high-frequency blade-pass or gear-mesh events up to 10 kHz. A single installed probe therefore provides the complete vibration frequency spectrum and the absolute position datum from one bearing housing penetration, without supplementary high-frequency accelerometers for fault detection within this bandwidth.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The electromagnetic architecture of the 330102-00-25-10-02-05 centers on a precision-wound coil encapsulated within a ferrite-loaded housing. The Proximitor drives this coil at ~1 MHz, projecting a confined electromagnetic field axially from the probe face. When the rotating shaft enters this field, the time-varying flux induces surface eddy currents whose secondary magnetic field opposes the primary, increasing the oscillator’s effective load impedance. The Proximitor demodulates the resulting amplitude reduction into the calibrated DC output. The entire transduction chain is passive at the probe — no local power conditioning, no signal processing IC, and no firmware — which eliminates the failure modes associated with embedded electronics in high-temperature bearing housing environments.

EMC Shielding Architecture: The ferrite housing geometry confines the sensing field to the axial direction, suppressing lateral field leakage that would otherwise introduce cross-axis sensitivity errors in XY orbit probe pairs installed at 90°. The armored coaxial integral cable provides a continuous Faraday shield from the coil assembly to the connector interface, attenuating common-mode RF interference from variable-frequency drives, high-current bus bars, and inductive motor loads. Shield continuity is maintained through the connector mating interface into the extension cable shield, forming an unbroken ground reference from probe tip to Proximitor chassis ground — a single-point ground topology that prevents ground loop currents from appearing as measurement noise on the DC output.

Thermal Coefficient Management: The coil conductor alloy and ferrite core material are selected and trimmed at the factory to produce a combined thermal coefficient that holds scale factor within ±1% of 7.87 V/mm across the full –35°C to +177°C operating range. For axial thrust position channels, this specification is operationally significant: a 1% scale factor error at a 2 mm measurement span produces a 20 µm position error, which may represent a material fraction of the alarm-to-trip margin on high-speed compressor thrust bearings where total allowable axial movement is typically 0.5–1.0 mm.

Mechanical Retention Design: The M10 × 1.0 fine-pitch thread provides higher thread engagement force per unit of axial displacement than coarser thread forms, reducing the probability of vibration-induced probe backing-out in high-amplitude vibration environments such as compressor surge events or turbine blade-loss transients. The 316 stainless steel probe body resists sulfur-bearing oil mist, hydrogen sulfide, and process gas condensate atmospheres present in hydrocarbon turbomachinery bearing housings. The 25mm armored integral cable protects the coaxial dielectric at the bearing housing exit point — the highest mechanical abrasion risk location in the cable run — through a stainless steel braid over-armor layer.

System Integration Benefits

• Zero-latency analog signal delivery: The –2 V to –18 VDC output is continuously present with no scan cycle, no fieldbus arbitration delay, and no firmware dependency. The 3500 rack monitor executes trip logic against this signal within its hardware-defined response time, typically under 1 ms for direct-wired channels, satisfying API 670 Table 1 without software parameter tuning.
• Drop-in mechanical and electrical compatibility: The M10 × 1.0 thread, 8mm tip diameter, and 7.87 V/mm scale factor are dimensionally and electrically identical to the predecessor 330100 and 330101 series. Field replacement does not require Proximitor recalibration, gap re-verification beyond standard installation procedure, or monitor channel reconfiguration when substituting a like-for-like 3300 XL unit.
• Three measurement parameters from one bearing housing penetration: The AC component of the Proximitor output encodes radial vibration amplitude and spectral content. The DC component encodes absolute shaft centerline position. With a Keyphasor notch on the shaft, the same probe provides the phase reference for synchronous vibration analysis — three independent measurement parameters from a single installed probe.
• Complete diagnostic bandwidth in a single channel: DC-to-10 kHz frequency response captures 1X imbalance, 2X misalignment harmonics, sub-synchronous oil whirl at 0.43–0.48× running speed, and blade-pass frequencies to 10,000 Hz. No supplementary high-frequency accelerometer is required for fault detection within this bandwidth.
• Field gap verification with standard instrumentation: The Proximitor output voltage at the installed probe gap is directly readable with a standard digital voltmeter. A technician verifies correct installation gap — typically –10 VDC ± 1 V at nominal 1.0 mm gap — without a calibration fixture, oscilloscope, or proprietary diagnostic tool, reducing commissioning time at remote sites.
• Full 3300 XL ecosystem interoperability: The probe mates with all 3300 XL extension cables (1 m through 9 m) and all 3300 XL Proximitor variants, including the standard 3300 XL 8mm Proximitor and the 3300 XL NSv low-power variant used in battery-backed remote monitoring installations. No adapter or impedance matching network is required.
• Component-level fault isolation without probe removal: The three-component architecture (probe, extension cable, Proximitor) allows fault isolation by measuring Proximitor output with the probe disconnected. A –24 VDC output indicates probe open circuit; –2 VDC indicates probe short circuit; a mid-range output indicates a gap fault. This unambiguous component-level diagnosis eliminates unnecessary probe removal from the bearing housing during fault investigation.
• Long-term platform parts availability: The 3300 XL platform has maintained continuous production with stable mechanical and electrical specifications for over two decades. Probe, extension cable, and Proximitor are available as discrete line items, enabling targeted replacement of a failed component without forced upgrade of the entire transducer chain or the associated monitor rack channel.

Quality Assurance & Global Logistics

Every 330102-00-25-10-02-05 unit dispatched from siemensplc.com is sourced through verified supply channels with traceability to authorized Bently Nevada distribution documentation. Pre-shipment inspection covers physical examination of probe body, thread condition, and connector interface integrity; coaxial cable shield continuity measurement; impedance verification against published Bently Nevada factory acceptance criteria; and serial number cross-reference against known counterfeit part databases. Units failing any inspection criterion are quarantined and removed from available inventory.

Packaging conforms to international air freight standards: units are sealed in anti-static, moisture-barrier poly bags with desiccant, placed in foam-lined inner cartons, and enclosed in double-wall corrugated outer cartons rated for 80 kg/cm² compression. Each shipment includes a commercial invoice, packing list, and available factory documentation. A 12-month warranty against manufacturing defects applies from the date of shipment, with confirmed DOA units replaced within 5 business days of fault verification.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport cargo facilities. Standard export shipments are dispatched via DHL Express or FedEx International Priority. Indicative transit times: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–4 business days, Middle East 4–7 business days. Same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include real-time carrier tracking and liability coverage. Export documentation is prepared under HS Code 9031.80 for streamlined customs clearance in principal import markets.
