Bently Nevada 330102-00-28-05-02-00 Proximity Probe – 3300 XL Series

Bently Nevada 330102-00-28-05-02-00 — 8 mm Eddy-Current Proximity Probe for Critical Rotating Machinery Protection

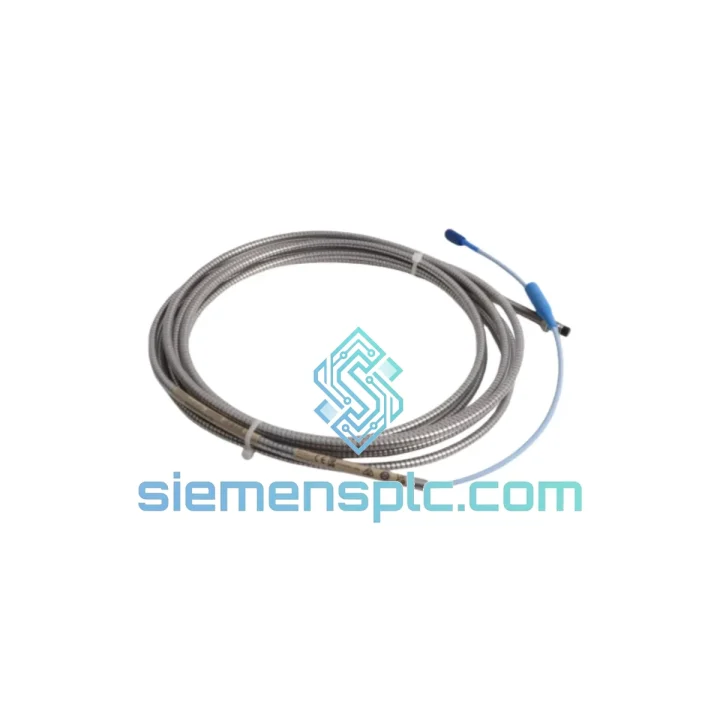

The 330102-00-28-05-02-00 is an 8 mm eddy-current proximity probe manufactured by Bently Nevada as part of the 3300 XL measurement system. It performs non-contact, continuous measurement of shaft radial vibration, axial position (thrust), and differential expansion in turbomachinery and other critical rotating equipment. The probe operates on the eddy-current principle: a high-frequency oscillator drives a coil wound at the probe tip, generating an electromagnetic field. When a conductive target — typically a steel shaft journal — enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and producing a DC output voltage proportional to the gap distance. This mechanism delivers sub-micron displacement resolution with zero mechanical contact, zero wear, and a frequency response flat from DC to 10,000 Hz.

In a control loop context, the 330102-00-28-05-02-00 functions as the primary sensing element in a three-component measurement chain: probe → extension cable (330180 series) → proximitor/driver (330104 or 330130). The proximitor conditions the raw oscillator signal into a calibrated ±voltage output, which feeds directly into Bently Nevada 3300 or 3500 series monitor cards. Those monitors execute alarm logic, trip relay actuation, and Modbus/PROFIBUS data forwarding to the plant DCS or safety instrumented system (SIS). The probe itself carries no active electronics — all signal conditioning is external — which is a deliberate design choice that eliminates heat-sensitive components from the high-temperature probe-tip environment and simplifies field replacement without recalibration of the full loop.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330102-00-28-05-02-00 embodies several hardware design decisions that distinguish it from generic eddy-current sensors available in the industrial market.

Passive Probe Architecture. The probe tip contains only a wound coil and a precision ceramic former — no active ICs, no voltage regulators, no temperature-compensation circuits. All active signal conditioning is relocated to the proximitor, which sits outside the machine casing in a cooler, more accessible environment. This separation means the probe can tolerate tip temperatures up to 177 °C without thermal derating of electronic components, and field replacement requires only a standard spanner — no soldering, no firmware update, no re-zeroing of the full measurement chain.

Matched-Set Calibration. Bently Nevada calibrates each probe, extension cable, and proximitor as a matched set at the factory. The calibration data is encoded in the proximitor’s internal resistor network, which trims the sensitivity to exactly 7.87 V/mm for the specific coil impedance of the paired probe. Substituting an unmatched probe introduces a sensitivity error that is not visible in the output voltage but manifests as a proportional displacement measurement error — potentially ±5 % or greater depending on coil batch variation. This architecture enforces traceability: every replacement probe must carry a matching calibration certificate.

EMC Shielding Architecture. The integral cable uses a double-layer coaxial construction: an inner conductor carries the oscillator drive signal, surrounded by a polytetrafluoroethylene (PTFE) dielectric, then a braided copper shield, then an outer armor jacket. The shield is grounded at the proximitor end only (single-point grounding), which prevents ground-loop currents from injecting common-mode noise into the measurement signal. In VFD-dense environments where switching frequencies of 2–16 kHz are present, this construction provides >40 dB of common-mode rejection across the probe’s measurement bandwidth.

Mechanical Robustness. The probe body is machined from 316 stainless steel with a ceramic-filled epoxy tip encapsulant. The M10 × 1.0 mounting thread is fine-pitch, which provides fine axial positioning resolution (0.1 mm per degree of rotation) and resists self-loosening under machinery vibration without requiring thread-locking compounds that complicate future removal. The IP67 rating is achieved through a dual O-ring seal at the cable entry point, verified by a 30-minute immersion test at 1 m depth per IEC 60529.

Backward Compatibility. The 330102-00-28-05-02-00 is dimensionally and electrically identical to legacy 3300 series probes. The M10 × 1.0 thread, 3-pin MIL connector pinout, and –24 VDC supply requirement are unchanged, allowing direct drop-in replacement in existing installations without modifying probe holders, conduit fittings, or monitor card wiring.

System Integration Benefits

• API 670 Compliance Out of the Box. The probe meets the 5th Edition API 670 standard for machinery protection systems, satisfying EPC contractor and end-user specifications without additional qualification testing or documentation.
• Zero-Contact Measurement Eliminates Wear. Non-contact sensing produces no friction, no lubrication requirement, and no mechanical fatigue. Published MTBF exceeds 200,000 hours in continuous operation, reducing planned maintenance intervals and unscheduled outage risk.
• DC-to-10 kHz Flat Response Captures All Fault Signatures. The frequency range covers synchronous (1×) and sub-synchronous vibration, blade-pass frequencies in multi-stage compressors, and high-frequency rub events — all within a single sensor without range switching.
• Direct Integration with 3300 and 3500 Monitor Cards. The calibrated output voltage feeds directly into Bently Nevada rack monitors without signal conditioning adapters. Monitor cards execute alarm and trip logic in hardware, achieving relay actuation latency under 20 ms from fault onset to output — a deterministic response that software-based systems cannot guarantee.
• Modbus and PROFIBUS Data Forwarding. When paired with 3500 series monitors, vibration and position data is available on Modbus RTU/TCP and PROFIBUS DP simultaneously, enabling parallel feeds to the plant DCS historian and the SIS without data concentration bottlenecks.
• Diagnostic Transparency via Gap Voltage Monitoring. The –2 to –18 VDC output range provides a continuous health indicator: a gap voltage outside the –10 ± 2 VDC nominal operating window indicates probe misalignment, target surface damage, or cable fault — detectable during normal operation without removing the probe from service.
• High-Temperature Deployment Without Cooling Infrastructure. The 177 °C tip rating covers bearing pedestal temperatures in steam turbines operating at inlet conditions up to 600 °C, eliminating the cooling air or water circuits required by alternative sensor technologies in hot-section applications.
• ATEX/IECEx Variant Available for Hazardous Areas. Zone 1 and Zone 2 certified variants are available on request, allowing the same measurement architecture to be deployed in gas-compression trains and offshore platform applications without changing the monitor card or wiring infrastructure.
