Bently Nevada 330102-00-35-10-02-00 Proximity Probe – 3300 XL Series

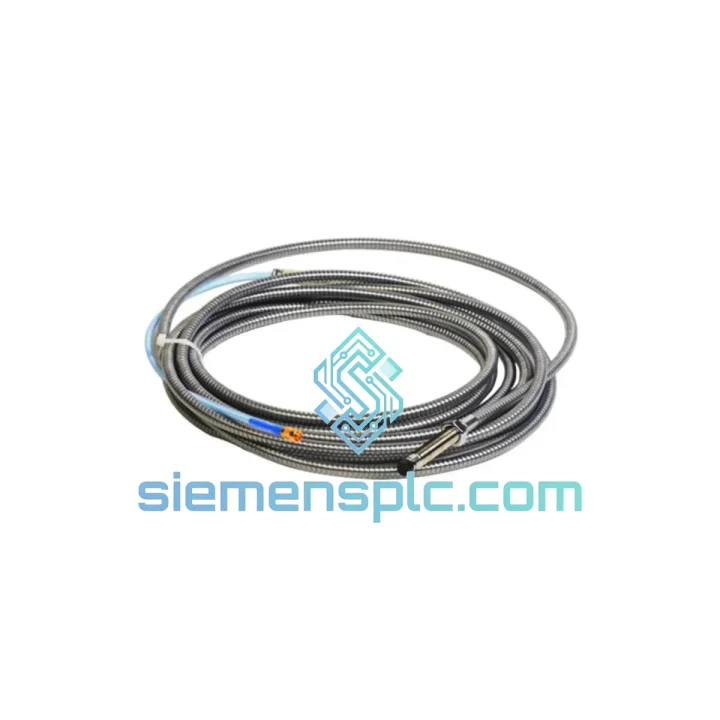

Bently Nevada 330102-00-35-10-02-00: 8mm Eddy-Current Proximity Probe for Continuous Rotating Machinery Surveillance

The Bently Nevada 330102-00-35-10-02-00 is an 8mm diameter eddy-current proximity probe belonging to the 3300 XL Proximity Transducer System. It operates on the principle of electromagnetic induction: a high-frequency oscillator within the paired Proximitor® driver energizes a coil wound at the probe tip, generating an alternating magnetic field. When a conductive target surface enters this field, eddy currents are induced, loading the oscillator circuit and producing a DC output voltage proportional to the gap distance. This non-contact measurement principle eliminates mechanical wear, making the probe suitable for continuous, uninterrupted service across the full operational life of the monitored machine.

Within a turbomachinery protection architecture, this probe functions as the primary sensing element for radial shaft vibration, axial position (thrust), and phase reference (Keyphasor®) measurements. Its output feeds directly into Bently Nevada 3300 or 3500 series monitors, where the analog signal is conditioned, digitized, and compared against alarm and danger setpoints defined under API 670 machinery protection standards. The probe’s calibrated sensitivity of 7.87 V/mm (200 mV/mil) is factory-matched to the 3300 XL Proximitor® driver, ensuring the complete transducer system meets the ±1% linearity specification required for API 670 compliance without field recalibration.

The 5-meter integral cable assembly on the 330102-00-35-10-02-00 is a fixed-length component. Total system cable length — probe cable plus extension cable — must remain constant at the calibrated value. Any substitution of cable length invalidates the factory calibration and requires a full system recalibration against a certified calibration fixture. This constraint is a fundamental characteristic of eddy-current transducer systems and must be respected during installation and maintenance planning.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Oscillator Circuit Stability and EMC Design: The 3300 XL probe tip houses a precision-wound sensing coil encapsulated in a thermally stable ceramic composite. The coil geometry is optimized to produce a uniform electromagnetic field profile within the linear measurement range, minimizing sensitivity variation caused by target surface irregularities. The coaxial cable construction — with a continuous braided shield bonded to the probe body ground — provides a low-impedance return path that attenuates common-mode electromagnetic interference (EMI) induced by adjacent motor drives, high-current bus bars, and RF sources common in industrial switchgear environments. This shielding architecture maintains signal integrity at the millivolt level across cable runs up to the maximum system-specified length.

Thermal Compensation Architecture: Eddy-current sensitivity is inherently temperature-dependent because both the coil resistance and the target material’s electrical conductivity vary with temperature. The 330102-00-35-10-02-00 incorporates a passive thermal compensation network within the probe body that counteracts the positive temperature coefficient of the coil, maintaining sensitivity within ±0.5% across the full −35°C to +177°C operating range. This is critical in steam turbine bearing housings where bearing metal temperatures can reach 120°C under full load, and probe body temperatures track closely with the bearing housing surface.

Mechanical Robustness and Sealing: The probe body is machined from 316L stainless steel, providing resistance to the oil mist, steam condensate, and process gas atmospheres present in turbomachinery bearing pedestals. The M10 × 1 thread allows precise gap adjustment in 0.1 mm increments using a standard probe holder, and the locknut design maintains gap setting under the vibration loads specified in ISO 10816. The IP67 rating of the probe body ensures that transient flooding events — common during turbine washing or seal failures — do not compromise the sensing element or cable termination.

Coaxial Signal Path Integrity: The integral cable uses a low-loss dielectric with a controlled characteristic impedance matched to the Proximitor® driver input. This impedance matching prevents signal reflections that would introduce measurement error at the high oscillator frequencies (nominally 1.0 MHz) used by the 3300 XL system. The cable jacket is rated for continuous exposure to petroleum-based lubricating oils and synthetic turbine oils (PAO and ester-based), preventing jacket degradation and maintaining the cable’s mechanical flexibility over a service life exceeding 10 years in typical installations.

System Integration Benefits

• Zero-recalibration installation: Factory-matched sensitivity to the 3300 XL Proximitor® driver means the complete transducer system meets API 670 accuracy requirements immediately upon installation, without requiring a field calibration fixture or specialist calibration technician.
• Deterministic analog output: The DC output voltage is a continuous, real-time representation of shaft gap with no sampling latency, enabling the monitor to detect sub-millisecond transient events such as rub initiation or blade-pass excitation that would be missed by sampled digital sensors.
• Seamless monitor compatibility: Direct electrical compatibility with Bently Nevada 3300/16, 3300/20, 3500/42M, and 3500/45 monitors eliminates the need for signal conditioning adapters, reducing wiring complexity and potential failure points in the signal chain.
• API 670 compliance support: The probe’s documented linearity, sensitivity, and temperature performance data satisfies the transducer system verification requirements of API 670 5th Edition, simplifying machinery protection system acceptance testing and insurance audits.
• Diagnostic transparency via gap voltage: The DC bias voltage at the monitor input provides a continuous indication of probe-to-shaft gap, allowing maintenance personnel to detect probe loosening, target surface wear, or probe holder corrosion without removing the probe from service.
• Keyphasor® phase reference capability: When installed as a phase reference probe, the 330102-00-35-10-02-00 generates a once-per-revolution trigger pulse with sub-microsecond timing accuracy, enabling synchronous vibration analysis (1X, 2X, NX vector decomposition) in the paired monitor or data acquisition system.
• Redundant measurement architecture support: The probe’s compact M10 body allows dual-probe installation in standard API 670 probe holders (90° separation), supporting redundant radial vibration measurement channels required for critical machinery classifications (Category I and II per API 670).
• Long-term spare parts availability: As a current-production Bently Nevada catalog item, the 330102-00-35-10-02-00 is supported by an established global spare parts supply chain, ensuring replacement availability throughout the 20–30 year operational life of the monitored turbomachinery asset.
