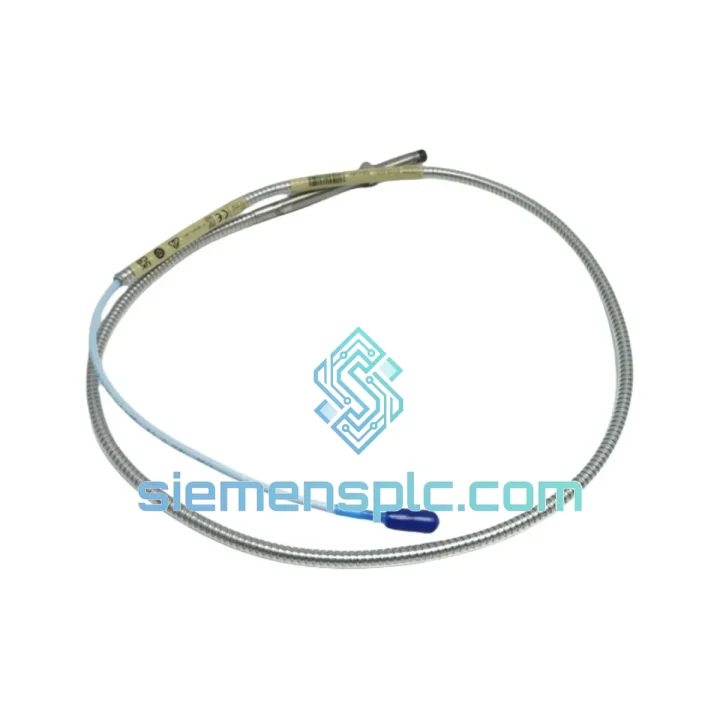

Bently Nevada 330102-00-35-10-02-CN Proximity Probe

330102-00-35-10-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every minute a turbine, compressor, or pump sits idle costs real money. When your Bently Nevada 3300 XL proximity transducer system throws a fault and your machinery protection system trips offline, you don’t have time for a 6-week OEM lead time. The Bently Nevada 330102-00-35-10-02-CN eddy-current proximity probe is on our shelf in Xiamen right now — verified, tested, and ready to clear customs today. We’ve shipped this exact part number to refineries in the Middle East, power plants in Southeast Asia, and compressor stations in Europe. Same-day dispatch is not a marketing line; it’s our standard operating procedure.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 330102-00-35-10-02-CN is a passive eddy-current probe — no internal electronics, which means failures are almost always mechanical or installation-related. Here’s what field experience teaches about this part:

Common Fault Codes & Root Causes

• 3500 Monitor NOK light, gap voltage out of range: Nine times out of ten this is a probe tip damaged by a rub event, or the probe installed at the wrong gap. The 330102-00-35-10-02-CN requires a gap of 1.0 mm (40 mil) to achieve nominal −10 VDC output with the matched 330180 Proximitor. Verify gap with a feeler gauge before condemning the probe.
• Intermittent signal / noisy waveform on 3500 dynamic display: Check the extension cable connector (330130 series) at both the probe junction and Proximitor input. Moisture ingress at the field connector is the #1 cause of intermittent faults on this probe family. Torque the connector to 1.1 N·m and apply thread sealant in wet environments.
• Sensitivity drift — output reads low at correct gap: The probe tip has likely been exposed to a non-standard target material (stainless shaft, titanium impeller). This probe is calibrated for AISI 4140 carbon steel. If your target is non-standard, system recalibration with the actual target material is mandatory — a new probe alone will not fix this.
• Complete loss of signal — gap voltage reads −24 VDC (rail): Open circuit in the probe cable. Flex the cable along its length while watching the monitor. If the signal flickers, the cable has an internal break — replace the full probe assembly. Do not splice the coaxial cable; impedance mismatch will corrupt the measurement.

Step-by-Step Replacement Procedure

• Step 1 — Isolate: Notify the control room. Place the 3500 monitor channel in bypass mode to prevent a spurious trip during probe swap. Do not disconnect the probe without bypassing — the monitor will interpret an open circuit as a machine fault.
• Step 2 — Record the gap: Before removing the old probe, record the existing gap voltage from the monitor front panel. This gives you a baseline for reinstall.
• Step 3 — Remove the probe: Unscrew using a 19 mm open-end wrench on the hex flat. Do not grip the cable or tip.
• Step 4 — Install the new 330102-00-35-10-02-CN: Thread in by hand first, then torque to 20 N·m. Set gap to achieve −10 VDC ±0.5 VDC at the Proximitor output. Each full rotation changes gap by the thread pitch (~1 mm).
• Step 5 — Verify system calibration: Must be used with matched 330130 extension cable and 330180 Proximitor. Mixing cable lengths or Proximitor models shifts the calibration curve. Confirm scale factor matches monitor configuration (200 mV/mil).
• Step 6 — Remove bypass and confirm OK status: Monitor should return to OK within 5 seconds of gap being within linear range. If NOK persists, recheck gap and connector integrity before suspecting a faulty new probe.

Reliability in Harsh Conditions

The 330102-00-35-10-02-CN was engineered for environments that destroy lesser sensors. The 316L stainless steel housing resists hydrogen sulfide, chloride-laden cooling water, and hydrocarbon mists common in compressor halls. The probe body is rated to 177°C continuous — sufficient for direct contact with steam turbine bearing housings without signal degradation. Vibration immunity is inherent to the non-contact eddy-current principle: no moving parts, no wear surfaces, no fatigue failure modes from mechanical vibration. The coaxial cable assembly uses a PTFE dielectric that maintains stable impedance from −35°C arctic installations to tropical offshore platforms running at 50°C ambient. This part has been deployed at LNG terminals in Qatar, geothermal plants in Indonesia, and offshore platforms in the North Sea — the probe performs identically in all of them because the physics don’t change with geography.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here’s exactly how your order moves:

• Order confirmed before 15:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx International Priority.
• Export documentation: Commercial invoice, packing list, certificate of origin, and HS code 9031.80 documentation prepared in parallel with packing — no delays at customs.
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days.
• Tracking: AWB number sent to your email within 2 hours of carrier pickup. Real-time tracking link included.
• Packaging: Anti-static foam insert, moisture-barrier bag, rigid outer carton rated for air freight handling. The probe tip is protected by a machined plastic cap — arrives ready to install.
• Bulk orders (5+ units): Consolidated shipment with volume freight rates. Contact us for a freight quote before placing a large order.
