Bently Nevada 330102-02-12-50-01-00 Proximity Transducer System – 3300 XL Series

Bently Nevada 330102-02-12-50-01-00 — 3300 XL Matched Proximity Transducer System for API 670 Machinery Protection

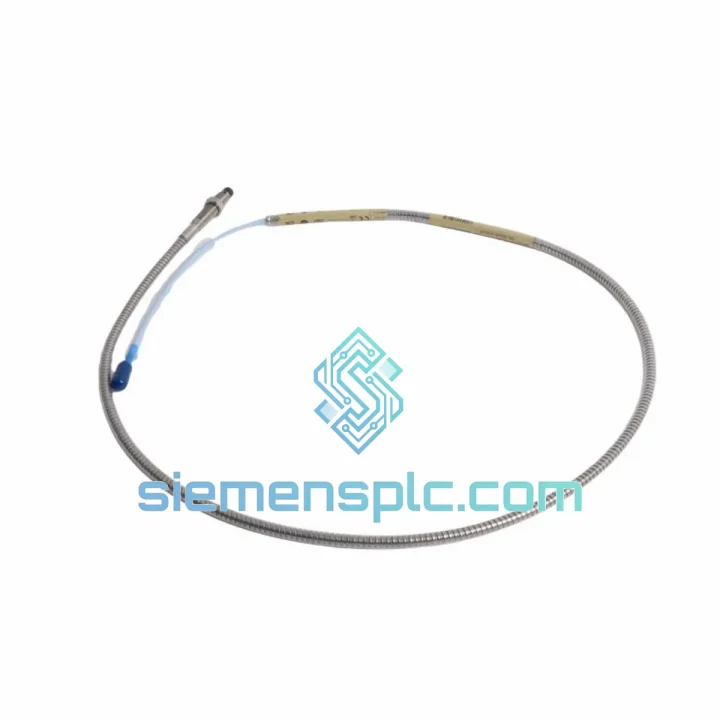

The 330102-02-12-50-01-00 is a factory-matched, three-component eddy current proximity transducer system within Bently Nevada’s 3300 XL platform. The assembly comprises a 5 mm diameter probe with a 2 m integral coaxial cable, a 5 m armoured extension cable, and a dedicated Proximitor® sensor — all calibrated as a unified measurement chain at the factory. The output is a DC voltage signal linearly proportional to the gap between the probe tip and a ferromagnetic or conductive target surface, with a nominal scale factor of 7.87 V/mm (200 mV/mil). This signal is consumed directly by Bently Nevada 3500 Series and 3300 Series monitor cards without any signal conditioning or scaling adjustment.

The system is the primary measurement element for radial shaft vibration, axial shaft position, differential expansion, and eccentricity monitoring in API 670-compliant machinery protection systems. Typical host machines include steam turbines, gas turbines, centrifugal and axial compressors, large motor-driven pumps, and expanders in refinery, LNG, petrochemical, and power generation service. The non-contact measurement principle means the probe imposes zero mechanical load on the shaft and introduces no wear mechanism — the sensor’s measurement accuracy is independent of shaft speed from 0 RPM to beyond 100,000 RPM.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330102-02-12-50-01-00 operates on the principle of electromagnetic impedance modulation. The Proximitor® sensor contains a temperature-compensated Colpitts oscillator — referenced to a ceramic resonator — that drives a sinusoidal excitation current at approximately 1 MHz through the coaxial cable to the probe’s sensing coil. The coil projects an alternating electromagnetic field axially from the probe tip. When a conductive target enters this field, eddy currents are induced on the target surface in accordance with Faraday’s law. These eddy currents generate a secondary magnetic field that opposes the probe field, increasing the effective impedance presented to the oscillator. The Proximitor® demodulates this impedance variation into a DC output voltage. The relationship between gap distance and output voltage is linear within the calibrated range, with the factory-trimmed scale factor held to ±1% tolerance.

EMC Architecture: The coaxial cable assembly uses a continuous braided copper shield bonded at the probe body and terminated at the Proximitor® housing, providing common-mode rejection exceeding 60 dB across the 10 Hz – 10 kHz band. The shield is grounded at the Proximitor® end only — a single-point grounding topology that eliminates ground-loop currents which would otherwise appear as spurious low-frequency displacement signals. In turbine hall environments with high-current bus bars, variable-frequency drives, and RF transmitters operating simultaneously, this architecture maintains signal integrity without additional filtering hardware.

Thermal Coefficient Management: PEEK (polyether ether ketone) is selected as the probe tip encapsulant for its coefficient of thermal expansion of 50 × 10⁻⁶ /°C and its dielectric stability across the full −35 °C to +177 °C probe operating range. Dimensional change in the encapsulant under thermal cycling is insufficient to shift the probe’s electrical characteristics outside the ±1% scale factor tolerance, eliminating the need for temperature compensation circuitry in the Proximitor®. This is particularly relevant in hot-section steam turbine bearing housings where ambient temperatures at the probe body routinely reach 130–150 °C during steady-state operation.

Cable Impedance Control: The extension cable is manufactured to a controlled characteristic impedance of 95 Ω ± 5 Ω. Impedance discontinuities at the probe-to-extension cable junction cause partial signal reflections that distort the oscillator’s high-frequency drive signal, degrading linearity at the upper end of the frequency response. The factory-matched cable set eliminates this mechanism. This is the technical basis for Bently Nevada’s prohibition on mixing probe, extension cable, and Proximitor® components between separately calibrated systems — a constraint that the 330102-02-12-50-01-00 part number encodes by specifying all three components as a single orderable unit.

Oscillator Frequency Stability: Frequency drift of the Colpitts oscillator over the full Proximitor® operating temperature range (−35 °C to +85 °C) is held to less than ±0.1% by the ceramic resonator reference. This stability level ensures that the scale factor does not require field recalibration during seasonal ambient temperature variation — a failure mode documented in lower-grade proximity systems using uncompensated LC oscillators, where scale factor drift of 2–5% over a 40 °C ambient swing is common.

System Integration Benefits

• Native rack compatibility with 3500 and 3300 Series monitors: The 200 mV/mil output is the native input scale for Bently Nevada monitor cards. No scale factor entry, no rack reconfiguration, and no signal conditioning module is required between the Proximitor® output and the monitor card input terminal.
• DC-coupled output enables zero-speed measurement: Static shaft position — eccentricity, thermal bow, and sag — is measurable at 0 RPM. This allows pre-start runout checks and slow-roll compensation data acquisition in the monitoring rack before the machine reaches operating speed, a capability unavailable with AC-coupled or piezoelectric sensors.
• Deterministic analog signal path: The Proximitor® output is a continuous analog DC voltage. There is no analog-to-digital conversion, no fieldbus protocol stack, and no packetisation latency. Signal propagation from shaft displacement to monitor card input is bounded by cable propagation delay (~5 ns/m), placing the total signal latency for a 7 m system below 40 ns — compatible with the fastest trip logic implemented in 3500 Series overspeed protection modules.
• Gap voltage as a field diagnostic tool: The DC output voltage at the Proximitor® output terminal is a direct, measurable indicator of probe installation gap. A technician with a standard DVM can verify the probe-to-shaft gap (nominal −10 VDC at 1.0 mm gap on AISI 4140 target), confirm cable continuity, and detect probe-to-target contact without removing the probe from the bearing housing or interrupting machine operation.
• X-Y orbital analysis with matched scale factors: When deployed as an X-Y probe pair for shaft orbit monitoring, factory-matched scale factors across both probes ensure amplitude and phase coherence between the two displacement channels. This produces geometrically accurate Lissajous orbit plots in the monitoring rack without per-channel gain correction, which is a prerequisite for reliable sub-synchronous instability detection in centrifugal compressors.
• API 670 compliance without third-party verification: The system meets the measurement accuracy (±1% scale factor), frequency response (DC – 10 kHz), and environmental requirements of API Standard 670, 5th Edition, for radial vibration, axial position, and differential expansion service. This eliminates the cost and schedule impact of third-party compliance testing on new installations.
• Hazardous area deployment without additional barriers: ATEX certification (available on applicable Proximitor® variants) permits installation in Zone 1 and Zone 2 classified areas — compressor seal gas environments, hydrogen-cooled generator housings, and offshore platform machinery spaces — without intrinsic safety barriers, reducing installation hardware count and panel space requirements.
• Long-term metrology stability with no wear mechanism: The non-contact measurement principle eliminates all mechanical wear at the sensing element. Field data from petrochemical installations document stable scale factors over service intervals exceeding 10 years without recalibration, reducing the total cost of ownership relative to contact-type displacement sensors that require periodic replacement due to tip wear.
• Backward compatibility with legacy 3300 installations: The 3300 XL platform maintains electrical and mechanical backward compatibility with earlier 3300 Series probe and Proximitor® hardware, allowing incremental system upgrades without full rack replacement — a significant capital cost advantage in brownfield refinery and power plant modernisation projects.

Quality Assurance & Global Logistics

All units of the 330102-02-12-50-01-00 dispatched from siemensplc.com are sourced as genuine Bently Nevada (Baker Hughes) hardware. Each unit undergoes a structured incoming inspection before dispatch: visual examination of the probe body, PEEK tip encapsulant, and cable jacket for mechanical damage; connector pin inspection under 10× magnification for corrosion, deformation, or contamination; coaxial cable continuity measurement and shield integrity verification with a calibrated LCR meter; and part number label and date code cross-referencing against Baker Hughes authorised part databases to screen for counterfeit product. Factory calibration certificates are available upon request for new production units.

Our logistics operations are based in Xiamen, China, a Tier-1 international port with direct air freight connections to Singapore Changi, Dubai DXB, Frankfurt FRA, Los Angeles LAX, and Tokyo NRT. In-stock units are dispatched within 1–3 business days. International shipments are routed via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full end-to-end tracking and complete commercial documentation — including HS code 9031.80.90.90, certificate of origin, packing list, and customs invoice — prepared in compliance with destination country import requirements. For volume orders of five or more units, consolidated sea freight via Xiamen Port is available to Southeast Asia, the Middle East, and Europe with competitive transit times. All export procedures comply with applicable Chinese export control regulations.
