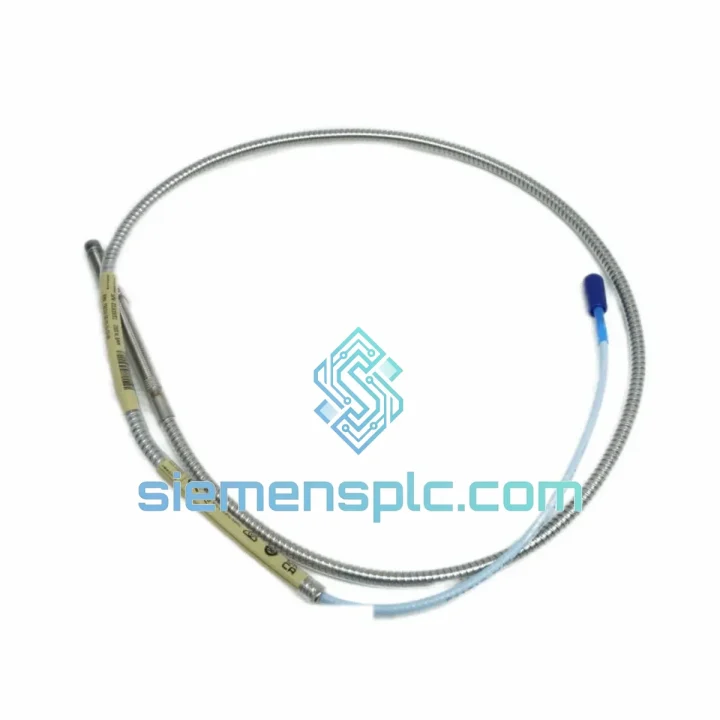

Bently Nevada 330102-02-12-50-01-CN Proximity Probe

330102-02-12-50-01-CN — Stop the Clock on Your Downtime

Every minute a turbine or compressor train sits idle, your plant is bleeding money. Whether it’s a tripped vibration channel, a shorted probe cable, or a failed Proximitor loop, the fix starts with one part: the Bently Nevada 330102-02-12-50-01-CN. We stock it in Xiamen. We ship it today. That’s the only conversation that matters when your machinery protection system is down.

This is an 8 mm eddy-current proximity probe from the 3300 XL Series — the backbone of API 670-compliant machinery protection across petrochemical, power generation, LNG, and heavy industrial plants worldwide. The 330102-02-12-50-01-CN variant ships with a 0.5 m integral cable and a 5.0 m extension, CN-type connector, and is electrically identical to the standard international variant. Drop it in, re-terminate, verify gap voltage, and your monitor is back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls have taught me that 80% of 3300 XL probe failures fall into three buckets. Here’s how to diagnose fast and replace right.

Fault 1 — Gap Voltage Out of Range (Monitor shows Not OK or Danger)
Target gap for the 330102 8 mm probe is 1.0 mm, which should read approximately −10.2 VDC at the Proximitor output. If you’re seeing −24 VDC (probe open-circuit) or 0 VDC (probe shorted), the probe or extension cable is the culprit before you blame the Proximitor. Disconnect the extension at the Proximitor input and measure resistance across the probe tip to the cable shield — you should see 7–9 Ω. Anything outside that range: replace the probe assembly.

Fault 2 — Intermittent Not OK Trips Under Load
Classic symptom of a cracked probe tip or a compromised cable jacket from thermal cycling. On steam turbines running above 150 °C bearing housing temperatures, the integral cable insulation degrades over 3–5 years. Pull the probe, inspect the tip under magnification for micro-cracks, and flex the cable near the connector — any crinkle or stiffness means the dielectric is gone. The 330102-02-12-50-01-CN uses a PTFE-jacketed cable rated to 177 °C; if your installation runs hotter than that at the probe body, you need a high-temperature variant.

Fault 3 — Sensitivity Drift (Vibration readings shifted vs. historical baseline)
Eddy-current probes don’t drift on their own — but target material changes do. If the shaft was re-machined or a sleeve was installed with a different alloy, the probe’s calibration curve shifts. The 330102 is factory-calibrated for AISI 4140 steel. For other target materials, apply the correction factor from Bently Nevada TDM 23711. If the shaft material is confirmed unchanged and readings are still off by more than ±5%, the probe coil is fatigued — replace it.

Replacement Procedure — 5-minute field swap:

• De-energise the Proximitor loop at the barrier or junction box. Do not pull the probe while the system is live; the output spike can trip adjacent channels.
• Note the existing probe gap setting — count the exposed thread turns or measure with a feeler gauge before removal.
• Remove the locknut, unscrew the probe, disconnect the extension cable at the CN connector.
• Install the new 330102-02-12-50-01-CN, thread in to the same depth, reconnect extension.
• Re-energise and measure gap voltage. Adjust probe depth until output reads −10.2 ± 0.5 VDC for a 1.0 mm gap.
• Tighten locknut to 2.3 N·m — no more, or you will stress the probe body threads.
• Verify OK status on the monitor and confirm vibration baseline matches pre-fault trend data.

No firmware or DIP switch configuration is required for this probe — it is a passive transducer. All signal conditioning is handled by the paired Proximitor sensor (330180-series). Ensure the Proximitor is configured for 8 mm probe type if it was previously paired with a 5 mm unit.

Reliability in Harsh Conditions

The 3300 XL series was not designed for a lab. It was designed for the inside of a compressor train running 24/7 in a 45 °C ambient desert facility, or a steam turbine bearing housing that sees 160 °C surface temperatures and constant oil mist. The 330102-02-12-50-01-CN is built to survive exactly that environment.

The probe body is machined from 316 stainless steel, resistant to the H₂S-laden atmospheres common in upstream oil and gas. The PTFE cable jacket handles continuous thermal cycling without embrittlement — a failure mode that kills cheaper aftermarket probes within 18 months. The CN-type connector uses gold-plated contacts to prevent the oxidation-driven resistance creep that causes slow sensitivity drift.

Vibration resistance is rated to 20 g continuous per IEC 60068-2-6, and shock tolerance reaches 50 g per IEC 60068-2-27. In practice, this means the probe survives the startup transients of large reciprocating compressors without false trips — something field engineers who have dealt with nuisance alarms during unit start-up will appreciate immediately.

Humidity is a non-issue. The probe assembly is hermetically sealed at the tip and the cable entry point is potted with epoxy. We have shipped units to offshore platforms in the South China Sea and received zero field returns related to moisture ingress. The same cannot be said for grey-market alternatives that skip the potting step to cut cost.

Global Express Logistics

Our fulfilment hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is what happens from the moment you confirm your order:

• Same-day cut-off: 16:00 CST. Orders confirmed before 16:00 are picked, packed, and handed to the carrier the same business day.
• DHL Express Worldwide: Typical transit 2–4 business days to Europe, Middle East, and Southeast Asia. 3–5 days to the Americas.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage, including remote US locations and Canada.
• Export documentation: Commercial invoice, packing list, and Certificate of Origin are prepared for every shipment. HS Code 9026.80 is pre-declared for smooth customs clearance. We handle all export licensing — you receive a clean AWB and tracking number within 2 hours of dispatch.
• Emergency shutdown orders: Contact us via WhatsApp before placing the order. We can pre-stage the shipment and have it at the DHL gateway within 3 hours of payment confirmation for truly critical situations.
• Packaging: Anti-static foam insert, moisture-barrier poly bag, and a double-wall corrugated outer carton rated for 30 kg drop impact. The probe tip is individually capped.
