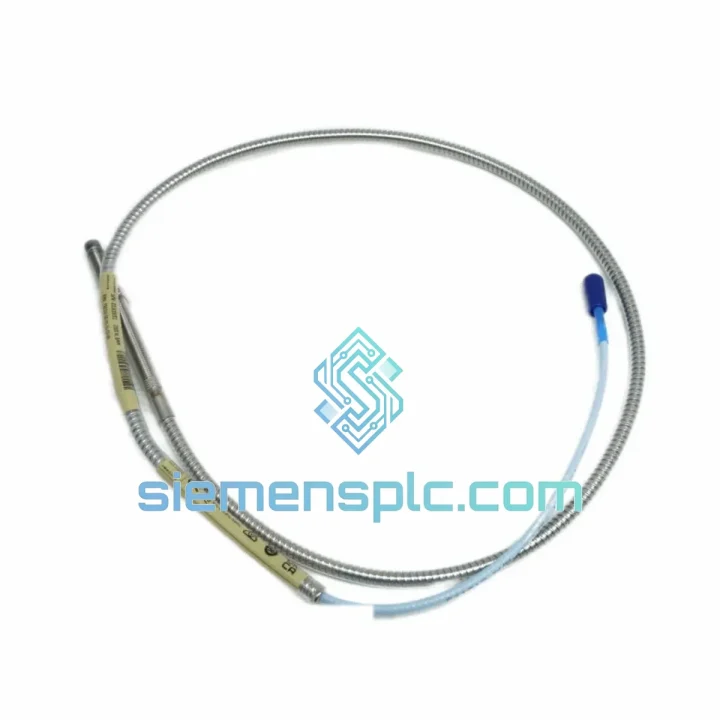

Bently Nevada 330102-12-60-10-02-05 Proximity Probe

330102-12-60-10-02-05 — Stop the Clock on Your Downtime. Ship Today.

Every minute a turbine, compressor, or critical pump runs without a functioning proximity probe is a minute you’re flying blind. Shaft displacement goes undetected. Bearing wear accelerates. The 3500 rack throws alarms you can’t clear. And your maintenance window — if you even have one — is burning. The Bently Nevada 330102-12-60-10-02-05 is the exact OEM-matched 8mm eddy current proximity probe for the 3300 XL measurement chain. We stock it in Xiamen. We ship it today. That’s the only thing that matters when your plant is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures that bring you to this page:

• 3500/40M or 3500/42M channel goes to NOT OK: First suspect the probe before the Proximitor. Swap the probe on a known-good channel. If the channel recovers, the 330102-12-60-10-02-05 is your culprit — tip damage, cable break at the strain relief, or connector corrosion.
• Gap voltage out of range (not –10 VDC ±0.5 V at nominal gap): Verify your air gap is 1.0 mm (39 mil) for the 8mm probe. If gap is correct and voltage is drifting, the probe’s internal coil has likely shifted — replace the probe, do not attempt to re-gap around a failed sensor.
• Intermittent vibration spikes with no process change: Check the integral cable for micro-fractures, especially at the probe body exit and at any conduit entry points. Eddy current probes are sensitive to cable movement — a cracked shield causes exactly this symptom.
• System reads high static vibration at startup, clears at speed: Shaft runout compensation (slow-roll vector) may need to be re-acquired after probe replacement. Do not assume the old compensation vector is valid for the new probe.

Step-by-step replacement procedure (field-verified):

1. Isolate and document: Record the current gap voltage, vibration baseline, and slow-roll vector from the 3500 rack before removing the old probe. You will need these for post-installation verification.
2. De-energize the Proximitor: The 3300 XL Proximitor operates on –24 VDC. Disconnect power at the I/O module before disconnecting the probe cable — do not hot-swap under live power if avoidable.
3. Remove the old probe: Use the correct spanner — the 8mm probe body uses a 3/4″ hex. Do not use pipe wrenches; you will damage the housing and contaminate the bearing housing bore.
4. Inspect the bore: Clean the probe bore with a lint-free cloth. Check for scoring or debris. A contaminated bore will give false gap readings from day one.
5. Install the 330102-12-60-10-02-05: Thread in by hand first, then torque to the value specified in your installation drawing (typically 20–25 Nm for standard installations). Set the air gap to 1.0 mm using a feeler gauge or the gap voltage method (target –10.0 VDC ±0.2 V).
6. Reconnect and verify: Power up the Proximitor. Confirm gap voltage is within spec. Check the 3500 rack channel status — it should return to OK within 30 seconds. Re-acquire the slow-roll vector if the machine can be brought to slow-roll speed safely.
7. Extension cable check: If you are reusing the existing extension cable, verify continuity and insulation resistance before reconnecting. A degraded extension cable will corrupt the new probe’s output immediately.

Configuration notes: The 330102-12-60-10-02-05 does not have DIP switches or firmware — it is a passive sensing element. All configuration (scale factor, gap, alarm setpoints) lives in the 3500 rack monitor module. After replacement, verify the scale factor in the 3500/40M or 3500/42M is set to 200 mV/mil (7.87 V/mm) for the 3300 XL 8mm probe. An incorrect scale factor will cause the system to misreport vibration amplitude — a safety-critical error.

Reliability in Harsh Conditions

The 3300 XL 8mm probe was not designed for a climate-controlled instrument room. It was designed for the bearing housing of a 15,000 RPM centrifugal compressor in a Gulf Coast refinery, a hydroelectric turbine pit with 95% relative humidity, and a steel mill where ambient temperatures exceed 60°C and the floor vibrates continuously at 20–200 Hz.

The 316 stainless steel housing resists chloride-induced stress corrosion cracking — a real failure mode in coastal and offshore installations. The integral cable jacket is rated for continuous immersion in lubricating oil, which is the actual environment inside most bearing housings. The coaxial connector is sealed against moisture ingress to prevent the galvanic corrosion that kills cheaper sensors within months.

Vibration immunity is not a marketing claim — the eddy current sensing principle has no moving parts, no contact wear, and no mechanical resonance to worry about. The probe body itself is immune to the vibration it is measuring. What fails in harsh environments is always the cable and connector, which is why the integral cable design of the 330102-12-60-10-02-05 eliminates one connection point compared to field-assembled alternatives.

For installations in ATEX or NEC Class I Division 1 hazardous areas, verify your Proximitor model carries the appropriate certification. The probe itself is intrinsically safe when used with a certified Proximitor — but the system certification is only valid when all three components (probe, extension, Proximitor) are from the same certified measurement chain.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. When you confirm an order before 14:00 CST, same-day dispatch is standard. Here is what the timeline looks like in practice:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): DHL Express — 1 to 2 business days door-to-door.
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): FedEx International Priority — 2 to 3 business days. We handle all export documentation including commercial invoice, packing list, and certificate of origin.
• Europe (Germany, Netherlands, UK, France, Italy): DHL Express — 3 to 4 business days. We declare accurate HS codes (typically 9031.80 for proximity sensors) to prevent customs delays.
• North America (USA, Canada, Mexico): FedEx International Priority — 3 to 5 business days. We provide EEI/AES filing documentation for US Customs on request.
• Australia and New Zealand: DHL Express — 3 to 4 business days.

Every shipment includes full tracking from pickup to delivery. For orders where downtime cost justifies it, we can arrange Saturday delivery and hold-at-location options through DHL and FedEx. If your site requires a specific carrier due to import licensing or duty drawback programs, tell us at the time of inquiry — we will accommodate it.

Export documentation is prepared in-house. We do not outsource this to a freight forwarder who has never seen the product. Our team knows the HS classification, the ECCN status, and the end-use declaration requirements for industrial automation components shipped to regulated markets. You will not face a customs hold because of a documentation error on our end.
