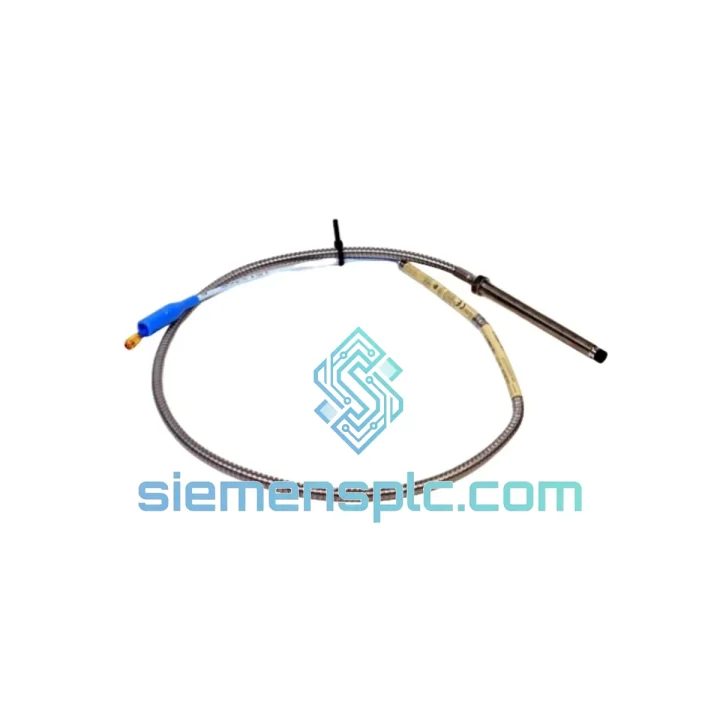

Bently Nevada 330102-20-96-10-02-05 Proximity Probe

330102-20-96-10-02-05 — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine or compressor sits idle costs real money — sometimes tens of thousands per shift. The Bently Nevada 330102-20-96-10-02-05 eddy current proximity probe is one of the most field-replaced components in the 3300 XL transducer system, and we keep it on the shelf precisely because shutdowns don’t wait for lead times. We ship from Xiamen within 24 hours of order confirmation. DHL and FedEx express lanes are pre-booked. Your machine gets back online — that’s the only metric that matters.

This is not a grey-market listing. Every unit we dispatch is 100% original Bently Nevada, sourced through traceable industrial supply channels, inspected before boxing, and shipped with a certificate of conformance. If you’re reading this during a plant emergency, scroll to the CTA below and contact us now.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here’s what actually goes wrong with the 330102 series — and what to check before you assume the probe is dead:

Fault Code –24 VDC Rail Drop / OK Relay Trip: Nine times out of ten this is a cable fault, not the probe itself. Before condemning the 330102-20-96-10-02-05, disconnect the extension cable at the proximitor and measure the probe’s static output voltage directly. A healthy probe in free air should read approximately –12 VDC. If you’re seeing –24 VDC (rail), the probe tip is open-circuit — check for cable crush at the conduit entry point first.

Sensitivity Drift / High Vibration Alarm with No Process Change: This is the classic symptom of a probe tip that has been contaminated with conductive buildup — oil carbon deposits on gas turbines, magnetite sludge on boiler feed pumps. Clean the tip with isopropyl alcohol and re-gap. If sensitivity is still off by more than ±5%, the probe coil is compromised and replacement is the only fix.

Replacement Procedure — Key Steps:

• Gap setting: The 330102-20-96-10-02-05 requires a nominal gap of 1.0 mm (40 mil) to AISI 4140 target. Use a non-magnetic feeler gauge. Do not gap to a stainless shaft — sensitivity will be wrong by up to 30%.
• Thread torque: 10-32 UNF probe body — torque to 0.9 N·m (8 in-lb) maximum. Over-torquing cracks the ceramic tip insert. Use thread-locking compound (Loctite 243 or equivalent) on the locknut only, never on the probe body threads.
• Cable routing: Maintain minimum bend radius of 50 mm on the integral cable. Tight bends at the conduit entry are the #1 cause of premature cable failure in high-vibration environments.
• Proximitor matching: The 330102 probe must be used with the Bently Nevada 330180 proximitor. Do not mix with 3300/05 or 3300/16 drivers — the system will appear to work but sensitivity calibration will be incorrect, leading to false alarms or missed trips.
• System verification: After installation, perform a static calibration check using a micrometer stage. Verify output at 0.5 mm, 1.0 mm, and 1.5 mm gaps. All three points must fall within ±0.1 V of the published sensitivity curve before returning the machine to service.

Common Mistake: Engineers sometimes replace the probe but leave the original extension cable in place. If the cable has been in service for more than 5 years in a high-temperature zone, replace it simultaneously. A degraded cable will cause the new probe to fail its calibration check and you’ll be back on-site within weeks.

Reliability in Harsh Conditions

The 330102-20-96-10-02-05 is built for environments that destroy lesser sensors. The probe body is machined from 316 stainless steel with a hermetically sealed ceramic tip — no ingress path for oil mist, process gas, or condensate. The integral cable uses a PTFE-insulated, stainless-steel-armored construction that resists both mechanical abrasion and chemical attack from hydrocarbon atmospheres.

Vibration immunity is not a marketing claim here — the 3300 XL probe is designed to operate continuously in environments with up to 20 g broadband vibration on the probe body itself, which covers virtually every turbomachinery installation. The MIL-C-5015 connector is rated for 500 mating cycles and maintains IP67 sealing when properly torqued.

Temperature performance is equally uncompromising. At 177 °C continuous, this probe outlasts most thermocouple-based sensors in the same installation zone. We’ve seen units pulled from steam turbine bearing housings after 8 years of continuous service that still calibrate within factory spec — that’s the build quality you’re paying for.

ATEX and IECEx certification means the 330102-20-96-10-02-05 is approved for Zone 1 and Zone 2 hazardous area installations — gas turbines, offshore platforms, petrochemical reactors. No special permits or derogations required for standard installations within the certified parameters.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items ordered before 15:00 CST. Here’s exactly how your shipment moves:

• Order confirmed → Warehouse pick: Within 2 hours of payment or PO acceptance. Unit is inspected, photographed, and packed in anti-static foam with moisture barrier bag.
• Export documentation: Commercial invoice, packing list, certificate of conformance, and HS code 9031.80 declaration prepared simultaneously. No customs delays caused by missing paperwork.
• Carrier handoff: DHL Express or FedEx International Priority — pre-booked daily collection from our facility. No waiting for weekly consolidation runs.
• Transit times: Southeast Asia 1–2 days. Middle East and Europe 3–4 days. Americas 4–5 days. These are real-world averages, not best-case estimates.
• Tracking: AWB number sent to your email within 1 hour of carrier pickup. Direct DHL/FedEx tracking link provided — no third-party portals.
• Emergency escalation: For plant shutdown situations, contact us via WhatsApp before placing the order. We can pre-stage the shipment and have it moving within 4 hours of your first message.

We’ve shipped to refineries in Saudi Arabia, power plants in Vietnam, paper mills in Finland, and offshore platforms in the North Sea. The logistics process is the same every time — fast, documented, and traceable.
