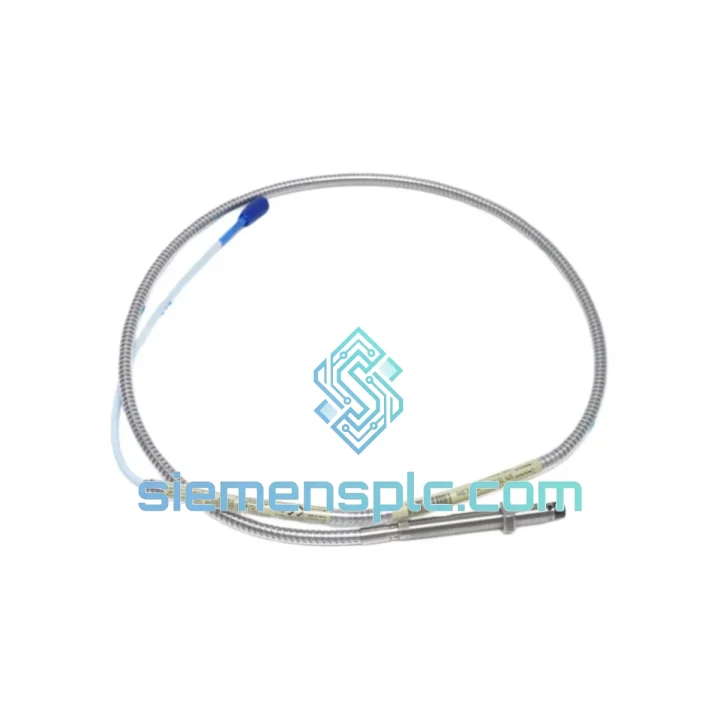

Bently Nevada 330102-40-70-10-02-CN Proximity Probe – 3300 XL Series

Bently Nevada 330102-40-70-10-02-CN – 8mm Eddy Current Proximity Probe for Continuous Shaft Monitoring

The Bently Nevada 330102-40-70-10-02-CN is an 8mm eddy current proximity probe belonging to the 3300 XL Proximity Transducer System. It is engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and eccentricity in critical rotating machinery. The CN suffix designates the China-market configuration, which is electrically and mechanically identical to the standard international variant. This probe operates as the sensing element within a three-component transducer chain: probe body, extension cable (330130/330180 series), and Proximitor® sensor driver — all of which must share a common calibration standard (AISI 4140 steel) to maintain measurement traceability.

In a closed-loop machinery protection architecture, the 330102-40-70-10-02-CN feeds a continuous analog voltage signal to the Bently Nevada 3500 Series Machinery Protection System. The monitor compares this signal against user-configured alert and danger setpoints in real time, enabling deterministic trip logic with sub-millisecond response latency. This makes the probe a foundational element in API 670-compliant protection schemes for steam turbines, gas turbines, centrifugal compressors, and large pumps.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330102-40-70-10-02-CN operates on the principle of high-frequency eddy current induction. The probe tip houses a coil driven by an oscillator circuit within the Proximitor® sensor at a carrier frequency of approximately 1.0 MHz. When the conductive target (shaft) enters the probe’s electromagnetic field, eddy currents are induced on the shaft surface, loading the oscillator and reducing its amplitude. The Proximitor® demodulates this amplitude change into a DC-proportional voltage output, yielding a linear displacement signal across the 0.25–2.54 mm measurement range.

EMC Design: The coaxial cable assembly between probe and Proximitor® is shielded with a continuous braid terminated at a single ground point at the driver end. This single-point grounding topology eliminates ground loop currents that would otherwise introduce 50/60 Hz noise into the displacement signal — a critical requirement in environments with large motor drives and transformer banks. The probe body itself is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip, providing both chemical resistance and a non-conductive barrier that prevents parasitic eddy current paths through the probe housing.

Thermal Stability: The sensitivity coefficient of 7.87 V/mm is maintained within ±0.5% across the full −35°C to +177°C operating range, achieved through temperature-compensated oscillator design in the Proximitor® driver. This thermal stability is essential for axial position monitoring applications where a 0.1 mm measurement error at operating temperature could mask a thrust bearing wear condition.

Mechanical Integration: The 8mm probe diameter and M10 × 1.0 thread allow direct installation into standard API 670 probe holders without adapter hardware. The 1 m integral cable with armored jacket provides mechanical protection in the bearing housing environment, while the 5 m extension cable routes the signal to the junction box outside the hazardous zone.

System Integration Benefits

• Direct 3500 Series compatibility: The probe’s −2 to −18 VDC output maps directly to the input range of Bently Nevada 3500/40M and 3500/42M monitor cards, requiring no signal conditioning adapters or scaling adjustments.
• API 670 plug-and-play compliance: Factory calibration to AISI 4140 steel means the probe meets API 670 Table 1 sensitivity requirements out of the box, eliminating field calibration labor during commissioning.
• Deterministic protection response: When integrated with the 3500 Series, the system achieves a total response time of less than 20 ms from shaft displacement event to relay output — sufficient for turbine overspeed and compressor surge protection logic.
• Dual-use measurement: A single probe installation simultaneously provides radial vibration (AC component) and average shaft centerline position (DC component) to the monitor, reducing the total probe count per bearing journal.
• Diagnostic transparency: The continuous analog output allows the 3500 monitor to perform gap voltage trending, enabling predictive identification of probe fouling, target surface degradation, or cable insulation breakdown before a measurement fault occurs.
• Hazardous area adaptability: The -02- approval code (CE standard) is suitable for non-classified areas; the system architecture supports field upgrade to ATEX/IECEx variants (-05- suffix) without changing the probe holder or wiring infrastructure.
• Multi-channel scalability: The 3300 XL system supports up to 16 probe channels per Proximitor® rack, allowing a single wiring infrastructure to serve X-Y vibration pairs, keyphasor, and thrust position channels across a complete turbomachinery train.
• Long-term spare parts availability: As a current-production Bently Nevada part number, the 330102-40-70-10-02-CN is supported under Baker Hughes’ global spare parts program, with documented interchangeability across 3300 XL system generations dating to 1995.

Quality Assurance & Global Logistics

Every unit of the 330102-40-70-10-02-CN supplied through siemensplc.com is sourced from authorized Bently Nevada (Baker Hughes) distribution channels. Each probe is shipped in its original OEM packaging with factory calibration data intact. Pre-shipment inspection includes visual examination of the probe tip, connector integrity check, and cable continuity verification. Calibration certificates traceable to ISO/IEC 17025-accredited standards are available upon request at time of order.

Our logistics hub is located in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port — two of China’s primary export gateways for industrial components. In-stock units are dispatched within 1–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. For project orders requiring consolidated shipment, sea freight via Xiamen Port is available with full export documentation including commercial invoice, packing list, and certificate of origin.

All shipments are packed with anti-static foam inserts and moisture-barrier bags to protect the probe’s coil assembly and cable terminations during transit. Export compliance documentation (HS Code 9031.80) is prepared for each shipment to facilitate customs clearance in destination countries.
