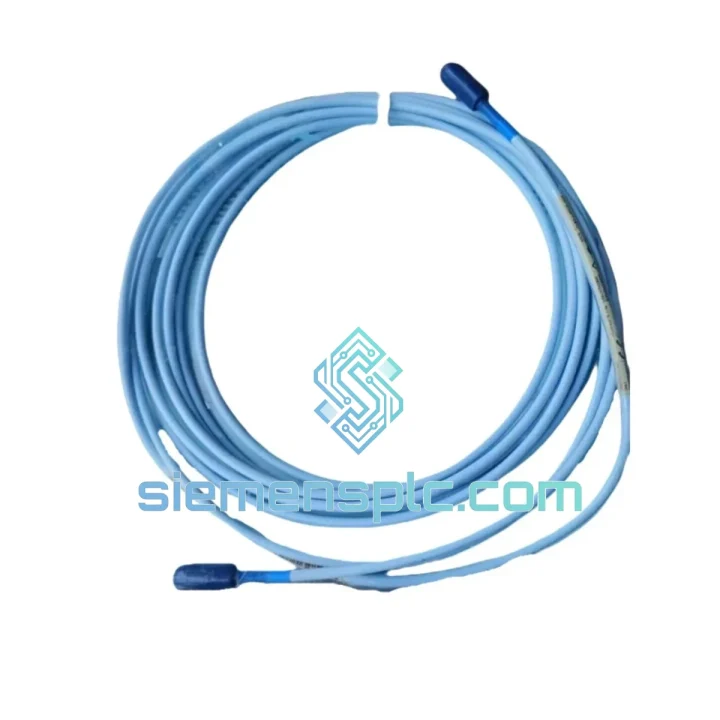

Bently Nevada 330102-60-90-10-02-CN Proximity Transducer – 3300 XL

Bently Nevada 330102-60-90-10-02-CN: 8 mm Eddy-Current Proximity Transducer in the 3300 XL Machinery Protection Architecture

The 330102-60-90-10-02-CN is a non-contact, eddy-current displacement transducer manufactured by Bently Nevada (a Baker Hughes company) as part of the 3300 XL proximity transducer system. It occupies the probe position in a three-component measurement chain — probe, extension cable, and driver — and delivers a DC voltage output linearly proportional to the air gap between the probe tip and a conductive target surface. The -CN suffix designates a metric CN-type connector, making this variant the standard selection for Asian OEM turbomachinery installations and retrofit projects where metric thread interfaces are specified.

In a rotating-machinery protection loop, the 330102-60-90-10-02-CN serves as the primary sensing element for radial shaft vibration, axial thrust position, differential expansion, and eccentricity measurements. Its output feeds a matched 330180-series Proximitor driver, which conditions the raw oscillator signal into a calibrated –2 VDC to –22 VDC range. That conditioned signal is then routed to Bently Nevada 3500-series monitor cards (3500/40M, 3500/42M) or legacy 3300 monitors for alarm, trip, and long-term trending within a DCS or safety-instrumented system (SIS). The entire signal chain is API 670-compliant, satisfying the machinery protection standard for critical rotating equipment in oil and gas, power generation, and petrochemical facilities.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Eddy-Current Oscillator Circuit and Gap-to-Voltage Linearity
The probe tip houses a precision-wound coil driven by a high-frequency oscillator (typically 1.0 MHz carrier) embedded in the matched Proximitor driver. When the probe tip approaches a conductive target — typically a ground-finished steel or alloy shaft — eddy currents are induced on the target surface. These currents load the oscillator circuit, reducing its amplitude in a manner that is monotonically and near-linearly related to the gap distance. The 330180 driver demodulates this amplitude variation and outputs a calibrated DC voltage at 7.87 V/mm. The scale factor is trimmed at the factory for the specific probe-cable-driver combination, which is why the three components must be used as a matched set; substituting an unmatched extension cable alters the total system impedance and shifts the scale factor outside the ±1% tolerance band.

EMC Design and Shielded Coaxial Architecture
The integral cable and extension cable use a double-shielded coaxial construction: an inner PTFE-insulated signal conductor surrounded by a braided copper shield, then a second outer shield bonded to the connector shell. This architecture provides greater than 60 dB of common-mode rejection against variable-frequency drive (VFD) switching noise, which typically occupies the 2–20 kHz band. The shield is grounded at the driver end only (single-point grounding), preventing ground-loop currents that would appear as low-frequency noise on the output signal. In installations where VFDs are co-located with the monitoring system, this single-point shield topology is the primary defense against spurious vibration readings.

Thermal Stability and Probe Tip Compensation
The 316L stainless steel housing has a coefficient of thermal expansion (CTE) of approximately 16 µm/m·°C. The coil winding uses a temperature-compensated formulation that maintains scale factor drift below 0.05% per °C across the full –35 °C to +177 °C probe operating range. This is critical in hot-section turbine installations where bearing housing temperatures can exceed 150 °C during steady-state operation. The driver, rated to +66 °C, is typically mounted in a cooler junction box remote from the bearing pedestal, connected via the 5 m extension cable.

Mechanical Mounting and Vibration Immunity
The M10 × 1 probe thread engages a standard 3300 XL mounting bracket. A locknut secures the probe at the calibrated gap (typically 1.0–1.27 mm for mid-range operation). The probe body is rated to withstand 50 g shock and 20 g continuous vibration per IEC 60068-2-6, ensuring the sensing element itself does not contribute mechanical noise to the measurement chain in high-vibration environments such as reciprocating compressor frames.

System Integration Benefits

• Drop-in API 670 compliance: The 330102-60-90-10-02-CN satisfies API 670 5th Edition transducer requirements without additional field calibration, enabling direct integration into new or existing machinery protection systems without re-engineering the monitor configuration.
• Deterministic DC output for real-time control: The –2 VDC to –22 VDC output is a true DC signal with a flat frequency response from 0 Hz to 10 kHz, allowing the 3500-series monitor to resolve both slow-roll eccentricity (sub-1 Hz) and high-frequency blade-pass events within a single channel without range switching.
• Matched-set traceability: Each probe, extension cable, and driver is serialized and calibrated as a matched set. The scale factor certificate travels with the set, providing documented traceability for ISO 17025-aligned maintenance programs and insurance audits.
• Zero-wear sensing element: Non-contact eddy-current technology eliminates mechanical contact with the rotating shaft. There is no wear mechanism on the sensing element; mean time between replacement (MTBR) is determined by cable fatigue and connector corrosion, not probe tip degradation.
• Hazardous-area certification (ATEX / FM): The probe and driver carry ATEX Zone 1/2 and FM Class I, Division 1/2 certifications, permitting installation in hydrogen-cooled generators, gas compressor buildings, and offshore platform machinery spaces without additional intrinsic safety barriers in most configurations.
• Seamless 3500-series monitor integration: The output signal is directly compatible with 3500/40M (radial vibration) and 3500/42M (thrust/differential expansion) monitor cards. No signal conditioning modules or scaling resistors are required; the monitor card reads the driver output natively at the 200 mV/mil scale factor.
• Diagnostic transparency via gap voltage monitoring: The DC bias voltage (gap voltage) is continuously available at the monitor card’s OK relay circuit. A gap voltage outside the –10 VDC ± 2 VDC window triggers a NOT OK condition, providing automatic detection of probe loss, cable break, or target loss without operator intervention.
• CN connector compatibility for Asian OEM retrofits: The -CN metric connector is the factory-specified interface on turbomachinery manufactured by Chinese, Japanese, and Korean OEMs. Using the correct connector variant eliminates field-fabricated adapter cables, which are a common source of impedance mismatch and signal degradation in retrofit projects.

Quality Assurance & Global Logistics

Every 330102-60-90-10-02-CN unit offered through siemensplc.com is sourced from verified distribution channels and OEM-surplus stock with documented chain of custody. Incoming inspection covers physical integrity of the probe housing and tip, connector shell and pin condition, cable jacket continuity and shield resistance, and coil impedance verification against the factory specification band. Units that fail any inspection criterion are quarantined and removed from inventory — they are not relisted or discounted for sale.

Original Bently Nevada labeling, part number markings, and date codes are preserved intact. Factory calibration certificates and ATEX/FM documentation are available upon request for critical-service applications. A 12-month warranty from the date of shipment covers manufacturing defects and verifiable specification non-conformance.

Logistics operations are based in Xiamen, China, a major international port city with direct DHL Express, FedEx International Priority, and UPS Worldwide Express coverage. In-stock units are dispatched within 1–2 business days of order confirmation. Transit times to most destinations in Southeast Asia, the Middle East, and Europe are 3–5 business days via express courier. For time-critical plant shutdowns or unplanned outages, same-day dispatch is available for orders confirmed before 14:00 CST. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination-country customs requirements to minimize clearance delays.
