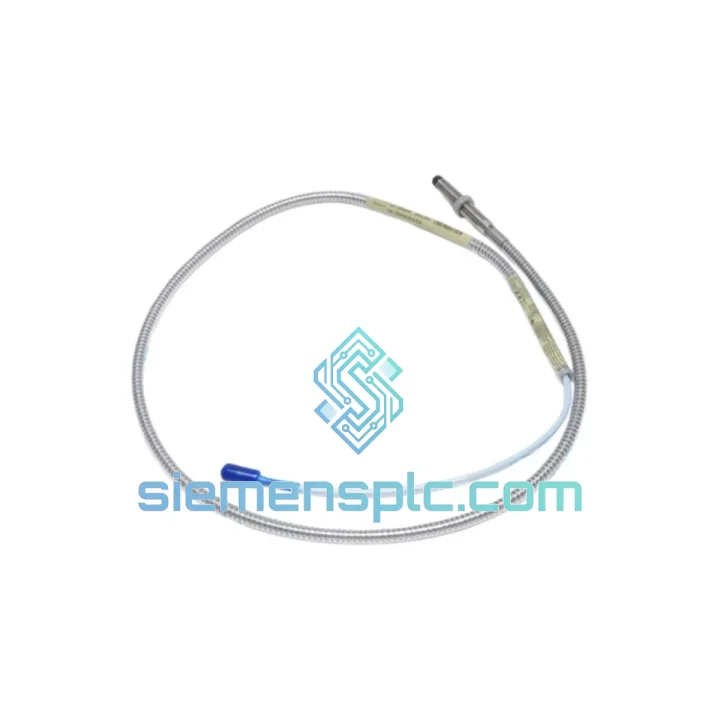

Bently Nevada 330102-60-96-10-02-CN Proximity Probe

330102-60-96-10-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour a turbine or compressor sits idle costs real money. When your Bently Nevada 3300 XL proximity transducer fails, you don’t have time for a 6-week OEM lead time. We stock the 330102-60-96-10-02-CN in Xiamen and dispatch same-day via DHL Express or FedEx International Priority. One call, one part, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After years pulling failed probes off turbine pedestals in 40 °C machine rooms, here’s what actually matters when you’re doing a hot swap on the 330102-60-96-10-02-CN:

Common Failure Signatures

• OK LED off, –24 V present: Probe tip shorted — usually from a shaft rub event. Replace probe and inspect shaft surface for scoring before restart.
• 3500 monitor showing Not OK with gap voltage outside –10 V to –18 V window: Either the probe gap is wrong or the extension cable has a broken shield. Check gap first (target: –12 V ± 1 V at nominal 1.0 mm gap), then do a cable continuity check.
• High 1× vibration spike after replacement: Almost always a gap setting error. Re-gap to the value specified on the original installation drawing — do not assume 1.0 mm is correct for every machine.
• Intermittent signal dropout: Connector corrosion at the probe-to-extension cable junction. Clean with contact cleaner, apply dielectric grease, and torque to spec (finger-tight + 1/4 turn).
• Scale factor drift greater than 2%: Probe has exceeded thermal fatigue life. Replace the full transducer system — probe, extension cable, and Proximitor driver — as a matched set.

Replacement Procedure Checklist

• Confirm machine is at rest and bearing housing is cool (below 50 °C) before probe removal.
• Record existing gap voltage from the monitor before disconnecting — this is your re-gap target reference.
• Thread new probe to the same depth; use a non-contact gap meter or the monitor’s DC gap output to set gap voltage to within ±0.5 V of original reading.
• Verify extension cable part number matches the new probe (8 m extension for this 5 m probe = 13 m total system).
• Do NOT mix 3300 XL probes with 3300 5 mm Proximitor drivers — the scale factors are incompatible and will produce false vibration readings.
• After reconnection, confirm OK LED illuminates and gap voltage is stable before releasing machine for restart.
• Log the replacement in your CMMS with the new probe serial number for traceability.

Note on -CN vs -00 Suffix: The 330102-60-96-10-02-CN is electrically and mechanically identical to the -00 variant. The -CN suffix denotes China RoHS compliance only. No recalibration or configuration change is required when substituting one for the other.

Reliability in Harsh Conditions

The 3300 XL 8 mm transducer system was built for environments that destroy lesser sensors. The 330102-60-96-10-02-CN carries a stainless-steel armored integral cable that withstands the mechanical abuse of high-vibration bearing housings — the kind of environment where standard cables fail within months. The probe body is rated to 121 °C continuous, covering hot-section steam turbine pedestals where ambient temperatures routinely exceed 80 °C.

EMI immunity is not an afterthought. The shielded coaxial construction rejects interference from VFDs, large motor starters, and high-voltage switchgear — all common in the same cable trays as vibration wiring in petrochemical and power plants. In field service across refinery and LNG compressor trains, scale factor stability remains within 1% over a 5-year service interval, which means fewer false alarms and fewer unnecessary shutdowns.

The ATEX and IECEx certifications cover Zone 1 and Zone 2 classified areas, making this probe suitable for installation in hazardous areas without additional barriers in most configurations. Vibration endurance testing per IEC 60068-2-6 confirms the armored cable assembly maintains signal integrity under continuous sinusoidal vibration at 10–2000 Hz — the exact frequency range generated by rotating machinery imbalance and blade-pass events. Humidity cycling per IEC 60068-2-78 (85% RH, 40 °C, 56 days) shows no measurable degradation in insulation resistance or scale factor, confirming suitability for tropical coastal and offshore environments.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock parts. Here is how your order moves from shelf to machine room:

• Order confirmed before 15:00 CST: Packed, labeled, and handed to DHL or FedEx courier the same afternoon.
• DHL Express Worldwide: Southeast Asia 1–2 days; Middle East, Europe, North America 2–4 days; South America and Africa 3–5 days.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger coverage or preferred customs clearance agreements.
• Export documentation: Commercial invoice, packing list, and Certificate of Origin prepared for every international shipment. HS code 9031.80 applied for customs classification.
• Tracking: AWB number sent via email within 2 hours of dispatch. Real-time tracking link provided.
• Urgent plant shutdown orders: Contact us directly on WhatsApp for priority handling and after-hours dispatch coordination.

We have shipped to refineries in Saudi Arabia, power plants in Vietnam, compressor stations in Kazakhstan, and offshore platforms in the North Sea. Customs clearance experience across these jurisdictions means fewer delays at the border when your machine is waiting.
