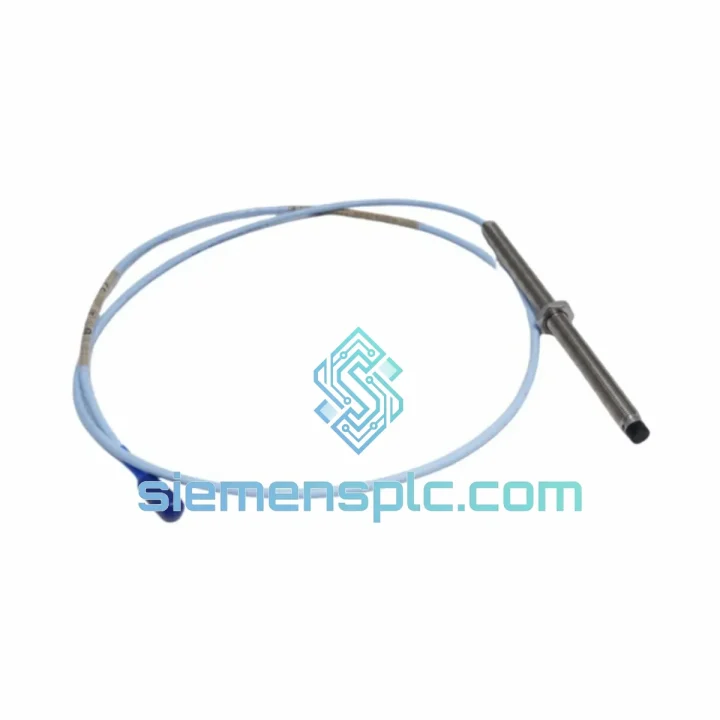

Bently Nevada 330103-00-02-05-02-05 Proximity Transducer

330103-00-02-05-02-05 — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine, compressor, or BFW pump sits idle because of a failed proximity transducer costs real money — in lost production, in penalty clauses, in maintenance crew overtime. The Bently Nevada 330103-00-02-05-02-05 is a 3300 XL Series 8 mm eddy-current proximity transducer, and we have it on the shelf in Xiamen right now. No lead-time negotiation. No factory back-order queue. You call, we ship — DHL or FedEx, door to door, anywhere on the planet.

This is not a grey-market substitute or a rebranded clone. It is a genuine Bently Nevada 3300 XL transducer system — probe, extension cable, and driver — pulled from verified, traceable stock. If your monitor rack is throwing a Not OK or your DCS is alarming on a gap voltage out of range, this unit drops straight in. No recalibration of the monitor card. No firmware update. No surprises at 2 a.m.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, these are the failure modes and swap-out gotchas that actually matter for the 330103-00-02-05-02-05:

1. Confirm the fault is the transducer, not the driver or cable. Before you pull the probe, measure the gap voltage at the driver output with a calibrated DMM. A healthy 3300 XL system at nominal 1.0 mm gap reads approximately –10.5 VDC. If you see –24 VDC (open circuit) or 0 VDC (short), disconnect the extension cable at the driver and re-measure. If the driver output normalizes, the fault is in the cable or probe — not the driver card. This saves you from swapping a good driver.

2. Gap voltage out-of-range alarm (Not OK LED on monitor). The 3300 XL monitor trips Not OK when gap voltage falls outside –2 to –18 VDC. Common causes: probe tip physically contacted the shaft (check for witness marks on the tip), probe mounting bracket has shifted (re-check lock nut torque — 14 N·m on standard M10 bracket), or the shaft has been re-machined and the target material is no longer AISI 4140/4340. For non-standard shaft materials, apply the Bently Nevada material correction factor before re-gapping.

3. Re-gapping procedure after installation. Set the probe gap to the midpoint of the linear range: 1.27 mm (50 mil). At –24 VDC supply, this corresponds to approximately –10.5 VDC output. Use a non-magnetic feeler gauge. Do not use a steel feeler gauge — it will corrupt the gap reading. Tighten the lock nut and verify the output voltage has not shifted more than ±0.2 VDC. If it has, the probe tip has moved during tightening — re-gap.

4. Extension cable substitution. The 330103-00-02-05-02-05 ships as a matched system (probe + 5 m extension). If you are replacing only the probe and reusing an existing extension cable, verify the cable part number is a 3300 XL-compatible type (e.g., 330130-045-00-00 for 5 m). Mixing 3300 and 3300 XL cables introduces sensitivity error of up to 8% — enough to cause nuisance trips on tightly set alarm setpoints.

5. Dip switch / jumper settings on the monitor card. The 3300 XL monitor cards (3300/16, 3300/20, 3300/25) have internal jumpers for transducer type selection. Confirm the jumper is set to 3300 XL 8 mm — not 5 mm or 3300 standard. An incorrect jumper setting shifts the scale factor and will cause the monitor to report incorrect vibration amplitude, potentially masking a real machinery fault.

6. Firmware compatibility. If your 3300 XL monitor has been upgraded to System 1 Evolution firmware, verify the transducer configuration in the software matches the physical probe sensitivity (7.87 V/mm). Mismatched software configuration is the single most common cause of post-replacement alarm floods that engineers blame on the new transducer.

Reliability in Harsh Conditions

The 330103-00-02-05-02-05 is not a lab instrument. It is built to survive the environments where rotating machinery actually lives — and where it fails at the worst possible time.

The probe body carries an IP67 rating, meaning it withstands full immersion in water to 1 metre for 30 minutes. In practice, this matters when steam leaks, cooling water spray, or wash-down operations are part of normal plant life. The PTFE-jacketed cable resists hydrocarbon fluids, lubricating oils, and the cleaning solvents routinely used in turbine enclosures.

Vibration endurance is validated to 20 g peak sinusoidal (10–2,000 Hz) per IEC 60068-2-6, and 50 g shock per IEC 60068-2-27. On a gas turbine skid where the probe bracket itself is subject to structural vibration from the machine, this matters — a transducer that works loose or drifts in calibration under vibration is worse than no transducer at all, because it gives you false confidence.

The probe tip is rated to +177 °C continuous. This covers hot-section installations on steam turbines and gas turbine exhaust-end bearing housings without the need for thermal standoffs or cooling air purges that add complexity and failure modes. The hermetically sealed tip construction prevents moisture ingress that would otherwise cause sensitivity drift over multi-year continuous operation between turnaround intervals.

EMI immunity is achieved through a differential driver architecture that rejects common-mode noise. In plants with large VFDs, high-current bus bars, and switchgear in close proximity to instrumentation cable trays, this is not a theoretical benefit — it is the difference between a clean vibration spectrum and a noise floor that masks real sub-synchronous instability.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible transit times to Southeast Asia, the Middle East, Europe, and the Americas.

Standard dispatch process: Orders confirmed before 14:00 CST are packed and handed to the carrier the same business day. DHL Express and FedEx International Priority are our primary carriers for urgent shipments. Both services offer door-to-door tracking from our warehouse to your plant gate.

Typical transit times from Xiamen: Southeast Asia 1–2 business days; Middle East 2–3 business days; Europe 3–4 business days; North America 3–5 business days. These are carrier-quoted transit times under normal customs clearance conditions.

We prepare a complete export documentation package with every shipment: commercial invoice, packing list, and certificate of origin. For customers in countries with import duty exemptions on industrial instrumentation, we can provide HS code documentation (HS 9026.80) to support customs clearance. For projects requiring an ATA Carnet or specific country-of-origin certification, contact us at the time of order.

For plant shutdowns and turnaround projects where delivery timing is critical, we offer a dedicated logistics coordination service. Tell us your required-on-site date and we will work backward to confirm the latest possible order cutoff, select the optimal carrier and service level, and provide proactive tracking updates until the package is signed for at your facility.
