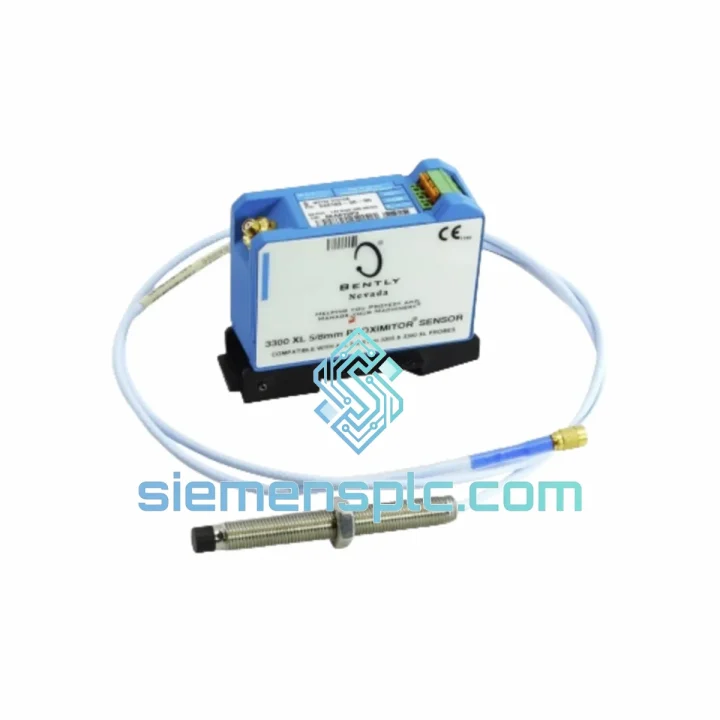

Bently Nevada 330103-00-03-05-01-05 Extension Cable

330103-00-03-05-01-05 Extension Cable: Every Hour of Downtime Costs More Than This Part

Your turbine is offline. The 3500 rack is throwing a Not OK on the radial vibration channel. You’ve isolated the fault to the measurement loop — gap voltage is reading –24 VDC flat, no dynamic signal. The Proximitor sensor checks out. The probe tip is intact. The culprit: a failed Bently Nevada 330103-00-03-05-01-05 extension cable. This is the scenario that costs plants $50,000–$500,000 per day in lost production. We stock this cable. It ships today from Xiamen.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Signature — How to Confirm the Extension Cable Is the Problem:

Before you pull the cable, verify the fault is not upstream. On the 3500 rack monitor, check the channel status LED and the gap voltage readout. A healthy 3300 XL 8mm loop should read between –10 VDC and –18 VDC at nominal gap. If you’re seeing –24 VDC (open circuit) or 0 VDC (short), and the Proximitor sensor output is confirmed good with a substitute cable on the bench, the extension cable is your fault point.

Common Failure Modes for 330103-Series Extension Cables:

• Connector corrosion at the probe-end BNC: Common in wet or offshore environments. Causes intermittent signal dropout and erratic gap voltage. Inspect the center pin and dielectric for oxidation or moisture ingress before condemning the full cable.
• Cable jacket abrasion / mechanical damage: In high-vibration installations, the cable can chafe against structural steel. A pinhole breach in the shield causes noise injection into the dynamic signal — you’ll see elevated 1X or broadband noise on the spectrum, not a clean Not OK alarm.
• Connector pull-out at the Proximitor end: Occurs when the cable is routed under tension. The center conductor separates from the connector crimp internally — the cable looks intact externally but reads open circuit.
• Impedance mismatch from non-OEM substitution: If a previous technician installed a generic coaxial cable, the system calibration is invalid. The 3300 XL system is calibrated as a three-component set (probe + extension cable + Proximitor). Substituting any non-OEM cable shifts the gap voltage curve and invalidates the calibration — replace with the correct 330103-00-03-05-01-05 and recalibrate.

Step-by-Step Replacement Procedure:

1. Isolate the channel: Bypass or inhibit the affected channel on the 3500 rack to prevent a spurious trip during cable swap. Document the current gap voltage and alarm setpoints before disconnecting anything.
2. Disconnect at the Proximitor sensor first: Loosen the connector at the Proximitor end. Never pull by the cable body — grip the connector body only. Inspect the Proximitor input port for moisture or debris before connecting the new cable.
3. Disconnect at the probe cable: The probe cable connects to the extension cable via a coaxial connector, typically located at the machine casing or a junction box. Unscrew carefully — these connectors can seize in high-temperature environments. Apply penetrating lubricant if necessary; do not force.
4. Route the new 330103-00-03-05-01-05: Follow the original cable routing path. Maintain minimum bend radius (typically 25mm for this cable diameter). Secure with cable ties at intervals no greater than 300mm. Avoid routing adjacent to high-voltage power cables — maintain at least 150mm separation to prevent EMI pickup.
5. Verify gap voltage after connection: With the machine at rest and the probe at nominal gap, confirm gap voltage is within the –10 to –18 VDC window. If the reading is outside this range, check probe gap distance before assuming a cable fault.
6. No firmware or DIP switch changes required: The 330103-00-03-05-01-05 is a passive cable — there are no addressable components, no firmware, and no configuration switches. The only configuration action required after replacement is gap voltage verification and, if the previous cable was non-OEM, a full system recalibration per Bently Nevada procedure.
7. Re-enable the channel: Remove the bypass/inhibit, confirm the channel returns to OK status, and log the replacement in your maintenance management system with the new cable serial number.

Recalibration Note: If this cable is replacing a non-OEM substitute or a cable of unknown provenance, perform a full static calibration of the measurement loop per Bently Nevada Application Note 44 (or current equivalent). Do not assume the previous calibration is valid.

Reliability in Harsh Conditions

The 3300 XL 8mm extension cable is not a commodity coaxial cable. It is a precision measurement component engineered to maintain electrical stability in the most demanding industrial environments on the planet.

Vibration: Turbomachinery installations subject cabling to continuous broadband vibration. The 330103-series cable uses a multi-strand center conductor and a double-shielded construction that resists work-hardening and conductor fatigue over years of continuous service. The factory-terminated connectors are crimped and soldered — not just crimped — to maintain mechanical integrity under cyclic loading.

Temperature: In hot-section installations near gas turbine casings or steam turbine bearing pedestals, ambient temperatures can exceed 70°C continuously. The cable jacket compound is rated for sustained high-temperature exposure without plasticizer migration or jacket cracking — failures that compromise the shield integrity and introduce noise into the measurement loop.

Chemical Exposure: Offshore platforms and petrochemical facilities expose cabling to hydrogen sulfide, hydrocarbon vapors, and cleaning solvents. The jacket material resists chemical attack from the fluids commonly encountered in these environments, preventing jacket swelling or embrittlement that leads to shield breach.

Moisture and Humidity: In tropical or coastal installations, humidity ingress into connectors is the leading cause of premature cable failure. The OEM connectors on the 330103-00-03-05-01-05 are designed with tight dielectric tolerances that resist capillary moisture ingress. For installations in particularly wet environments, apply Bently Nevada-approved connector sealant at both terminations after installation.

When you install a genuine 330103-00-03-05-01-05, you are restoring the measurement loop to its factory-calibrated state. A generic substitute may appear to work initially — but the impedance mismatch will introduce a systematic error into your gap voltage reading that grows with temperature. You will not catch it until a bearing fails and the alarm never fired.

Global Express Logistics

We operate from our Xiamen warehouse, positioned for rapid export to every major industrial hub worldwide. When a machine is down, lead time is the only metric that matters.

Standard Export Process:

• Order confirmation to dispatch: Same business day for in-stock items confirmed before 14:00 CST.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared in parallel with packing — no delays waiting for paperwork.
• Carrier options: DHL Express (1–3 business days to most destinations), FedEx International Priority (1–3 business days), TNT Economy Express (3–5 business days for cost-sensitive shipments).
• Customs classification: HS Code pre-declared for smooth customs clearance. We have shipped to refineries in the Middle East, power plants in Southeast Asia, and offshore platforms in West Africa — we know the documentation requirements.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your procurement contact.
• Packaging: Anti-static bag, foam-lined rigid carton, moisture-desiccant pack. The cable arrives in the same condition it left our warehouse.

For plant shutdowns with a hard restart deadline, contact us on WhatsApp for real-time coordination. We have arranged same-day courier handoffs and airport-to-airport freight for critical outages. Tell us your deadline — we will tell you if we can meet it.
